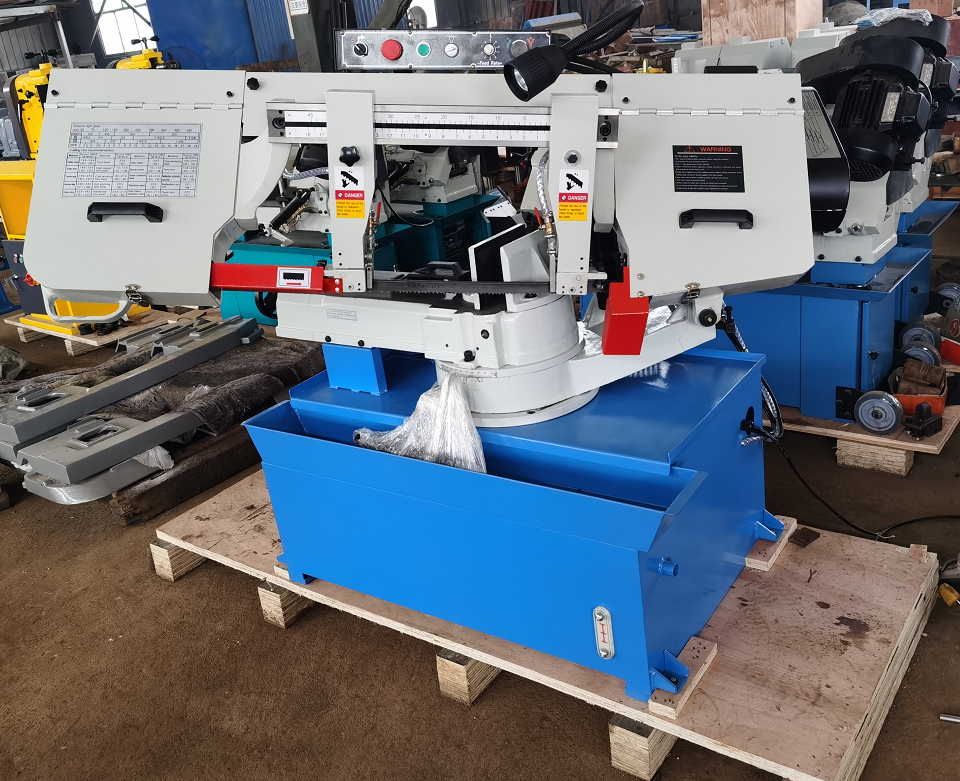

BS-1018R Hydraulic Metal Cutting Band Saw, Horizontal Band Saw 10"
The maximum processing capability is 10".
10" band saw features a belt drive and has four cutting speeds.
Both the saw bow of 1018R can rotate from 0° to 45°.
The bow can be rotated, which can cut 30°,45°,60°,90° .
10" band saw has the advantage of quick clamping. The falling speed of the saw bow is controlled by a hydraulic cylinder.
The cooling system of our 10" band saw can prolong the service life of the saw blade and improve the precision of the workpiece.
10" band saw has a sizing device (the machine will automatically stop after sawing the materials).
10" band saw has a power break protection device (the machine will automatically power off when the rear protective cover is opened).
10" band saw is equipped with a block feeder (with fixed sawing length).
vario speed can be choose
Technical specifications
Model | BS-1018R | |
Capacity | Circular @90o | 254mm (10") |
Rectangular @90o | 160X406mm (6.3"x16") | |
Circular @ 45o | 170mm (6.7") | |
Rectangular @ 45o | 160x190mm(6.3"x7.5") | |
Blade speed | @60HZ | 35,60,88,115 MPM |
@50HZ | 26,50,73,95MPM | |
Blade size | 27x0.9x3215mm 4/6 TPI | |
Motor | 1.5KW 2 Horse Power(1PH) | |
Drive | V-belt | |
Packing Size | 72"x34"x46" IN | |
N.W./G.W. | 795/995LB |
