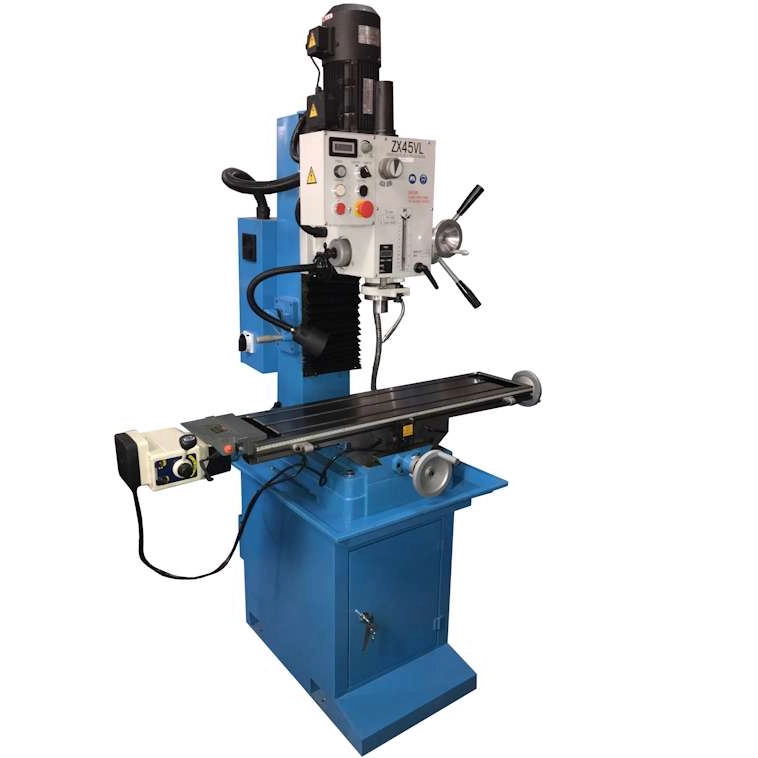

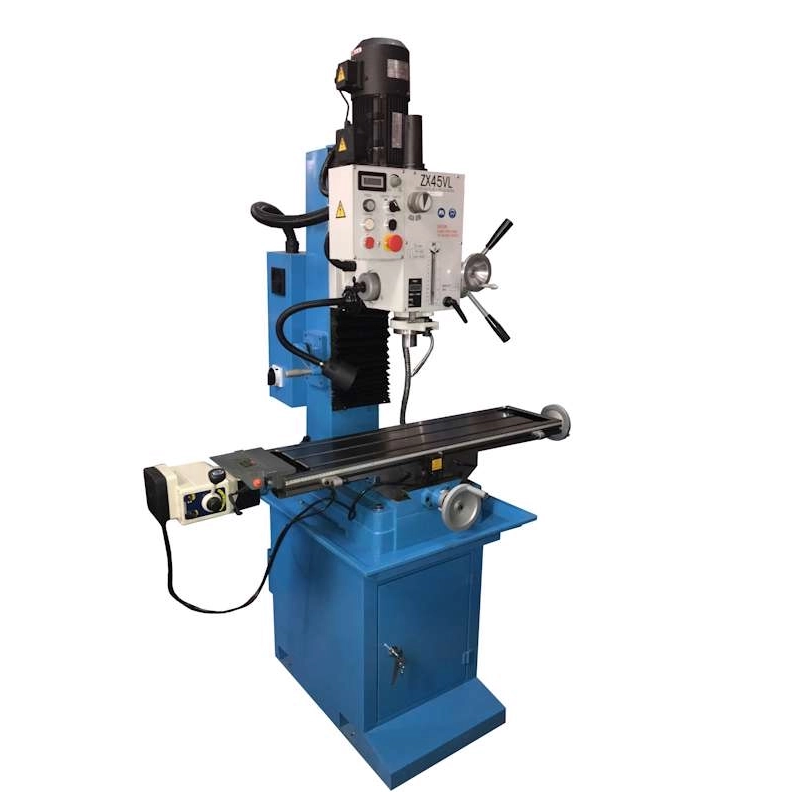

1000 MM WORKTABLE VARIO DRILLING AND MILLING MACHINE ZX45VL

Quantity:

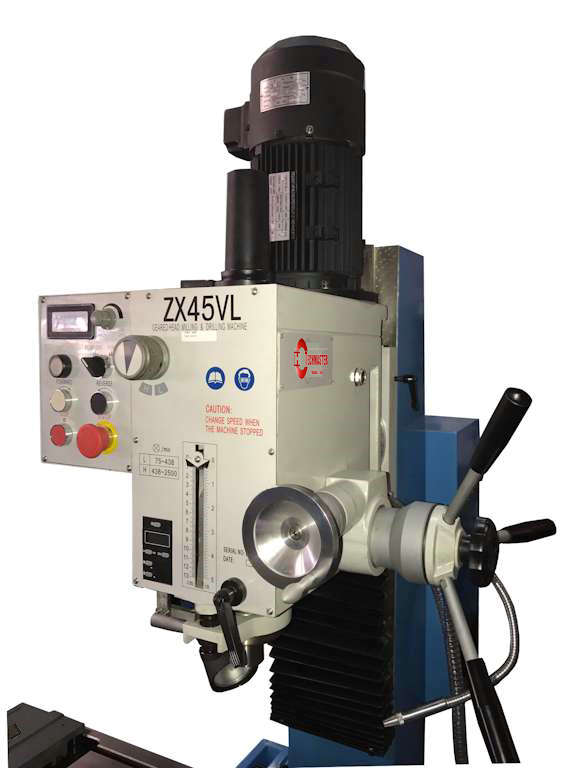

Variable Head (AC Drive)
Z-axis Digital Display


Bed
Bed size: 1000 x 240mm
Bed travel: 760mm
Cross travel: 230mm
Approx max workpiece weight: 120kg


Spindle
Spindle taper: R8
Max spindle to table distance: 450mm
Drilling: 32mm
Spindle travel: 120mm
Spindle speed: 60~1600rpm
Spindle motor: 2HP
Head tilt: ±90°
380V / 220V


Weight & Dimensions
Dimensions: 1200 x 860 x 1800(LxWxH)
Weight: 320kg


Standard Accessories:
Sheetmetal base
Coolant system
Worklight
Drawbar
Drill chuck + arbor
Drill Sleeve R8-MT3
Drill Sleeve MT3-MT2
1 x Powerfeed
