25UM

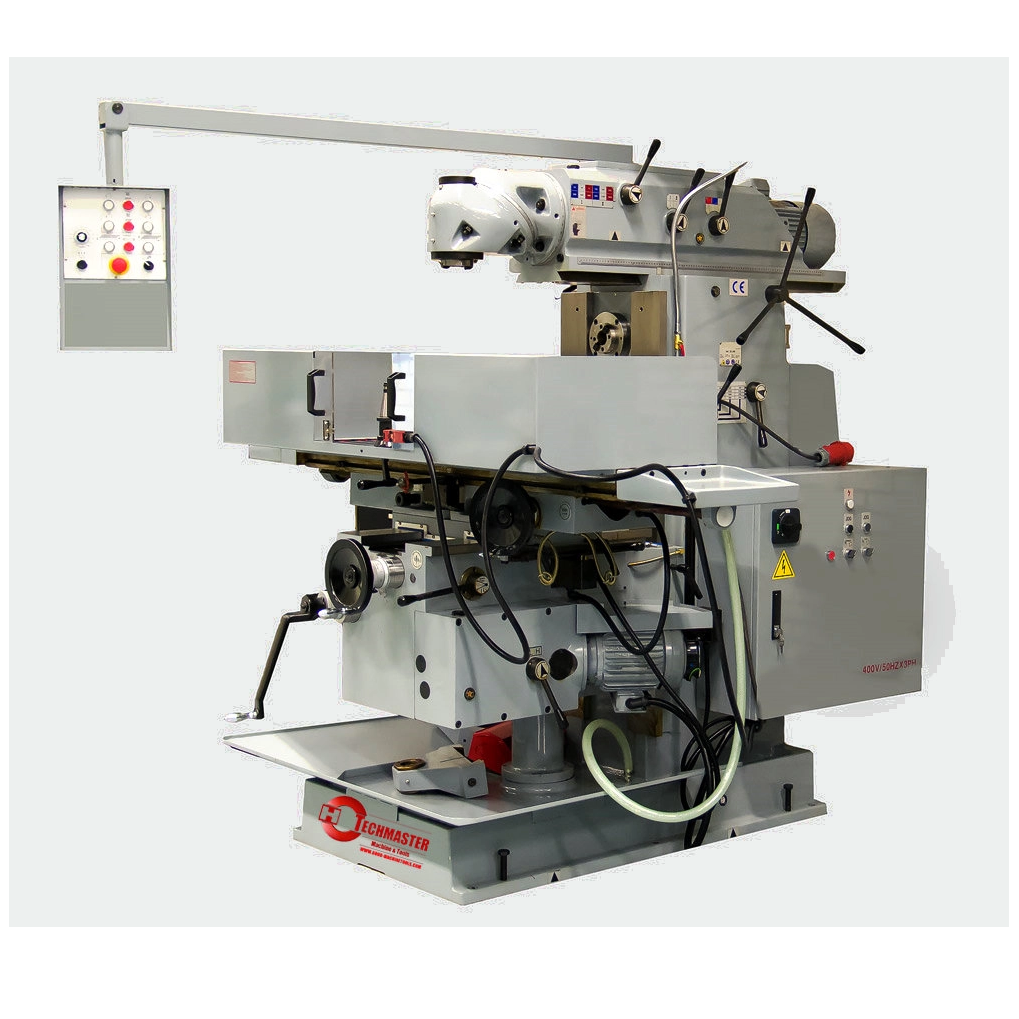

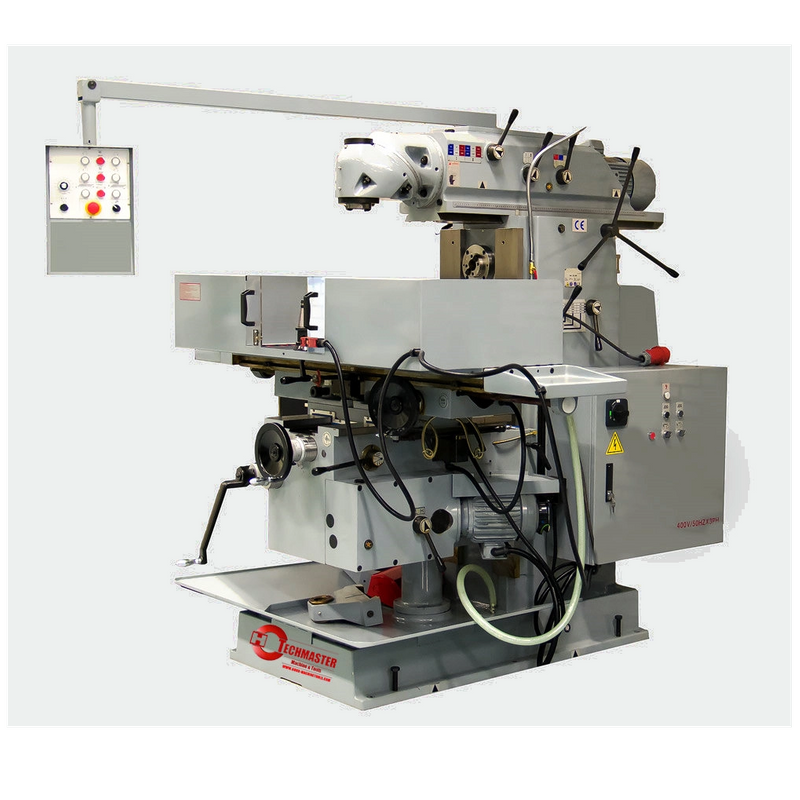

Quantity: High quality industrial horizontal milling machine equipped with Huron 3D head. Suited for horizontal and vertical milling work. The machine has automatic feed and rapid traverse on all directions.
- block guides
- table tiltable 2 x 45 degrees
- all guide ways hardened and ground
- automatic feed on all axis
- pneumatic tool draw bar (opt)
- control panel
Spindle taper DIN 2080 ISO40 / ISO50 Speed vertical spindle 35 - 1600 (12) rpm Speed range horizontal spindle 40 - 1800 (12) rpm Motor power vertical 5,5 kW Upper arm travel 155 mm Longitudinal table travel X-1150, Y-400, Z-500 mm Head movement 45 ° L/R Rapid travel X,Y- 1208, Z-604 mm/min T-slots number/dimensions 5 x 16 mm Max. weight work piece 600 kg Table size 1500x350 lxw Dimensions machine w x h x d 1840 x 2270 x 2270 mm Net weight 3200 kg Voltage 400 V
High quality industrial horizontal milling machine equipped with Huron 3D head. Suited for horizontal and vertical milling work. The machine has automatic feed and rapid traverse on all directions.
- block guides
- table tiltable 2 x 45 degrees
- all guide ways hardened and ground
- automatic feed on all axis
- pneumatic tool draw bar (opt)
- control panel
Spindle taper DIN 2080 ISO40 / ISO50 Speed vertical spindle 35 - 1600 (12) rpm Speed range horizontal spindle 40 - 1800 (12) rpm Motor power vertical 5,5 kW Upper arm travel 155 mm Longitudinal table travel X-1150, Y-400, Z-500 mm Head movement 45 ° L/R Rapid travel X,Y- 1208, Z-604 mm/min T-slots number/dimensions 5 x 16 mm Max. weight work piece 600 kg Table size 1500x350 lxw Dimensions machine w x h x d 1840 x 2270 x 2270 mm Net weight 3200 kg Voltage 400 V
