2M6420 Universal Cutting Tool Sharpening Machine
Use:
Ampoule indented cutter grinding
End mill grinding
Side cutter grinding
T grooved mill grinding
Serrated mill grinding
Screwtap grinding
Hobbing cutter grinding
Single-angular mill grinding
Twist drill grinding
Full back cutter grinding
Side set mill grinding
Cylindrical mill grinding
Lathe tool grinding
Reamer grinding
Pinion cutter grinding

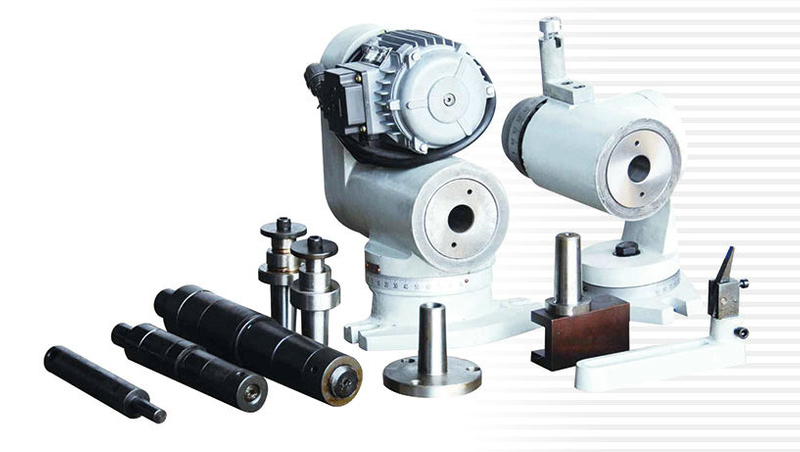

Standard Accessories
Left and right poppet head
Stop dog
Grinding wheel
Common tool
Optional Accessories
Electroidynamic head support
Spiral head
Lathe tool jig
Adjustable apex
Three-jaw chuck (with stem)
Step stem
Stem 16, 22, 27, 32
Specifications | |
Width of Worktable | 160mm |
Moving range of worktable (leftwards and rightwards) | 180mm |
Moving range of worktable (forwards and backwards) | 125mm |
Vertically moving range of grinding wheel | 120mm |
Rotating angle of grinding wheel | +450-600 |
Vertical angle of bank of grinding wheel | +450 |
Gyration of vertical column | +450 |
Max. diameter of grinding wheel | Φ125mm |
Motor of grinding wheel | 370w, 2800r/s |
Configuration of machine tool (L x W x H) | 750 x 520 x 600 (mm) |
Weight of key station | 166kg |
