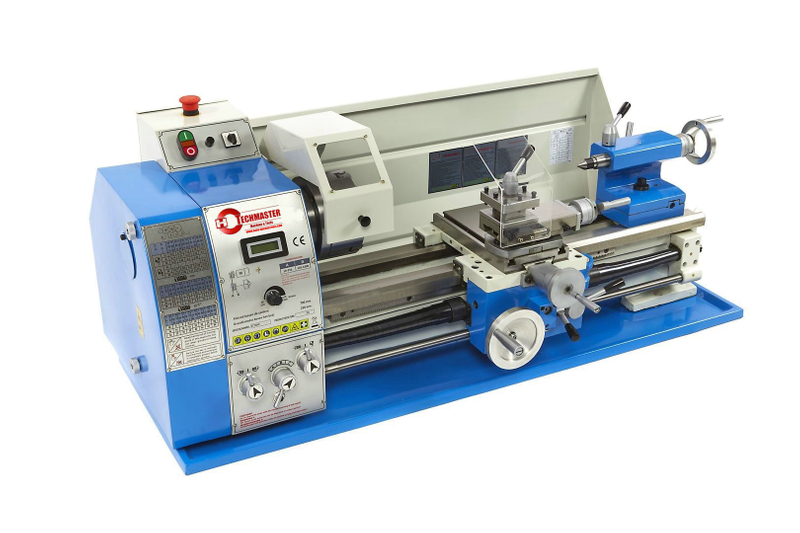

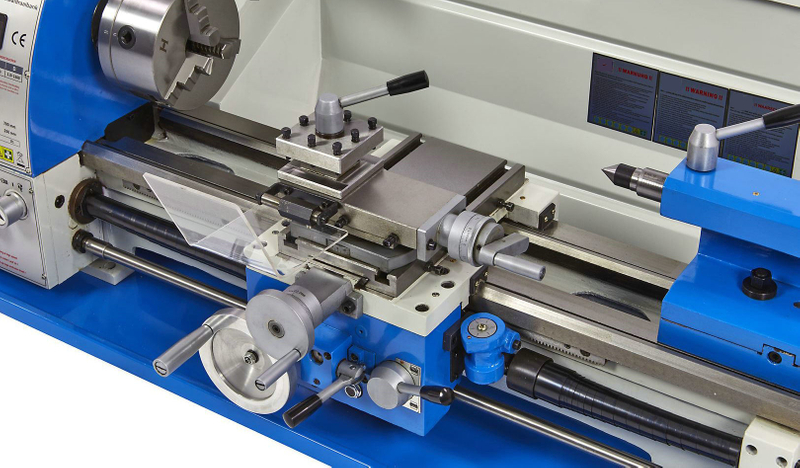

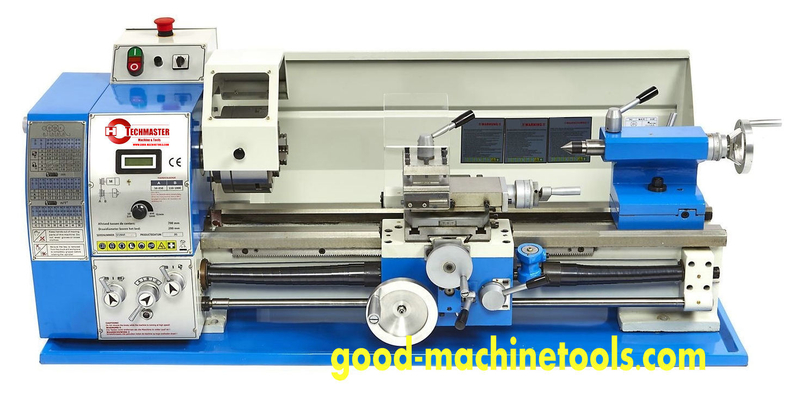

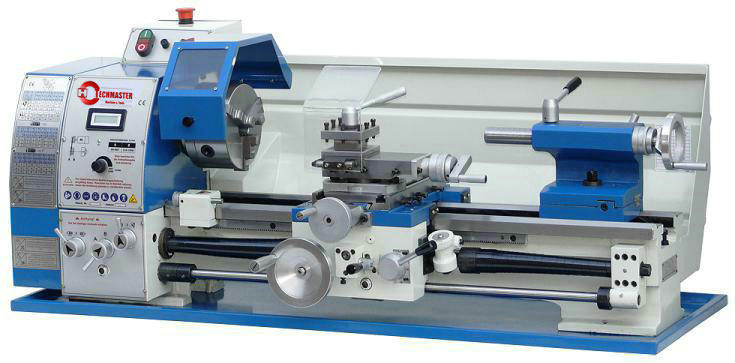

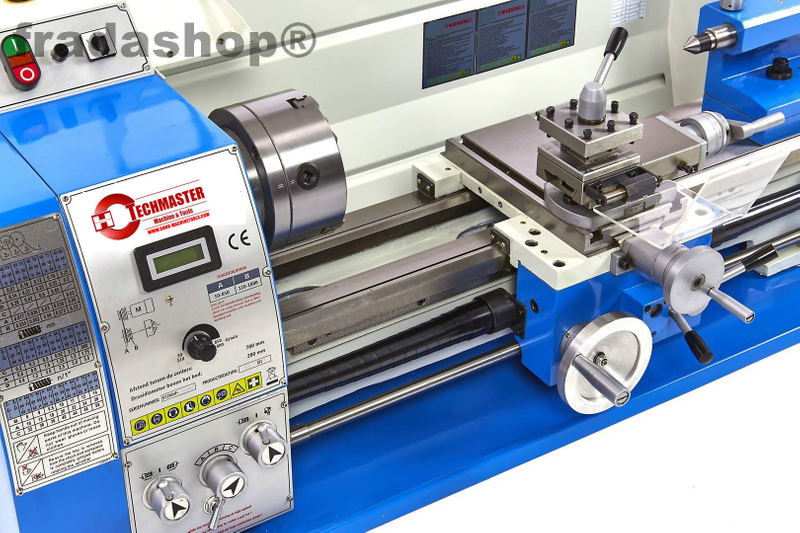

38MM SPINDLE HOLE D290VF ( DC MOTOR STYLE)

Quantity:
  • D290GVX700MM



The vario turning lathe  is manufactured according to highest quality standards and precision. The ergonomically located digital display offers easy reading of the electronic speed adjustment. Special feature of this model include the large longitudinal feed with 14 settings and the cross feed. To reduce non-productive time the machine is also available with a 2-axis digital readout.

Features

  • Electronically adjustable, stepless speed setting comes standard
  • Comes complete with feed rod for automatic longitudinal and cross feed
  • Temperature monitoring incl. warning light protect motor against overload
  • Standard 38 mm spindle bore
  • High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.009mm)
  • Solid machine bed with inductive hardened and polished guideways
  • Features ledscrew for thread cutting
  • Top support can be adjusted in x-axis
  • User-friendly arrangement of control elements
  • Powerful motor, even at longer operation
  • Tailstock adjustable for taper turning
  • Guideways adjustable via gibs



Standard accessories:

  • 3-jaw chuck DK11-160 mm
  • Flange 160 mm
  • Dead center
  • Change gears
  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Cross slide with top support
  • Digital speed indication
  • Thread dial
  • Chuck guard
  • Splash guard
  • Spindle cover
  • Tools



   MODEL
D290VF
 Distance between centers
700 mm
 Swing over bed
280 mm
 Swing over cross slide
165 mm
 Width of bed
180 mm
 Taper of spindle bore
MT5
 Spindle bore
38 mm
 Number of spindle speeds
Variabl Speede
 Range of spindle speeds
50-2000 rpm

 Range of cross feeds

0.02-0.28 mm/r
 Range of longitudinal feeds
0.07-0.40 mm/r
 Range of inch threads
8-56 T.P.I
 Range of metric threads
0.2-3.5 mm
 Top slide travel
50 mm
 Cross slide travel
140 mm
 Tailstock quill travel
80 mm
 Taper of tailstock quill
MT3
 Motor
1.1 kw (DC)
 Packing size
1400x700x680 mm
 Net weight
230 kg
