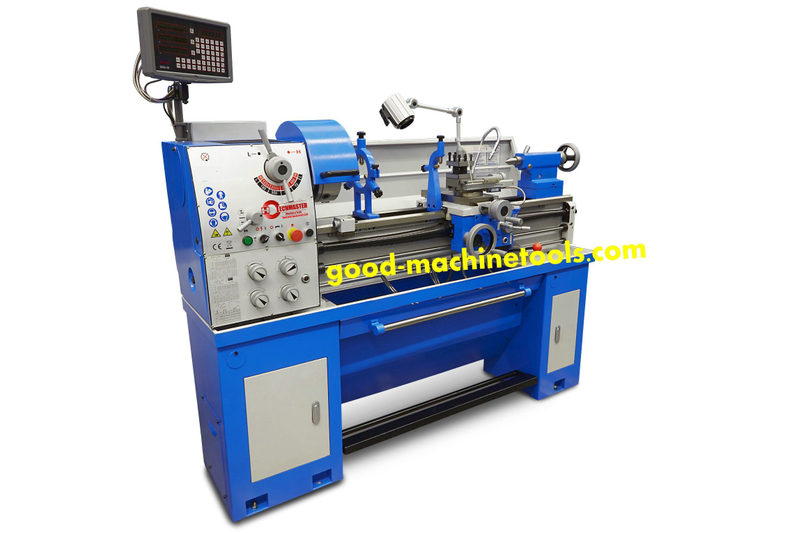

52 MM SPIDNEL HOLE D380X1000 Profi
规格: Quantity: -
D380X1000 Profi
-
属性值
FEATURES
52 mm spindle bore to machine large shaft diameters comes standard
Perfect machine for technical schools, repair shops and training workshops
Ideal for processing of steel, non-ferrous materials and plastics
Removeable bridge allows machining of workpieces with a big diameter
Chip tray extracts to front, keeping space requirements to a minimum

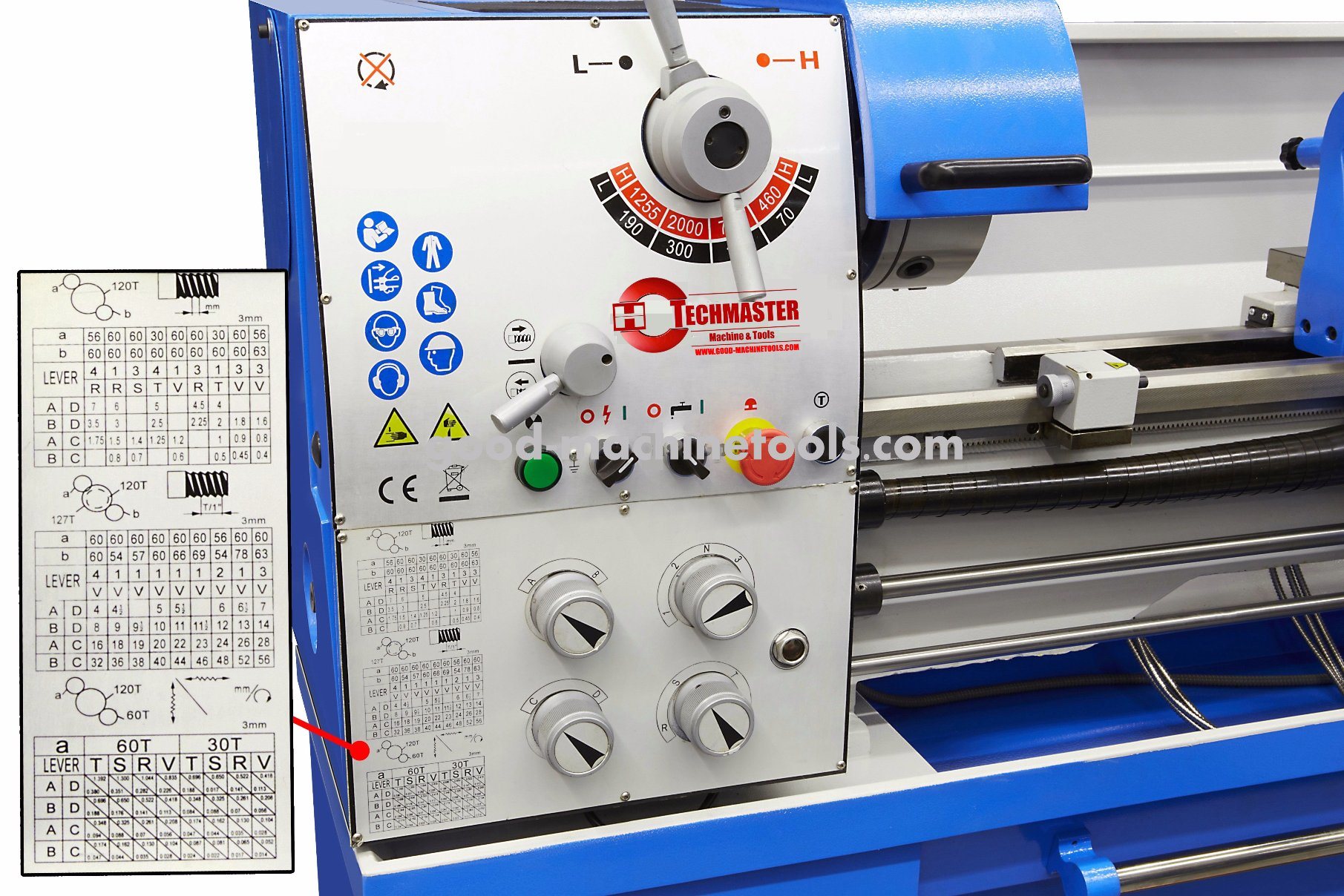

Clear arranged speed and feed control settings, smooth operation and accurate control
Electro-magnetic foot brake reduces downtime
State-of-the-art spindle bedding with high-quality, angular ball bearings
Grey cast-iron machine bed, inductive hardened and polished
One-hand clamping for tailstock, adjustable for taper turning
High spindle concentricity (≤ 0,009 mm)
Hardened and polished spindle runs in oil bath
Tailstock, spindle stock and all guides are adjustable
Standard accessories:
3-axis digital readout

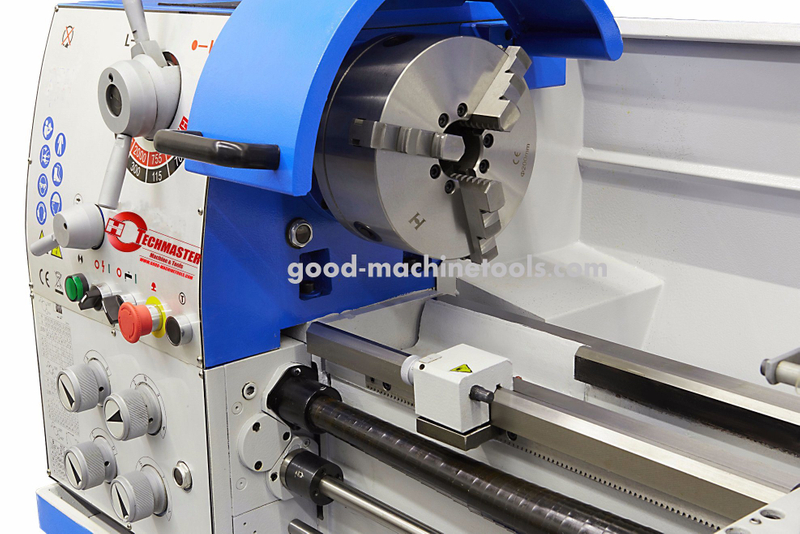

3-jaw chuck DK11-200 mm / D5
Independent chuck K72-200 mm / D5
Steady rest - Passage up to max. 70 mm
Follow rest - Passage up to max. 50 mm
Coolant device
Initial filling with Shell Tellus 46
Extractable chip tray
Face plate 320 mm
4-way tool post holder
Protective cover at 4-way tool post holder
Safety clutch
Micrometer longitudinal fence
Thread dialGewindeuhr
LED machine light
Morse taper drill sleeve
Change gears
2 dead centers
Foot pedal with brake function according to CE
Motor with magnetic brake according to CE
Stand with drawers
Tools
Distance between centers 1000 mm Center height 190 mm Swing over bed 380 mm Swing over gap* 490 mm Swing over cross slide 220 mm Bed width 185 mm Spindle bore 50 mm Spindle nose fixture DIN 55029, D1-5 Speed range (8) 70 - 2000 rpm Longitudinal feed (32) 0,052 - 1,392 mm/rev. Cross feed (32) 0,014 - 0,380 mm/rev. Metric thread (26) 0,4 - 7,0 mm Inch thread (34) 4 - 56 threads/1" Diameter of tailstock sleeve 42 mm Travel of tailstock sleeve 120 mm Taper of tailstock sleeve MT 4 Motor power output S1 100% 1,5 kW (400 V) Motor power input S6 40% 2,2 kW (400 V) Machine dimension (W x D x H) 1920 x 800 x 1660 mm Weight approx. 575 kg
