52MM ECONOMIC HEAVY DUTY LATHE CH6250-F SERIES
You are here: Home » Products » TURNING » HEAVY DUTY HORIZONTAL LATHE » 52MM ECONOMIC HEAVY DUTY LATHE CH6250-F SERIES
Share to:

52MM ECONOMIC HEAVY DUTY LATHE CH6250-F SERIES

Quantity:

PRODUCT FEATURES


*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.

*GEARS PRECISELY GROUND TO REDUCE NOISE.

*SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.

*RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.


DIFFERENCE BETWEEN CH AND CHF SERIE


*THE FEED BOXES OF THE TWO MODLE ARE DIFFERENCE.

*CH SERIES NEED CHANGE GEARS AND THE CHF SERIES DON'T NEED IN THREAD MACHINING.

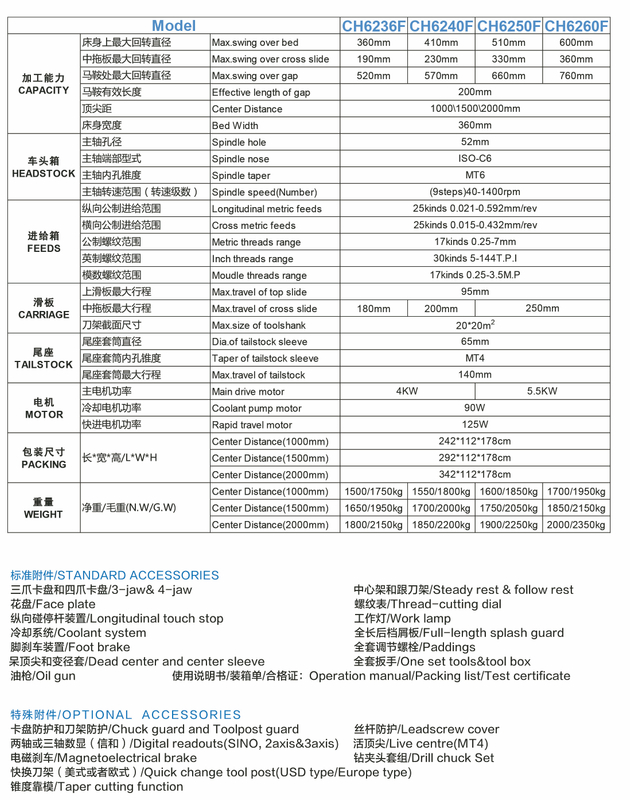

ModelC6236HC6240HC6250HC6260H
CH6236FCH6240FCH6250FCH6260F
CAPACITYMax.swing over bed360mm400mm500mm600mm
Max.swing over cross slide190mm230mm330mm330mm
Max.swing over gap520mm560mm660mm760mm
Effective length of gap200mm
Center Distance750\1000\1500\2000mm
Bed Width360mm
HEADSTOCKSpindle hole52mm
Spindle noseISO-C6
Spindle taperMT6
Spindle speed(Number)(9steps)40-1400rpm
FEEDSLongitudinal feeds range0.0832-4.66mm/r
Cross feeds range0.048-2.69mm/r
Metric threads range19kinds 0.25-14mm
Inch threads range49kinds 2-40inch
Moudle threads range11kinds 0.5-3.5mπ
CARRIAGEMax.travel of top slide95mm
Max.travel of cross slide180mm200mm250mm250mm
Max.size of toolshank20*20mm2
TAILSTOCKDia.of tailstock sleeve65mm
Taper of tailstock sleeveMT4
Max.travel of tailstock140mm
MOTORMain drive motor4KW5.5KW7.5KW

Coolant pump motor125W
PACKING
L*W*H
Center Distance(750mm)225*115*175cm
Center Distance(1000mm)245*115*175cm
Center Distance(1500mm)295*115*175cm
Center Distance(2000mm)345*115*175cm
N.W/G.WCenter Distance(750mm)1350/1750kg1400/1800kg1500/1900kg1600/2000kg
Center Distance(1000mm)1450/1850kg1500/1900kg1600/2000kg1700/2100kg
Center Distance(1500mm)1600/2000kg1650/2050kg1750/2150kg1900/2300kg
Center Distance(2000mm)1750/2150kg1800/2200kg1900/2300kg2050/2450kg
***STANDARD ACCESSORIES
3-jaw & 4-jaw
Steady rest & follow rest
Face plate
Drive plate
Thread-cutting dial
Longitudinal touch stop
Work lamp
Coolant system
Full-length splash guard
Foot brake and brake ribbon
Change gears
Dead centre and centre sleeve
Oil gun
Paddings
One whole set spanner
***OPTIONAL ACCESSORIES
Rapid travel
Live centre
Digital readouts(SINO)
CE-conformity(Chuck guard and Toolpost guard)
Magnetoelectrical brake
Taper cutting function
