52MM SPINDEL HOLE C0636B/1000

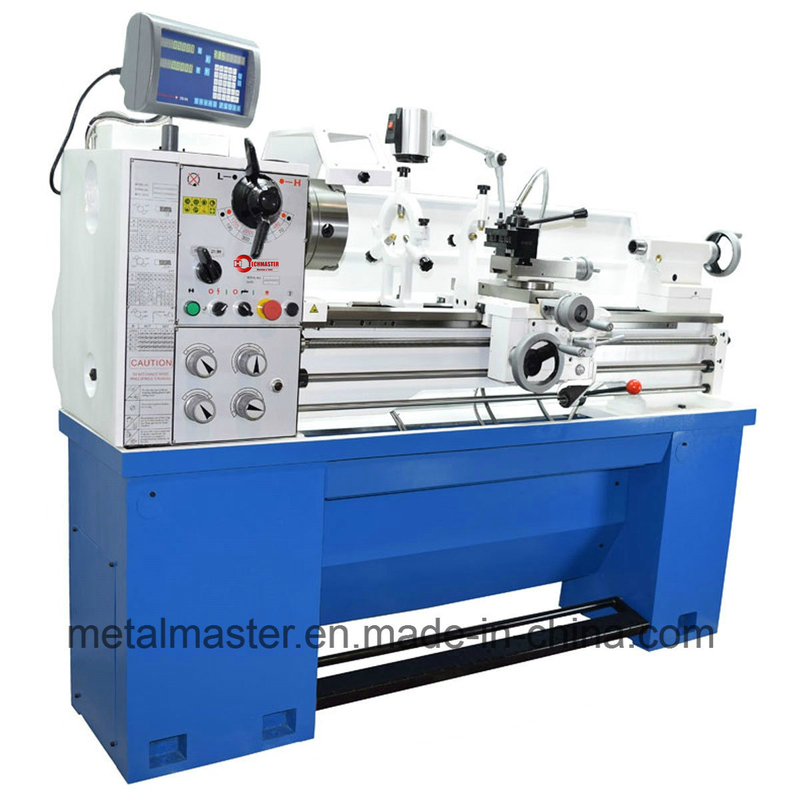

Quantity: Big hole and Gear-Headed Engine Lathe C0636B
The lathe is a state of the art machine. The high user-friendliness makes this model popular for training purposes and schools.
Compact but solid machine with lead screw and feed rod
Cast-iron, V-block guide, inductive hardened and precisely polished
Wide range of applications - training workshops, tool shops, production etc.
Bridge can be removed to machine work pieces with large diameter
Electro-mechanic foot brake clearly reduces downtime
Clearly arranged, user-friendly speed and feed adjustment
One-hand clamping for tailstock, adjustable for taper turning
Hardened and polished gears and shafts in gear head
High spindle centricity (≤ 0, 009 mm)
Hardened and polished spindle runs in oil bath
51 mm spindle bore to machine large shaft diameters comes standard
Standard accessories:
3-jaw chuck 200 mm / D5
Independent chuck K72-200 mm / D5
Steady rest
Follow rest
Independent chuck 255 mm
4-way tool post holder
Coolant device
Foot brake
Thread dial
Halogen light
Morse taper drill sleeve
Change gears
2 dead center
Chip tray
Splash guard
Stand
Tools
Model C0632Bx1000 C0636Bx1000 Max. swing over bed 330MM 356MM Max. swing over cross slide 198MM 224MM Max. swing in gap 450MM 476MM Max. distance between centers 1000MM 1000MM Spindle bore 51MM 51MM Taper of spindle bore M. T. #6 M. T. #6 Range of spindle speed 70~2000RPM
40-1800RPM(OPTIONAL)70~2000RPM
40-1800RPM(OPTIONAL)Range of longitudinal feeds 0.078~1.044MM/REV 0.078~1.044MM/REV Range of cross feeds 0.022~0.298MM/REV 0.022~0.298MM/REV Range of metric threads 0.45~10MM 0.45~10MM Range of inch threads 21/4~40TPI 21/4~40TPI Max. size of tool shank 20x20MM 20x20MM Taper of tailstock bore M. T. #4 M. T. #4 Power of main motor 1.5KW
2.2KW(OPTIONAL)1.5KW
2.2KW(OPTIONAL)
