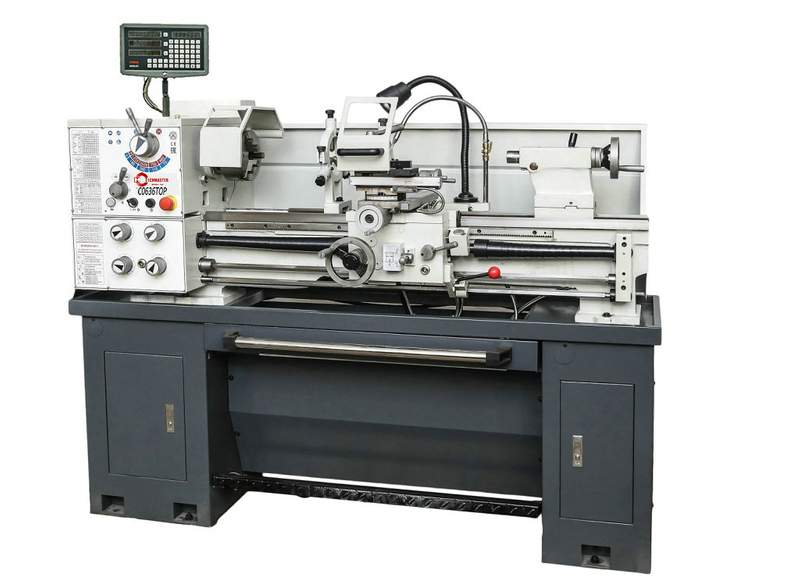

52MM SPINDEL HOLE C0636TOP

Quantity:
  • C0636TOP

Description

Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning.WMT BRAND bench lathe C0636B will offer you  perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.

Specification

Specification C0636TOP×1000mm
Swing over bed Φ360mm
Swing over cross slide Φ212mm
Swing over gap Φ491mm
Distance between centers 1000mm
Bed width 187mm
Spindle bore and nose Φ52mm / D1-5 camlock
Spindle taper MT5
Speeds number 8 or 16(pole changeable motor:optional)
Speeds range 70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread 8 TPI or 3mm pitch
Cutting tool max section 16×16mm
Threads imperial pitches 36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches 28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial 36Nos. 0.0019-0.0273″/Rev or (32 Nos. 0.002-0.548″/Rev)
Longitudinal feeds metric 36Nos. 0.050-0.696″/Rev or (32 Nos. 0.052-0.392″/Rev)
Cross feeds imperial 36Nos.0.0006-0.0094″/Rev or (32 Nos. 0.007-0.0187″/Rev)
Cross feeds metric 36Nos. 0.013-0.188″/Rev or (32 Nos. 0.014-0.380″/Rev)
Tailstock sleeve taper and travel MT3 100mm
Main motor 1.5kw/3 PH or 1 PH
Cross slide travel 118mm
Compoud rest travel 68mm
Net /Gross weight 650/700kgs
Packing size 1940 X 750 X 1510mm

Main Features

  • Precision ground and hardened bed ways.
  • The spindle is supported with precision roller bearings.
  • Headstock gears are made of high quality steel, ground and hardened.
  • Easy operating speed change levers.
  • Removable gap is provided for larger diameter work.
  • Easy operating gear box has various feeds and thread cutting function.
