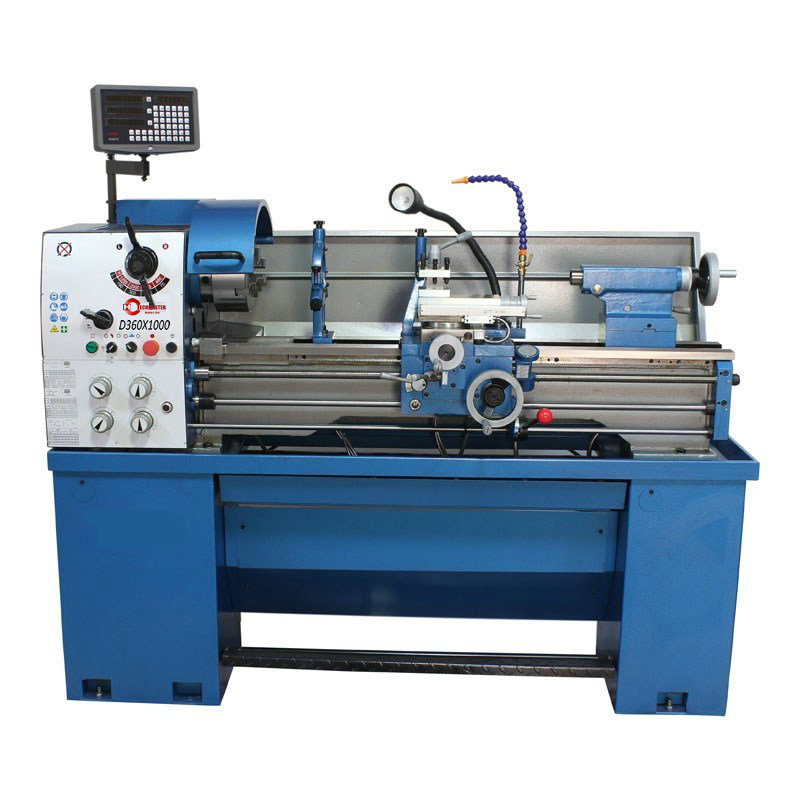

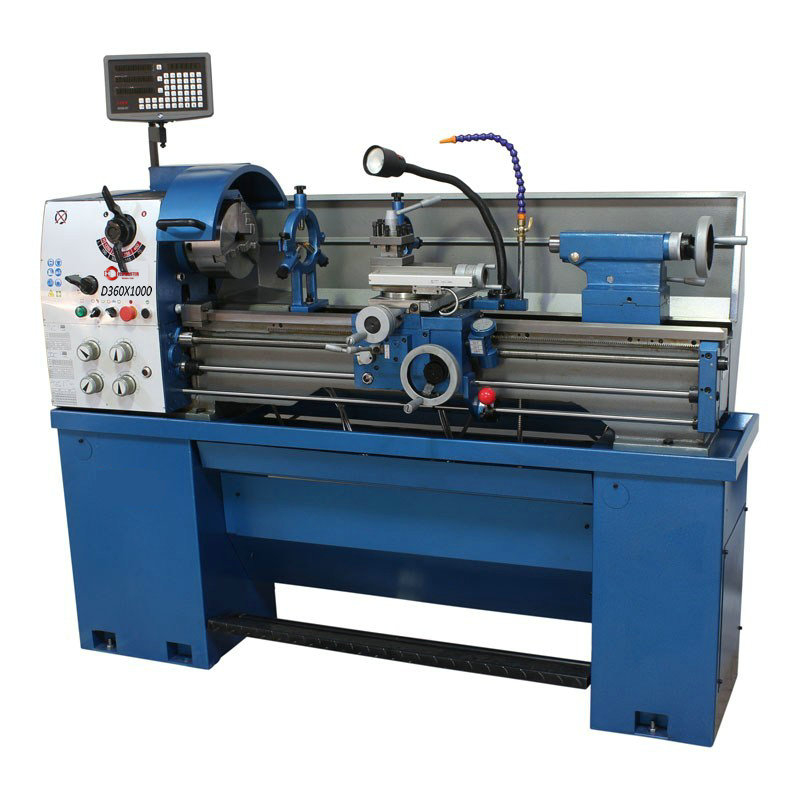

52MM SPINDLE HOLE D360 X1000 Profi
Quantity: -
D360 x 1000 Profi
Precision lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standard
Properties
· 51 mm spindle bore to machine large shaft diameters comes standard
· Perfect machine for technical schools, repair shops and training workshops
· Ideal for processing of steel, non-ferrous materials and plastics
· Removeable bridge allows machining of workpieces with a big diameter
· Chip tray extracts to front, keeping space requirements to a minimum
· Clear arranged speed and feed control settings, smooth operation and accurate control
· Electro-magnetic foot brake reduces downtime
· State-of-the-art spindle bedding with high-quality, angular ball bearings
· Grey cast-iron machine bed, inductive hardened and polished
· One-hand clamping for tailstock, adjustable for taper turning
· High spindle concentricity (≤ 0,009 mm)
· Hardened and polished spindle runs in oil bath
· Tailstock, spindle stock and all guides are adjustable
D360X1000 52MM SPINDLE HOLE
Distance between centers 1000 mm Center height 180 mm Swing over bed 360 mm Swing over gap* 480 mm Swing over cross slide 220 mm Bed width 185 mm Spindle bore 51 mm Spindle nose fixture DIN 55029, D1-5 Speed range (8) 70 - 2000 rpm Longitudinal feed (32) 0,052 - 1,392 mm/rev. Cross feed (32) 0,014 - 0,380 mm/rev. Metric thread (26) 0,4 - 7,0 mm Inch thread (34) 4 - 56 threads/1" Diameter of tailstock sleeve 42 mm Travel of tailstock sleeve 110 mm Taper of tailstock sleeve MT 4 Motor power output S1 100% 1,5 kW (400 V) Motor power input S6 40% 2,2 kW (400 V) Machine dimension (W x D x H) 1920 x 750 x 1600 mm Weight approx. 540 kg
Standard accessories
· 3-axis digital readout i200 with LCD-display
· 3-jaw chuck DK11-200 mm / D5
· Independent chuck K72-200 mm / D5
· Steady rest - Passage up to 70 mm
· Follow rest - Passage up to max. 50 mm
· Coolant device
· Extractable chip tray
· Face plate 320 mm
· 4-way tool post holder
· Protective cover at 4-way tool post holder
· Safety clutch
· Micrometer longitudinal fence
· Thread dialGewindeuhr
· LED machine light
· Morse taper drill sleeve
· Change gears
· 2 dead centers
· Foot pedal with brake function according to CE
· Motor with magnetic brake according to CE
· Stand
· Tools
