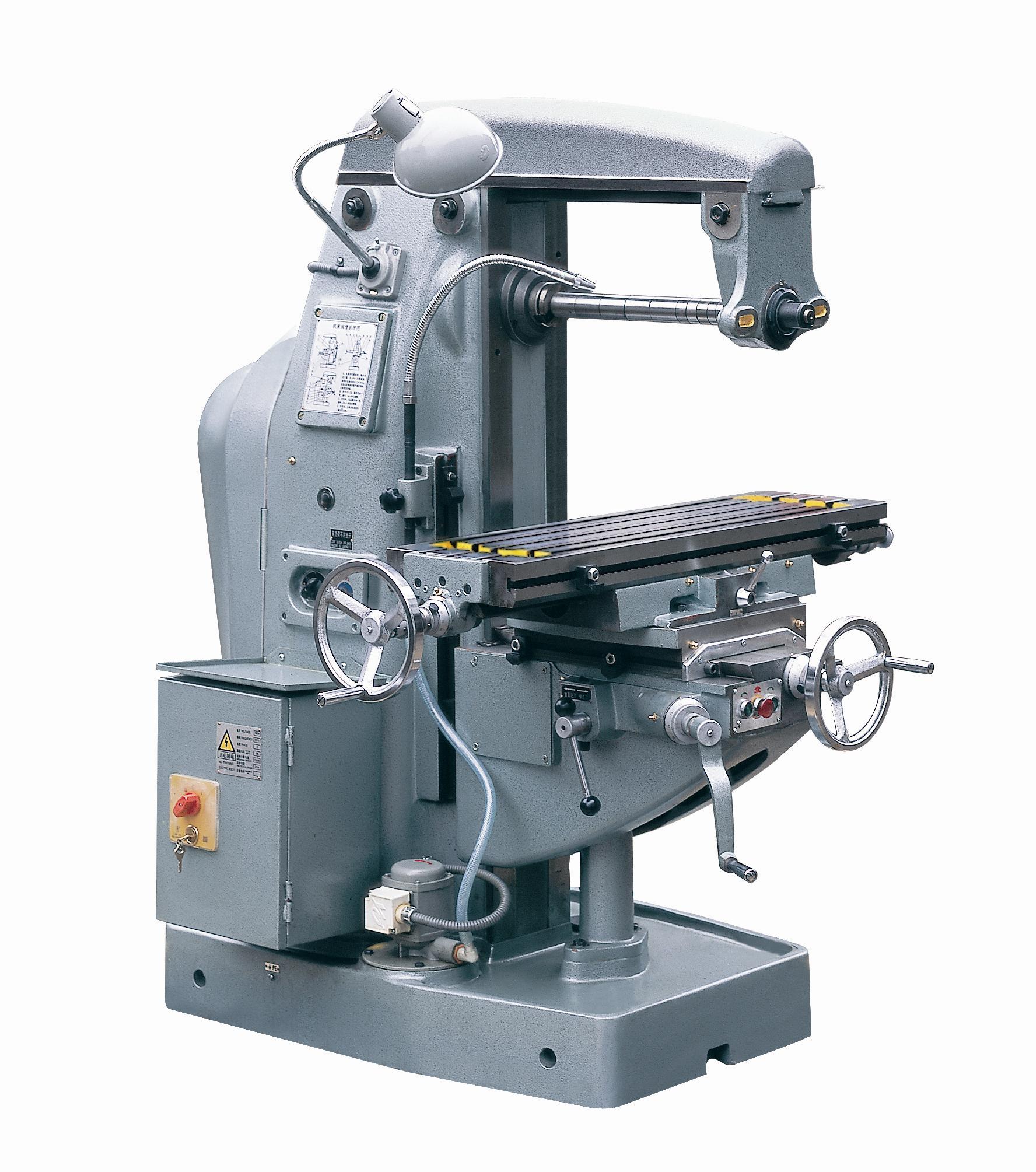

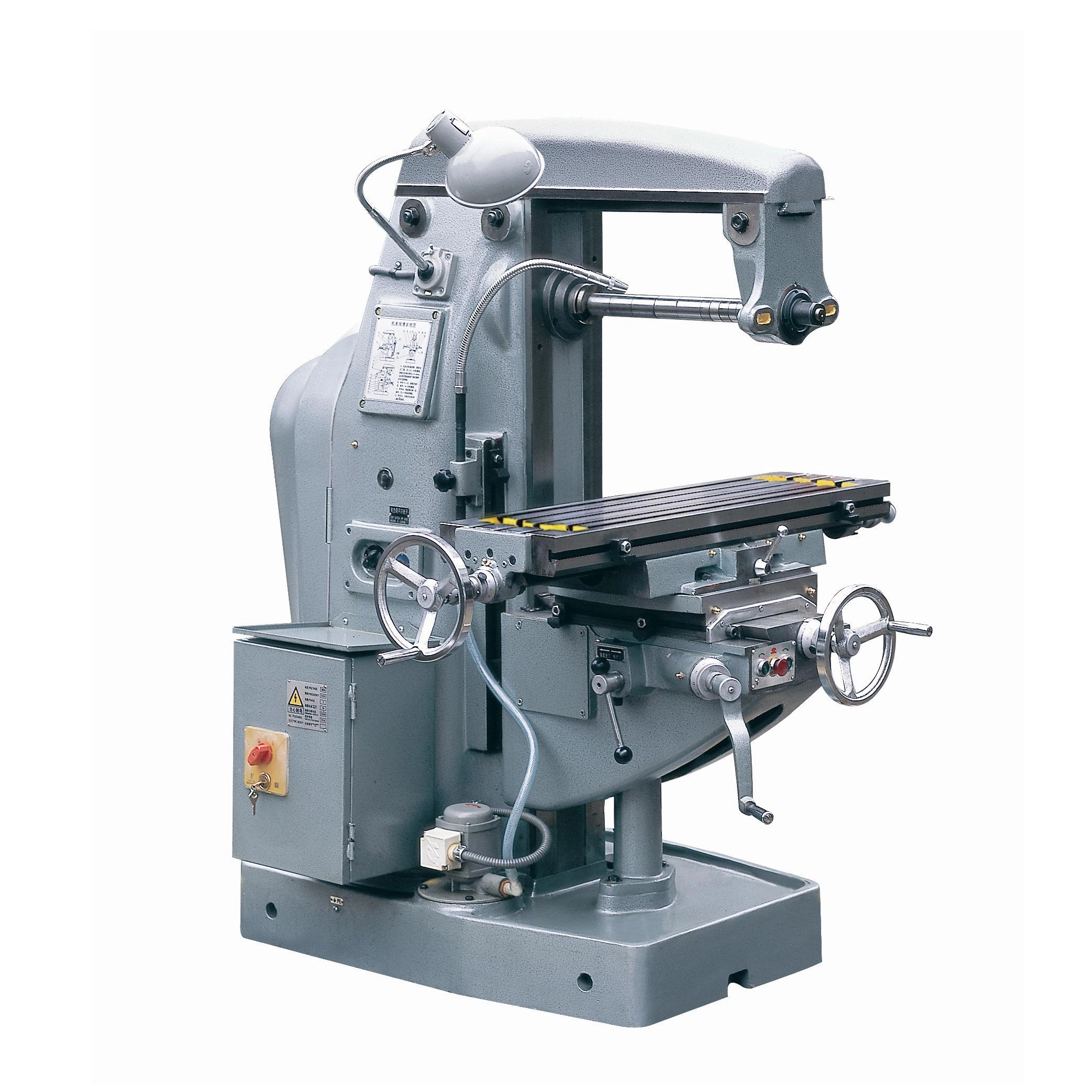

57-3D
♥Product Overview
☆57-3D universal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆The worktable can rotate ±45°and apply to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE | ITEM | DETAILS | |
1 | WORKTABLE（WIDTH×LENGTH） | mm | 250×900 |
2 | T SLOTS | mm | 3×14 |
3 | DISTANCE BETWEEN T SLOTS | mm | 654 |
TRAVEL | |||
4 | LONGITUDINAL TRAVEL X | mm | 500 |
5 | CROSS TRAVEL Y | mm | 165 |
6 | VERTICAL TRAVEL Z | mm | 300 |
SPINDLE | |||
7 | SPINDLE HOLE TAPER | Mt3 OR7:24, NO:30 | |
8 | SPINDLE SPEED STEPS | 12 | |
9 | SPINDLE SPEED RANGE | r/min | 32-1250 |
10 | ARBOR DIAMETER | mm | Φ22 φ27 |
FEED | |||
11 | FEED SPEED STEPS | 12 | |
12 | FEED SPEED RANGE:LONGITUDINAL X | mm/min | 5.6-181 |
13 | FEED SPEED RANGE:CROSS Y | mm/min | 11.3-366 |
14 | FEED SPEED RANGE:VERTICAL Z | mm/min | 4.5-146.2 |
POWER SOURCE | |||
15 | MAIN MOTOR POWER | kw | 2/2.4 |
16 | VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT) | V/hz | 380/50 |
OTHERS | |||
17 | DISTANCE FROM SPINDLE CENTER TO ARM | mm | 162 |
18 | DISTANCE FROM SPINDLE CENTER TO WORKTABLE SURFACE | mm | 60-360 |
19 | MACHINE DIMENSION | mm | 1400×1330×1478 |
20 | PACKAGE DIMENSION | mm | 1430×1440×1750 |
21 | MACHINE WEIGHT | kg | 1300 |
