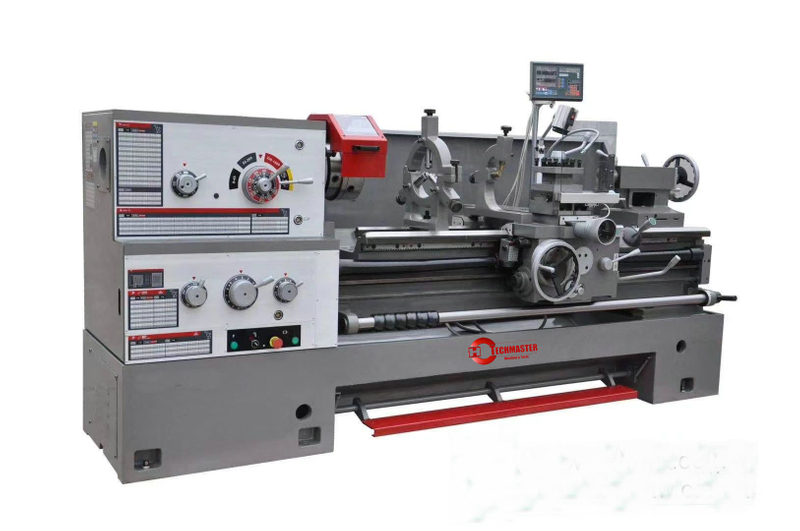

80MM BIG SPINDLE LOW SPEED CONVENTIONAL LATHEC6250B (SPEED 36-1600RPM)
Quantity: -
C6250BX1500/2000
C6250B High Precision Lathe / Lathe Machine / Metal Lathe / Engine Lathe / Bench Lathe / Precision lathe.
Big Bore Metal Cutting and Turning Conventional Lathe C6250b
Product Features:
1) 80mm bore spindle is supported by two tappered and one ball bearing.
2) Universal gearbox allows inch, metric, diametral, and module pitch threads.
3) Hardened and ground gears are featured in the headstock and gearbox.
4) Gap bed section provided for larger diameter work.
5) Large easy to use foot brake.
6) Chrome molybdenum headstock gears are hardened, ground, and shaved.

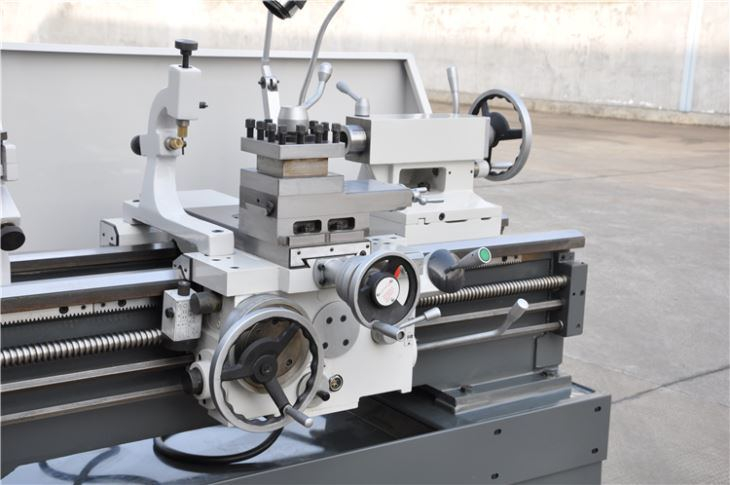

7) T-slotted compound slide featuring a 4-way tool post.
Technical Specification:MODELS C6250B C6266B CAPACITY Max.swing over bed Ф500mm Ф660mm Max.swing over carriage Ф310mm Ф420mm Max. swing over gap Ф720mm Ф870mm Max.length of workpiece 1000/ 1500/ 2000/ 3000mm SPINDLE Spindle bore Ф80mm Taper bore of spindle M.T.NO.7 Steps of spindle speed 24 Range of spindle speed 9~1600rpm FEED Range of longitudinal feeds 0.063~6.43 (0.0023″~0.2392″)mm Range of cross feeds 0.027~2.73(0.0010″~0.1016″)mm RAPID TRAVEL Longitudinal 4500mm/min Cross 1900mm/min THREAD CUTTING RANGE/ NUMBER Metric pitch threads 1~224mm/ 46 Inch threads 28~1/8 TPI/ 26 Module threads 0.5~112mm/ 42 D.P.Threads 56~1/4 DP/ 45 TAILSTOCK SLEEVE Taper bore M.T.NO.5 Max.travel 150mm External diameter Ф75mm OTHERS Size of tool shank 25×25mm Max travel of cross slide 340mm 360mm Max.travel of top slide 145mm Main motor power 7.5(10HP)kw Overall dimensions(L×W×H) (2500/3000/3500/4500)×900×1259mm (2500/3000/3500/4500)×1100×1450mm Net weight 2750/3000/3250/3600kg 3000/3200/3400/3900kg Standard Accessories:
250mm 3-jaw chuck Lubrication system
320mm 4-jaw chuck Coolant system
400mm face plate Foot break
4-way tool post Halogen work lamp

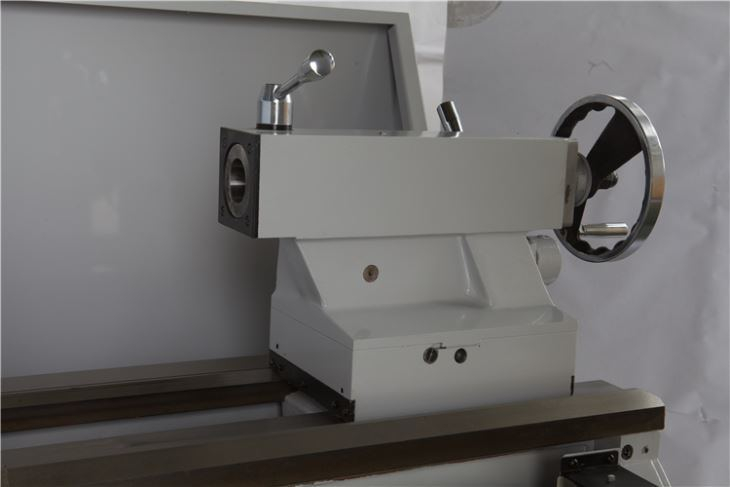

Manual tailstock Threading dial
Steady rest Spindle center, live center
Follow rest Tool box and adjusting tools
Optional Accessories:
Drive plate
Chuck cover
Tool post cover
Leadscrew cover
Tapper attachment
Quick change tool post
Digital readoutC6250B High Precision Lathe / Lathe Machine / Metal Lathe / Engine Lathe / Bench Lathe / Precision lathe.
