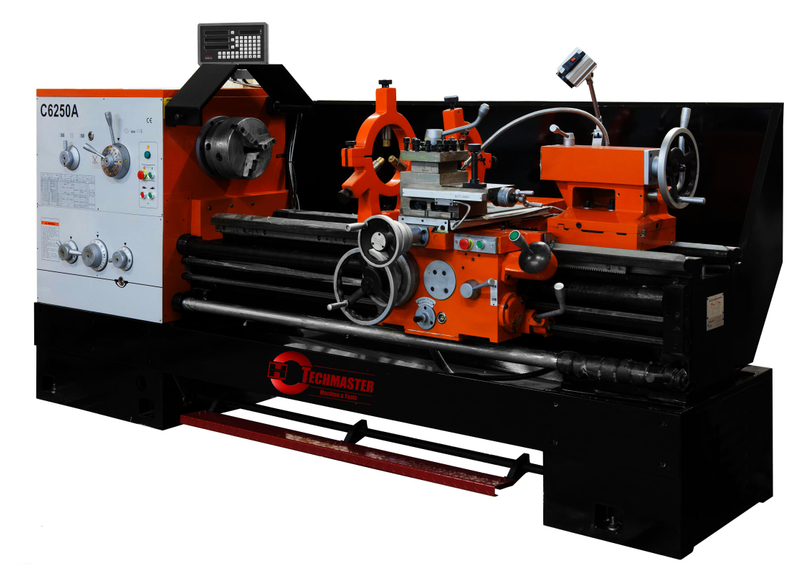

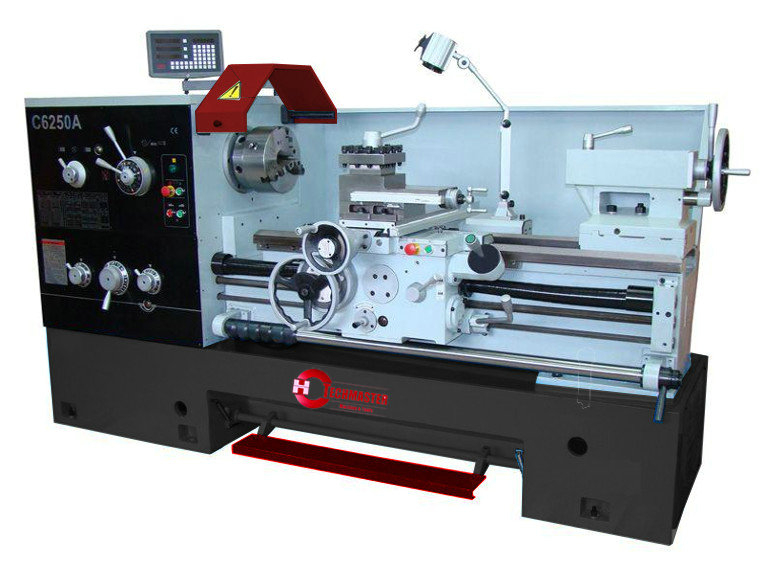

80mm Workshop Use Metal Turning Conventional Lathe Machine C6250A
Quantity: -
C6250AX1500/2000
C6250A High Precision Lathe / Lathe Machine / Metal Lathe / Engine Lathe / Bench Lathe / Precision lathe.
Big Bore Gap Bed Conventional C6250A/1500
Product Features:
1) 80mm bore spindle is high in rigitidy and accuracy.
2) Universal gearbox allows inch, metric, diametral, and module pitch threads.
3) The surface of the bed guid is supersonic frequency hardened.
4) Rapid feed structure is available on Apron.
5) Large easy to use foot brake.
6) Chrome molybdenum headstock gears are hardened, ground, and shaved.
7) T-slotted compound slide featuring a 4-way tool post.
8) Clutch in headstock makes the lathe more safe and reliable.MODELS
C6250A
CAPACITY
Max.swing over bed
Ф500mm
Max.swing over carriage
Ф310mm
Max. swing over gap
Ф720mm
Distance between centers
1000/1500/2000/3000mm
Max turning length
850/1350/1850/2850mm
SPINDLE
Spindle nose
D8
Spindle bore
Ф80mm
Taper bore of spindle
M.T.NO.7
Steps of spindle speed
12
Range of spindle speed
36~1600rpm
FEED
Range of longitudinal feeds
0.063~2.52 (0.023″~0.937″)mm
Range of cross feeds
0.027~1.07(0.010″~0.404″)mm
RAPID TRAVEL
Longitudinal
4500mm/min
Cross
1900mm/min
THREAD RANGE/ NUMBER
Metric pitch threads
1~14mm/ 22
Whit-worth threads
28~2 T.P.I/ 26
Module threads
0.5~7M.P/ 18
D.P.Threads
56~4 D.P/24
TAILSTOCK SLEEVE
Taper bore
M.T.NO.5
Max.travel
150mm
External diameter
Ф75mm
OTHERS
Size of tool shank
25×25mm
Max travel of cross slide
340mm
Max.travel of top slide
145mm
Main motor power
7.5kw (10HP)
Overall dimensions(L×W×H)
(2500/3000/3500/4500)×1100×1380mm
Net weight
2900/3150/3400/3750kg
Standard Accessories:
250mm 3-jaw chuck Lubrication system
320mm 4-jaw chuck Coolant system
400mm face plate Foot break
4-way tool post Halogen work lamp
Manual tailstock Threading dial
Steady rest Spindle center, live center
Follow rest Tool box and adjusting tools
Optional Accessories:
Drive plate
Chuck cover
Tool post cover
Leadscrew cover
Tapper attachment
Quick change tool post
Digital readoutC6250A High Precision Lathe / Lathe Machine / Metal Lathe / Engine Lathe / Bench Lathe / Precision lathe.
