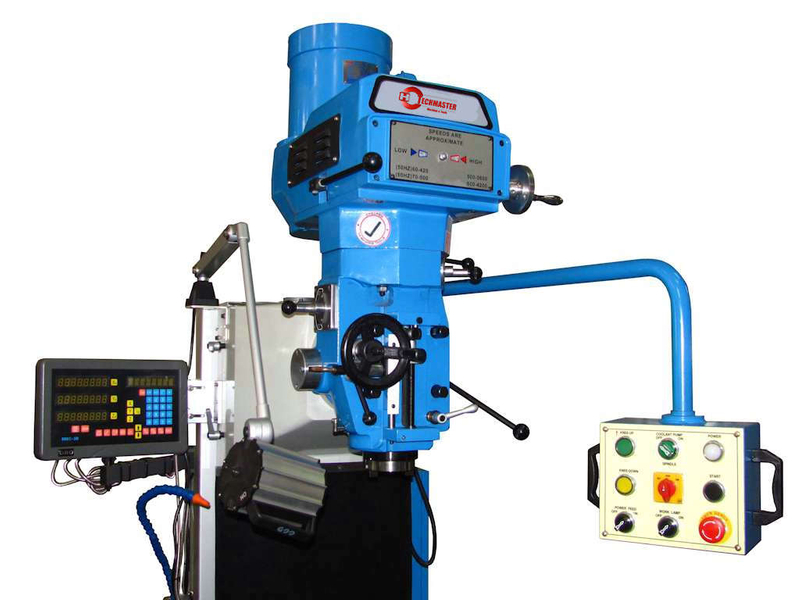

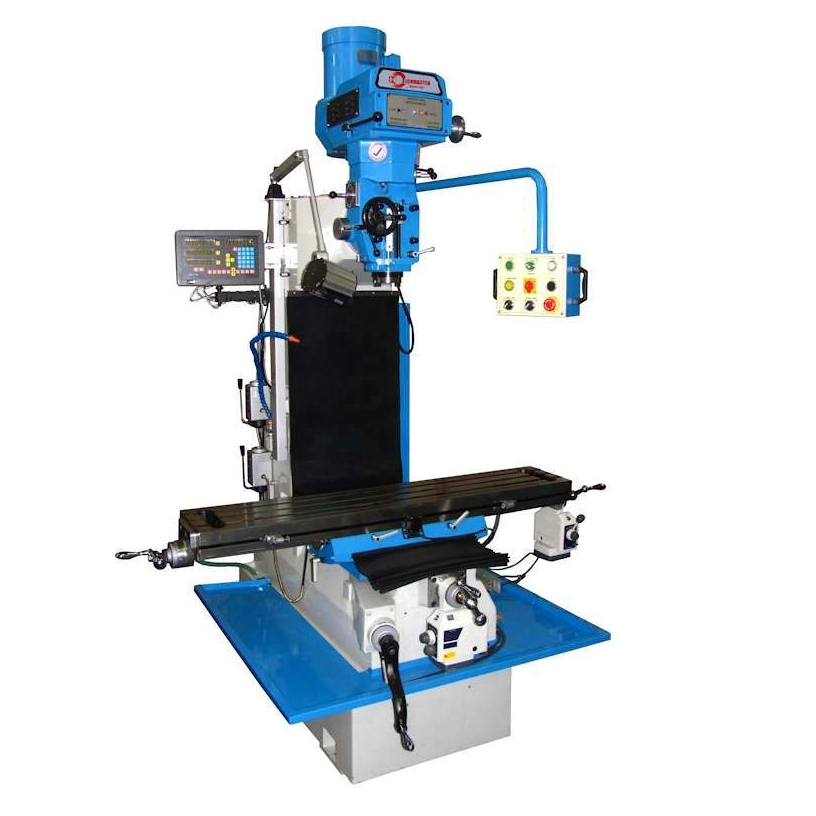

9VM Turret Milling Machine
Availability:
Quantity:
Inquire
Add to Basket
Product Description
HEAD:
Variable Head

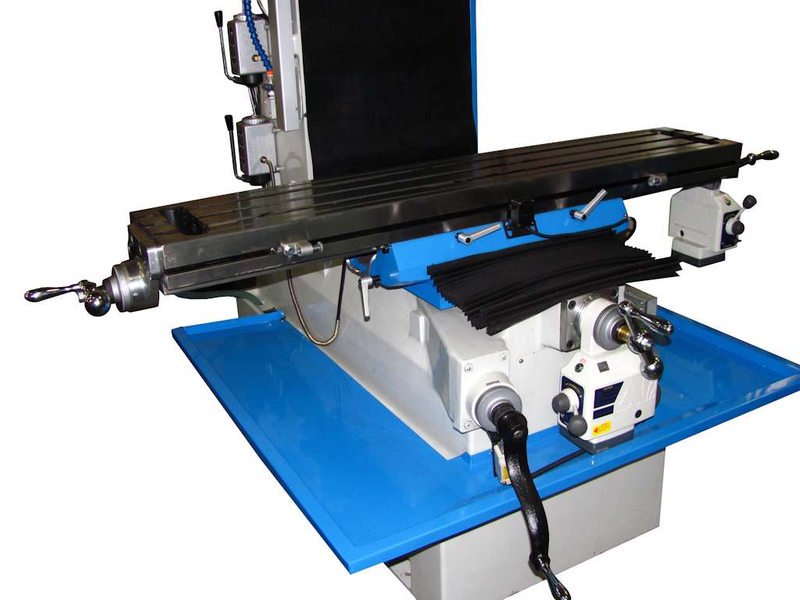

BED:
Bed size: 254 x 1390mm
Bed travel: 900mm
Cross travel: 500mm
Knee travel: 700mm
Max workpiece weight: 500kg
2 x Powerfeeds
Rapid up-down
SPINDLE:
Spindle taper: ISO40
Spindle travel: 127mm
Spindle speed: 80~3600rpm
Spindle motor: 5HP
WEIGHT & DIMENSIONS:
Dimensions: 1850 x 1450 x 2400(LxWxH)
Weight: 1450kg
MACHINE ACCESSORIES:
3-axis Xintian DRO

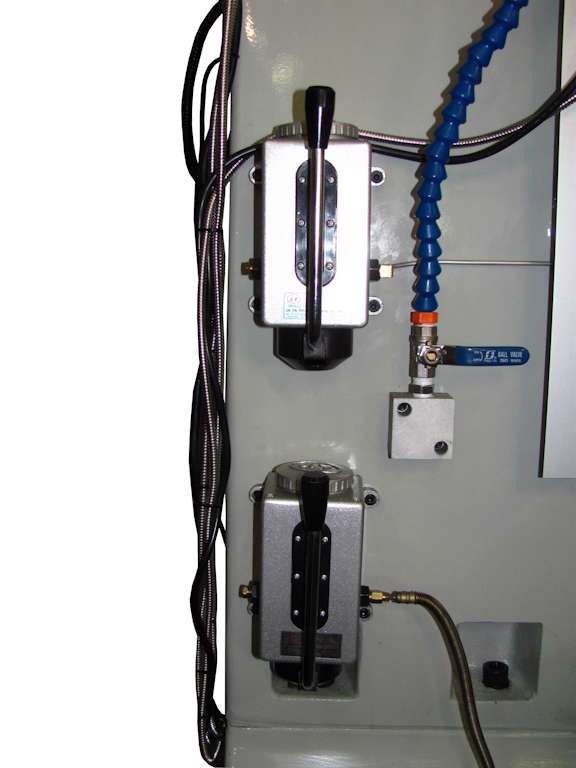

One Shot lubrication
Front + Rearway covers
Drawbar
Tools + Toolbox
Turcite-B coating on x+y slides
P4 Class Spindle bearings
Drip Tray
Coolant Pump
Over-arm type control panel
Halogen lamp
HEAD:
Variable Head
BED:
Bed size: 254 x 1390mm
Bed travel: 900mm
Cross travel: 500mm
Knee travel: 700mm
Max workpiece weight: 500kg
2 x Powerfeeds
Rapid up-down
SPINDLE:
Spindle taper: ISO40
Spindle travel: 127mm
Spindle speed: 80~3600rpm
Spindle motor: 5HP
WEIGHT & DIMENSIONS:
Dimensions: 1850 x 1450 x 2400(LxWxH)
Weight: 1450kg
MACHINE ACCESSORIES:
3-axis Xintian DRO
One Shot lubrication
Front + Rearway covers
Drawbar
Tools + Toolbox
Turcite-B coating on x+y slides
P4 Class Spindle bearings
Drip Tray
Coolant Pump
Over-arm type control panel
Halogen lamp
