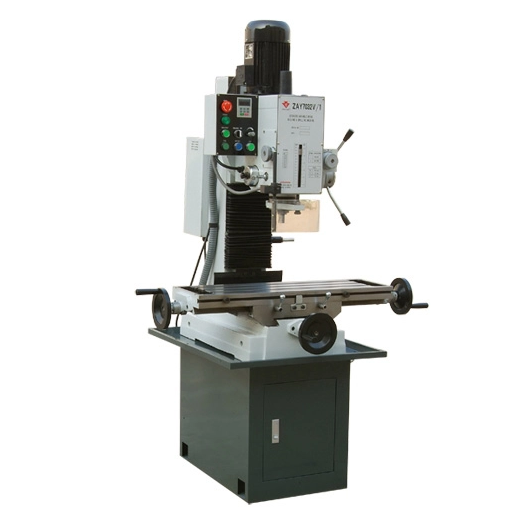

AUTO FEEDING AND SPEED -STEP -CYCLICALLY DRILLING AND MILLING MACHINE SPEED ZAY7032V/1-ZAY7040V/1-ZAY7045V/1

Quantity:
  • ZAY7032V/1-ZAY7040V/1-ZAY7045V/1

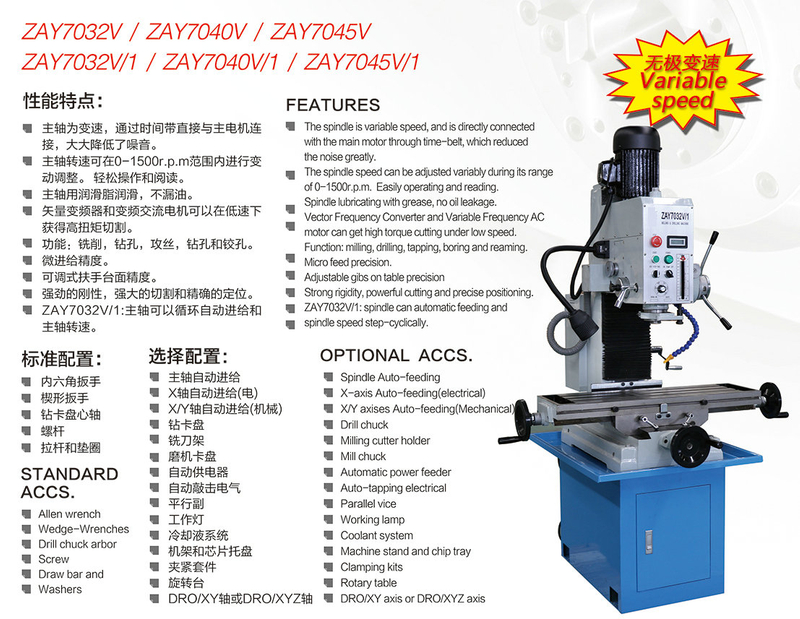

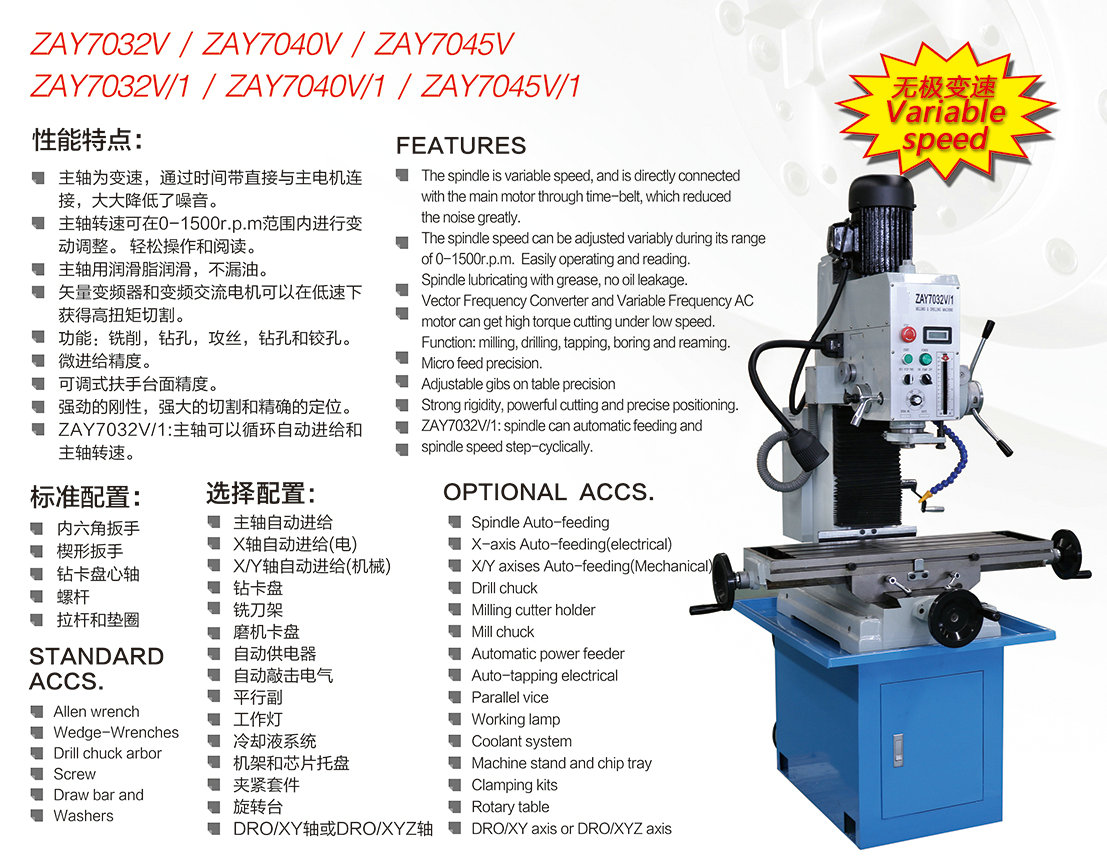

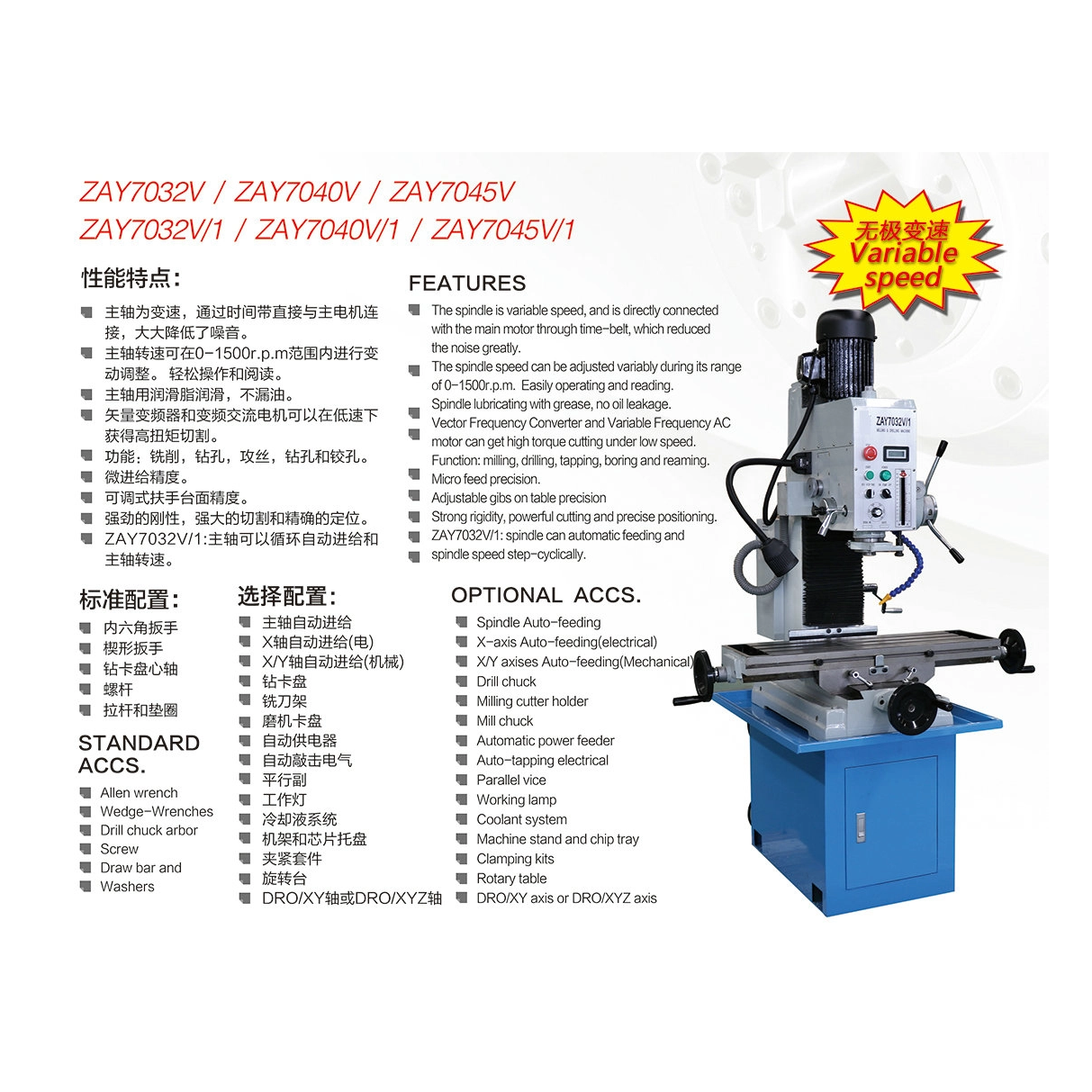

The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket

Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system

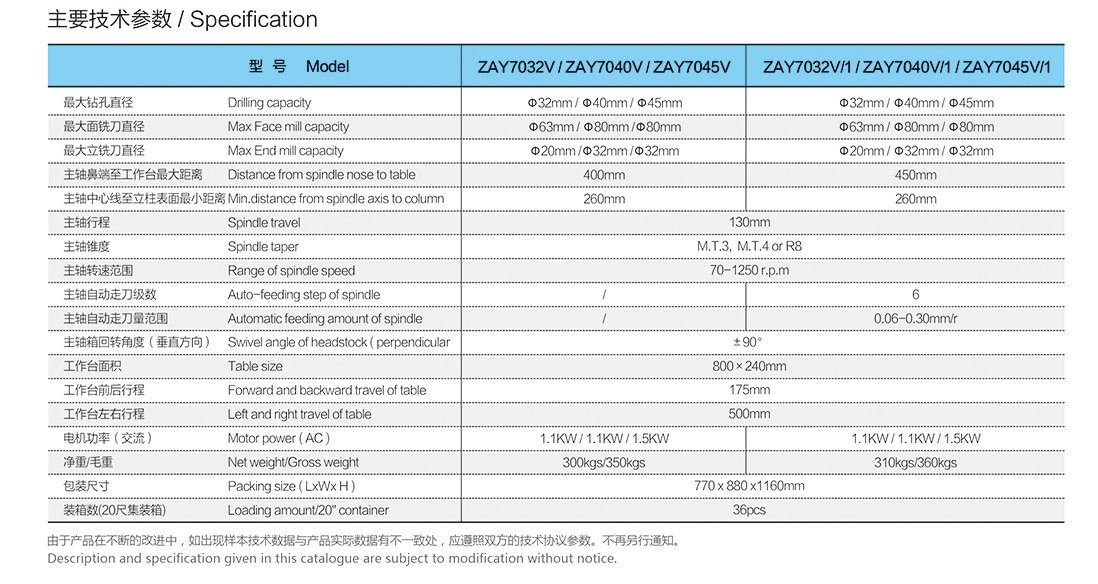

Product main technical Specifications:

ITEMZAY7032VZAY7040VZAY7045V
Max.drilling capacity32mm40mm45mm
Max Face mill capacity63mm80mm80mm
Max End mill capacity20mm32mm32mm
Distance from spindle nose to table450mm450mm450mm
Min.distance from spindle axis to column260mm260mm260mm
Spindle travel130mm130mm130mm
Spindle taperM.T.3 or R8M.T.4 or R8M.T.4 or R8
Range of spindle speed(2 steps)100-530,530-2800r.p.m,100-530,530-2800r.p.m,100-530,530-2800r.p.m,
Auto-feeding step of spindle666
Automatic feeding amount of spindle0.06-0.30mm/r0.06-0.30mm/r0.06-0.30mm/r
Swivel angle of headstock (perpendicular)±90°±90°±90°
Table size800×240mm800×240mm800×240mm
Forward and backward travel of table175mm175mm175mm
Left and right travel of table500mm500mm500mm
Motor power(AC)1.1KW1.1KW1.5KW
Voltage/Frequency110V or 220V110V or 220V110V or 220V
Net weight/Gross weight320kg/370kg323kg/373kg325kg/375kg
Packing size770×880×1160mm770×880×1160mm770×880×1160mm
