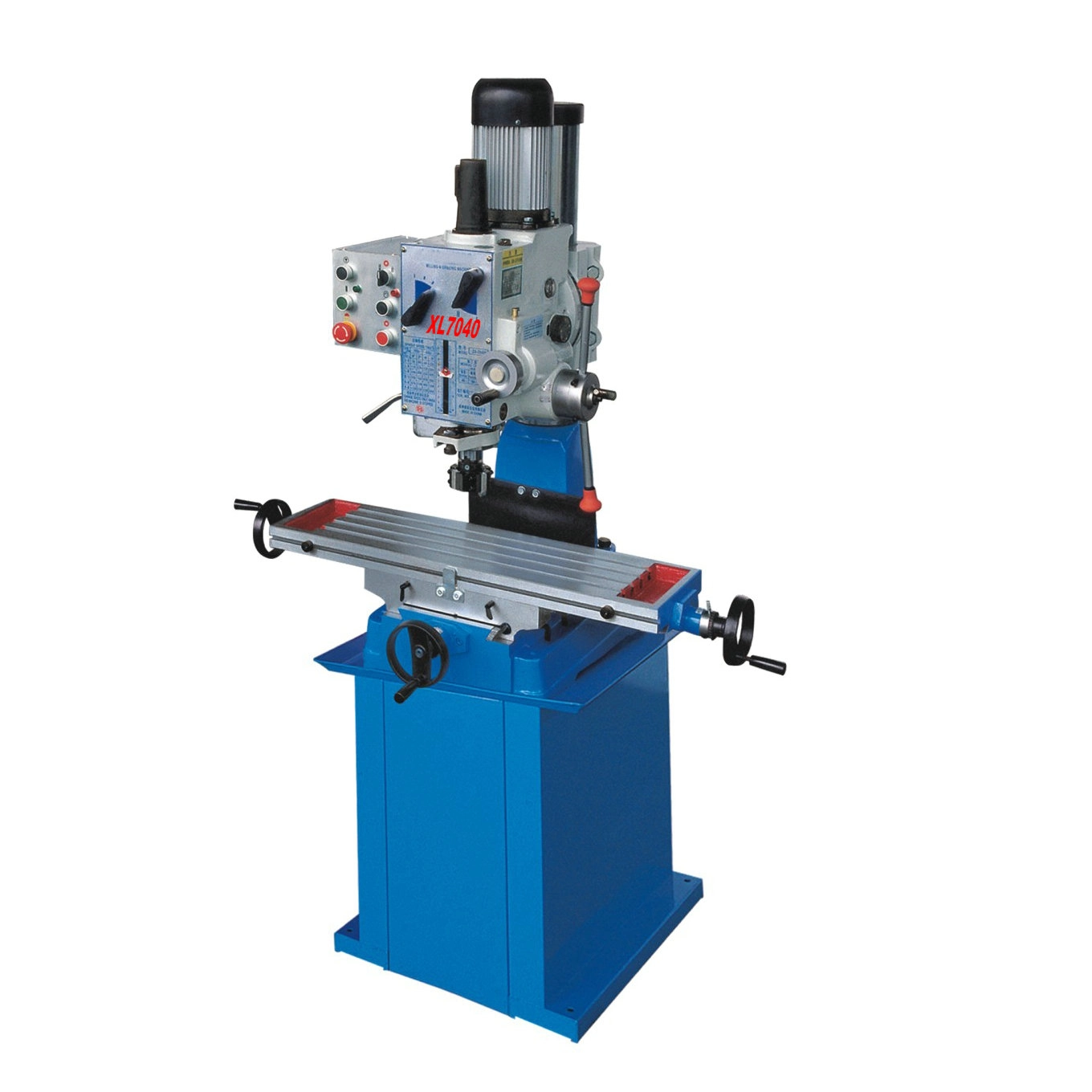

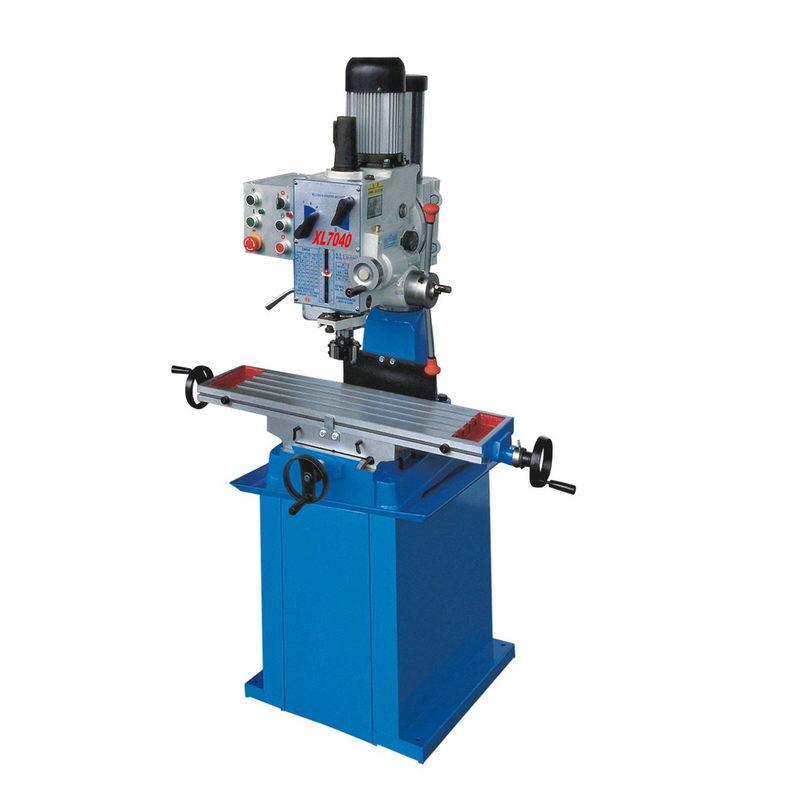

AUTO FEEDING DRILLING AND MILLING MACHINE XL7040( ROUND COLUMN)
Quantity: -
ZS-40PS
CHARACTERS:
The machine spindle can auto-feeding, micro-feeding and hand-feeding.
swivel head 45 °, Column rotates -360 °
Spindle speed change and feeding speed change easiness.
This machine use gear driving system and it is driving moment is strong enough to drilling,
reaming and milling at all kinds materials.
The working scope is large enough for spindle head not only up and down.
Driven by gearbox in oil!
Technical data:
MODEL
XL7040B
Spindle taper
MT 4/R8
Swivel headstock
45°
Max.Drilling capacity
40 mm
Diameter of vertical milling
22 mm
Max. face mill capacity
80 mm
Spindle feeds
0.12; 0.18; 0.25 mm / r
Distance spindle axis to column generating line
261,5 mm
Max.Distance spindle nose to table
450 mm
Spindle travel
110 mm
Dimension of worktable surface
730 x 210 mm
Table travel
450 x 170 mm
Spindle speeds range
50-1250 r / min (6 speeds)
50-2500r/min(12speeeds))Motor
1.1KW(SINGLE PHASE)
1,5 kW(THREE PHASE)Voltage
230V/400 V
Weight
390 kg
Packing dimension
860 x 740 x 1160 mm
Standard accessoeries
Reducer sleeve
MT4/MT3
MT3/MT2
Drill chuck 1-13 mm
