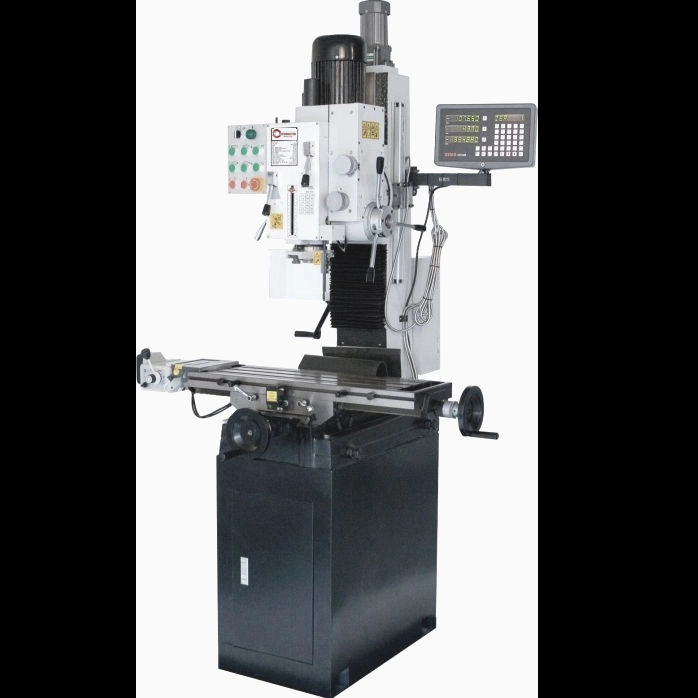

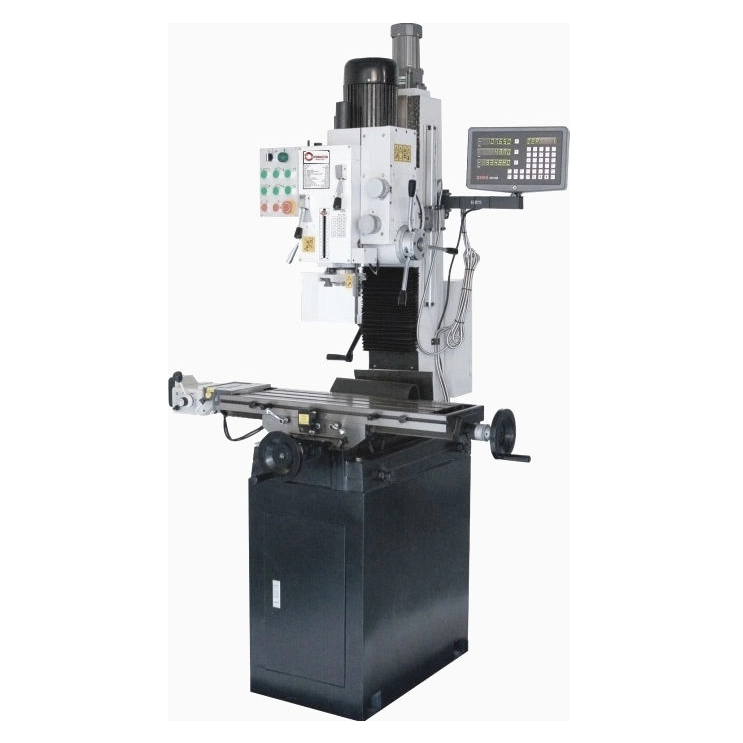

AUTO FEEDING DRILLING AND MILLING MACHINE ZAY7045AFG
Quantity: -
ZAY7020-ZAY7032-ZAY7040-ZAY7045
Performence Features:
1. Milling, drilling, tapping, boring and reaming
2. Head swivels ± 90° Vertically

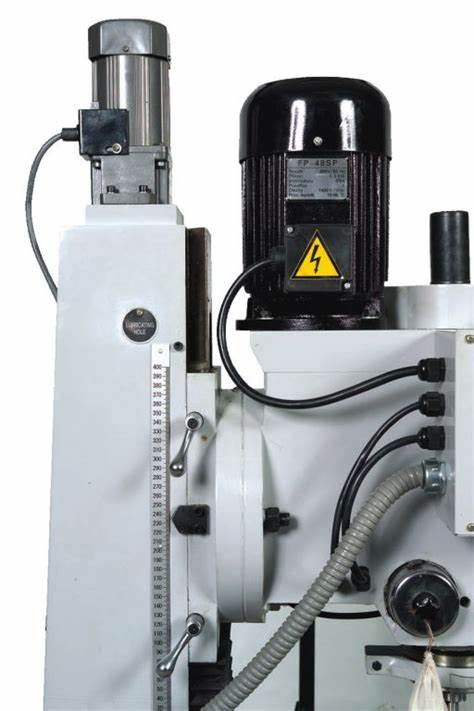

3. Auto-lifting headstock electrically
4. Numeral depth gauge for spindle feeding
5. Heighten and steadier column

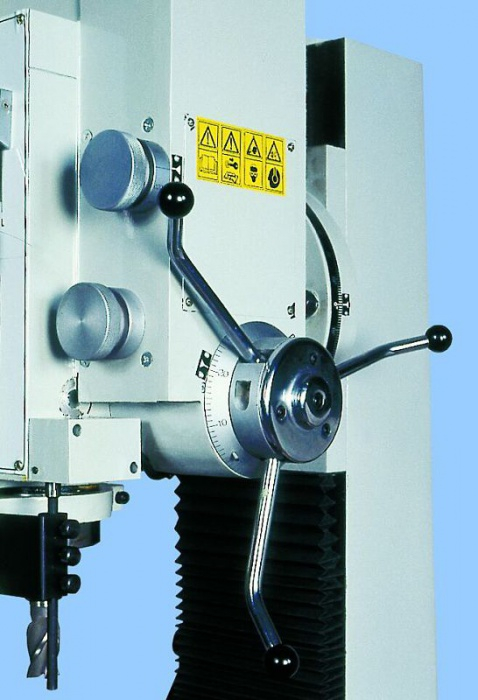

6. Micro feed precision
7. Adjustable gibs on table precision
8. Strong rigidity, powerful cutting and precise positioning.9.SPINDLE AUTO FEEDING
10,HEADSTOCK CAN UP AND DOWN MOVEMENT .
Technical parameter:ITEM ZAY7045AFG Max Drilling capacity 45mm Max Face mill capacity 80mm Max End mill capacity 32mm Max distance from spindle nose to table 425mm Min distance from spindle to column 279mm Spindle travel 130mm Spindle taper M.T.4 Step of speed 6 Range of spindle speed 50HZ 80-1250 r.p.m 2 poles motor 60HZ 100-1500 r.p.m Auto-feeding step of spindle 6 Auto-feeding range of spindle 0.05-0.35mm/r Swivel angle of headstock ±90° Table size 800×240mm Forward and backward travel of table 205mm Left and right travel of table 585mm Motor power 1.5KW Net weight/Gross weight 380kg/420kg Packing size 770×880×1160mm Performence Features:
1. Milling, drilling, tapping, boring and reaming
2. Head swivels ± 90° Vertically
3. Auto-lifting headstock electrically
4. Numeral depth gauge for spindle feeding
5. Heighten and steadier column
6. Micro feed precision
7. Adjustable gibs on table precision
8. Strong rigidity, powerful cutting and precise positioning.9.SPINDLE AUTO FEEDING
10,HEADSTOCK CAN UP AND DOWN MOVEMENT .
Technical parameter:ITEM ZAY7045AFG Max Drilling capacity 45mm Max Face mill capacity 80mm Max End mill capacity 32mm Max distance from spindle nose to table 425mm Min distance from spindle to column 279mm Spindle travel 130mm Spindle taper M.T.4 Step of speed 6 Range of spindle speed 50HZ 80-1250 r.p.m 2 poles motor 60HZ 100-1500 r.p.m Auto-feeding step of spindle 6 Auto-feeding range of spindle 0.05-0.35mm/r Swivel angle of headstock ±90° Table size 800×240mm Forward and backward travel of table 205mm Left and right travel of table 585mm Motor power 1.5KW Net weight/Gross weight 380kg/420kg Packing size 770×880×1160mm
