- Heavier Class Milling Machine, (1100 LBS With Base) For More Rigidity, And Greater Cutting Ability
- Larger Knee Mill Style Table Handles, for Much Better Control By Hand
- True Inch Pitch Leadscrews on X and Y Axis, 10 TPI Screws (.100″ Per Turn) For Easier Operation
- Available With Power Down Feed on Spindle (PDF Model Only) For Boring Operations
- Optional Stand is Heavy Duty Cast Iron, For Better Vibration Dampening and Rigidity
-
- Table Size: 9″x31.5″
- Max. Table Load Capacity: 300 lbs
- Table T-Slot Size and Number: 14mm / 9/16″, 3 Slots
- Table Travel, X Axis: 22-3/8″ Hand Only, 19.5″ w/ Power Feed
- Table Surface Height from floor, 34-3/4″ (With base flat on floor)
- Base Dimension at floor approx. 18-5/8″W x 27″D
- Bolt Mounting Pattern, Milling Machine Base (Where the machine would bolt to either a work bench or to the cast iron base) Approx. 12-3/4 Wide x 18-3/4 Deep, 9/16" Hole Diameter
- Normal Working Max Height: (top of column travel motor) 76-1/2″ (with optional stand)
- Height with head all the way up: (top of main motor) 81-1/2″(with optional stand)
- Stand (Base) height, to machine mounting surface: 24″
- Cross Travel, Y Axis: 8″
- Head Vertical Travel: 17″
- Max. Distance Spindle to Table: 18″
- Quill (Spindle) Travel: 5″
- Lead Screw Type: Inch Pitch Acme Threads
- Spindle Taper: R-8, with 7/16-20 drawbar thread (U.S.
Standard) - Quill Diameter: approx. 3″
- Head Tilt Front to Back: N/A
- Head Swivel: Side To Side, 90 Degrees
- Ram Swivel: N/A
- Power: 220 Volt, Single Phase, 9 Amps
- Motor Horsepower: 1.5 H.P. (Some other similar machines will say
that they are 2HP, but its the SAME exact motor as this one, just rounded
up to 2hp and marked that way, we prefer to be honest and mark it as
what it really is, which is 1.5HP, which is more than enough power for
this machine either way) - Casting Type: Fine Grain Cast Iron
- Approximate Weight: 1100lbs with Stand, 850 Without Stand
SPECFICATIONS: Metrick System Milling drilling, tapping, boring, reaming
Head swivels 360,Micro feed precision
super high column,Wide and big table,Gear drive, lower noise
heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table;

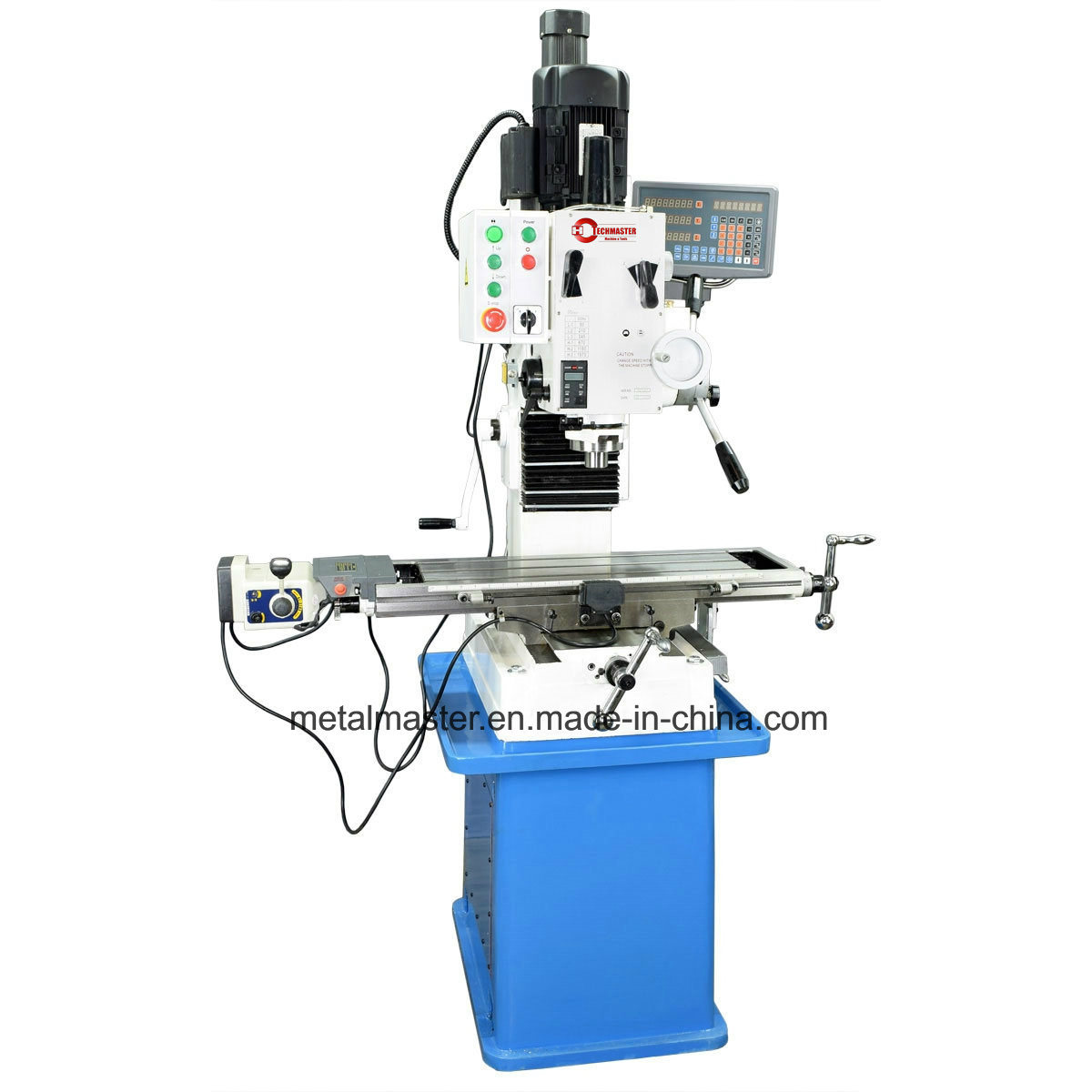

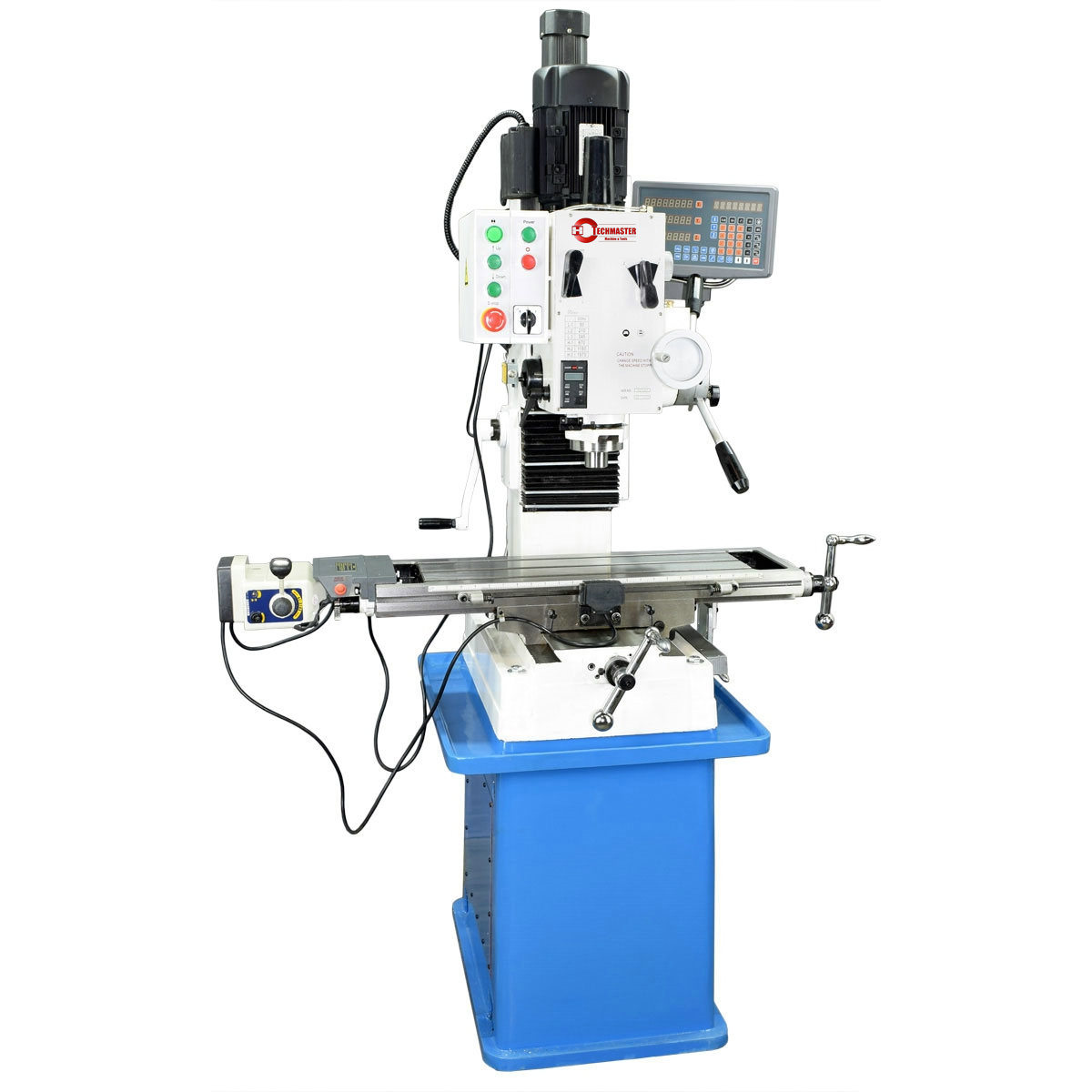

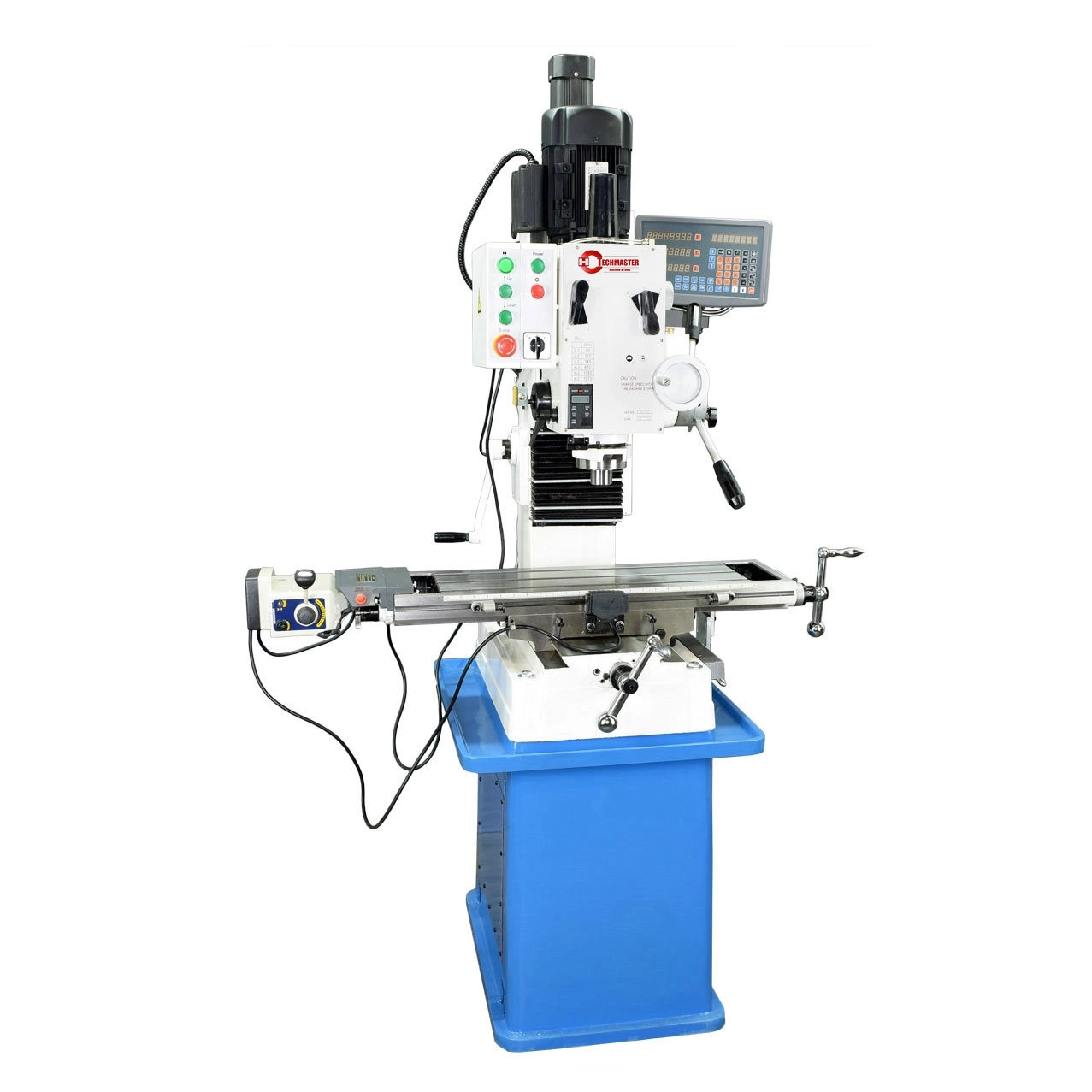

| ITEM | ZX7045A METRIC system |
| Max.drilling capacity(iron/steel) | 31.5/40mm |
| Max.mill capacity(face/end) | 80/32mm |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Worktable size | 800*240mm |
| Worktable travelX/Y | 570/230mm |
| Head tilt left right | 90 |
| Spindle travel | 130mm |
| Spindle nose to worktable | 470mm |
| Spindle center to column surface | 285mm |
| Spindle speed(option) | 6steps:60Hz 90~1970rmp
50Hz 75~1600rmp |
| Motor(option) | 1.1kw |
| N.W/G.W | 300/350KG |
| Packing size(L*W*H,enclude foot and pan) | 850*760*1150mm |
