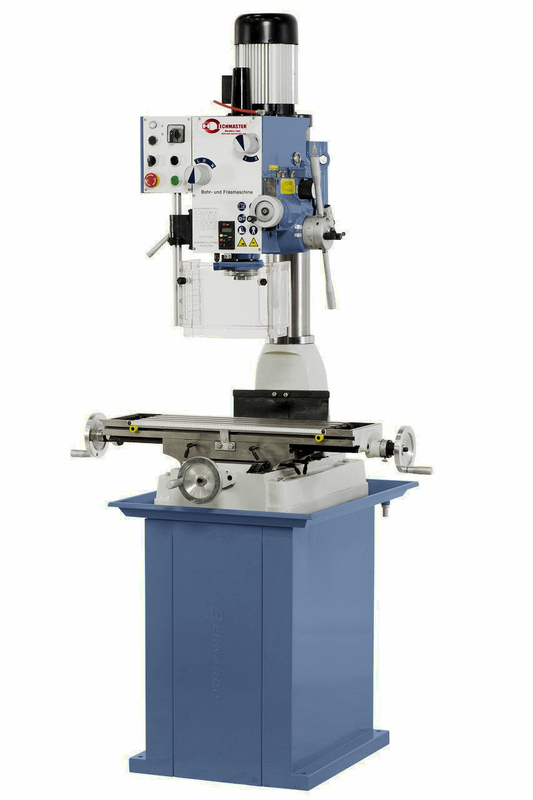

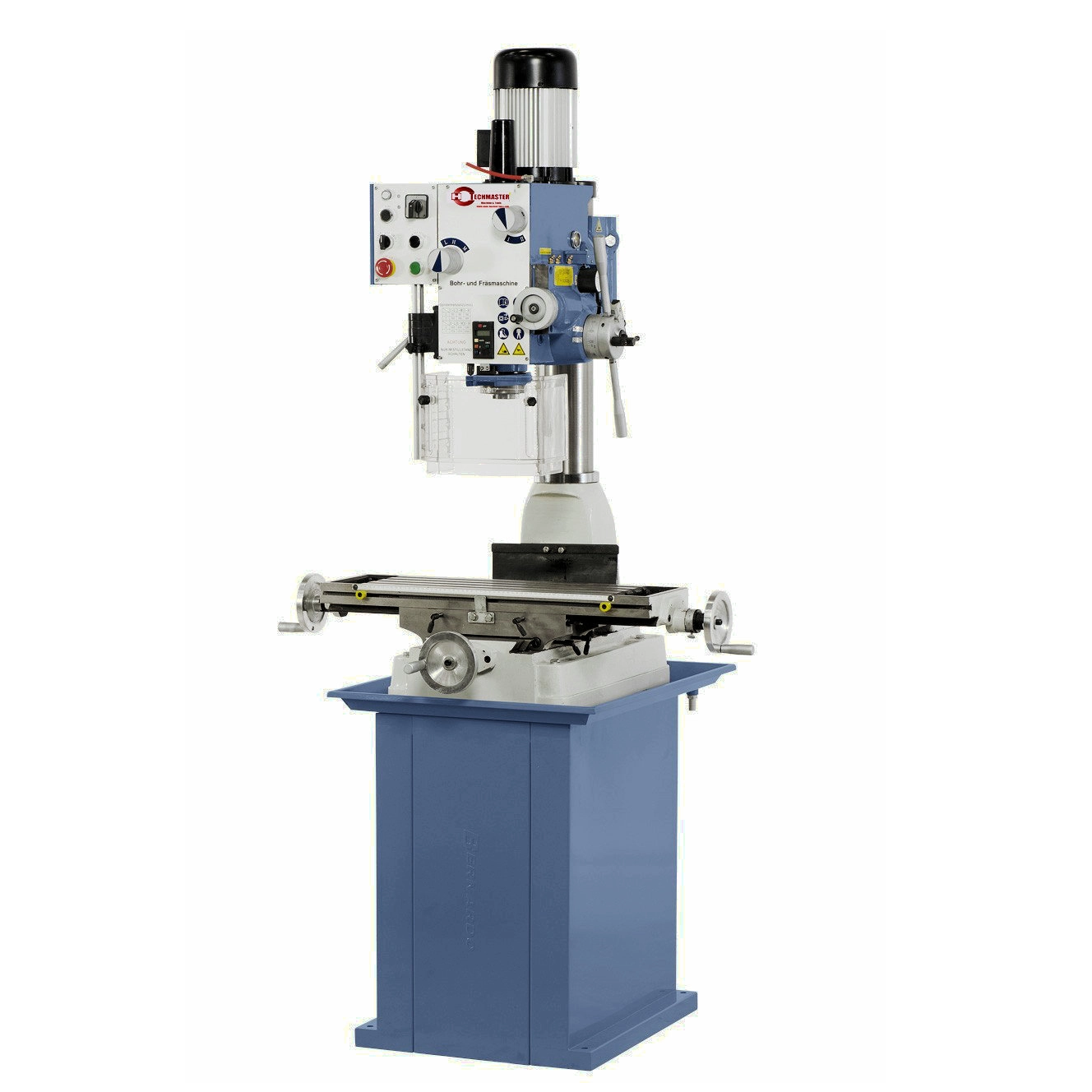

AUTO FEEDING GEARED HEAD DRILLING AND MILLING MACHINE EUROPE STYLE J-ZX40A SUPER
Quantity: features a solid construction, a serially spindle feed, a digital spindle stroke indication and extraordinary performance. This model is popular at model-makers, craftsmen and repair shops.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
32 mm
Drilling capacity in cast iron
40 mm
Distance spindle to column
270 mm
Spindle speeds
(12) 50 - 2520 rpm
Spindle taper
MT 3
Spindle stroke
120 mm
Spindle feed
(3) 0,12 / 0,19 / 0,26 mm/rev.
Table size / T-slot size
730 x 210 mm / 14 mm
Travel (x / y)
500 / 210 mm
Mill head tiltable
-90° to +90°
Distance spindle to table
100 - 420 mm
Height adjustment of mill head
325 mm
Column diameter
115 mm
Motor power output S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 kW (400 V)
Machine dimension (W x D x H)*
1050 x 830 x 1450 mm
Weight approx.
290 kg
* without stand
- Gear selector switch allows easy and quick speed change
- Serially equipped with 3 adjustable drill feeds
- Multiple application possibilities such as drilling, milling and thread cutting
- Large cross table, precisely processed surface
- Gibs adjustable at the table
- Polished gears, in oil bath, for smooth running
- Taper roller bearings guarantee high concentricity
- Right and left rotation allows thread cutting
- Gear head 180° tiltable, 360° rotatable and adjustable in height
- Powerful 2-step-motor
- Handle for spindle adjustment, handwheel for fine feed
Standard accessories:- Automatic spindle feed
- Drawbar M 12
- Drill chuck 1 - 16 mm with MT 3 taper
- Morse taper drill sleeve MT 3 / 2
- Digital spindle stroke indication
- Milling head 80 mm with MT 3 taper
- Height adjustable protective cover
- Thread cutting device
- Longitudinal scale
- Tools
