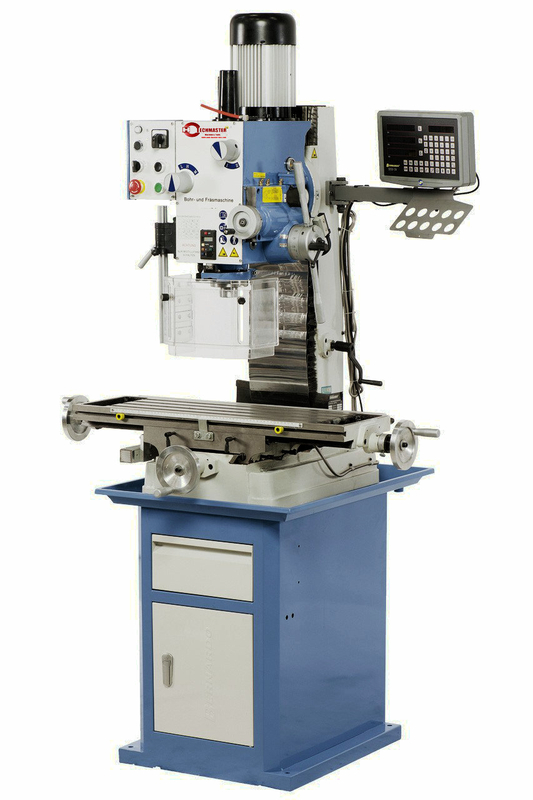

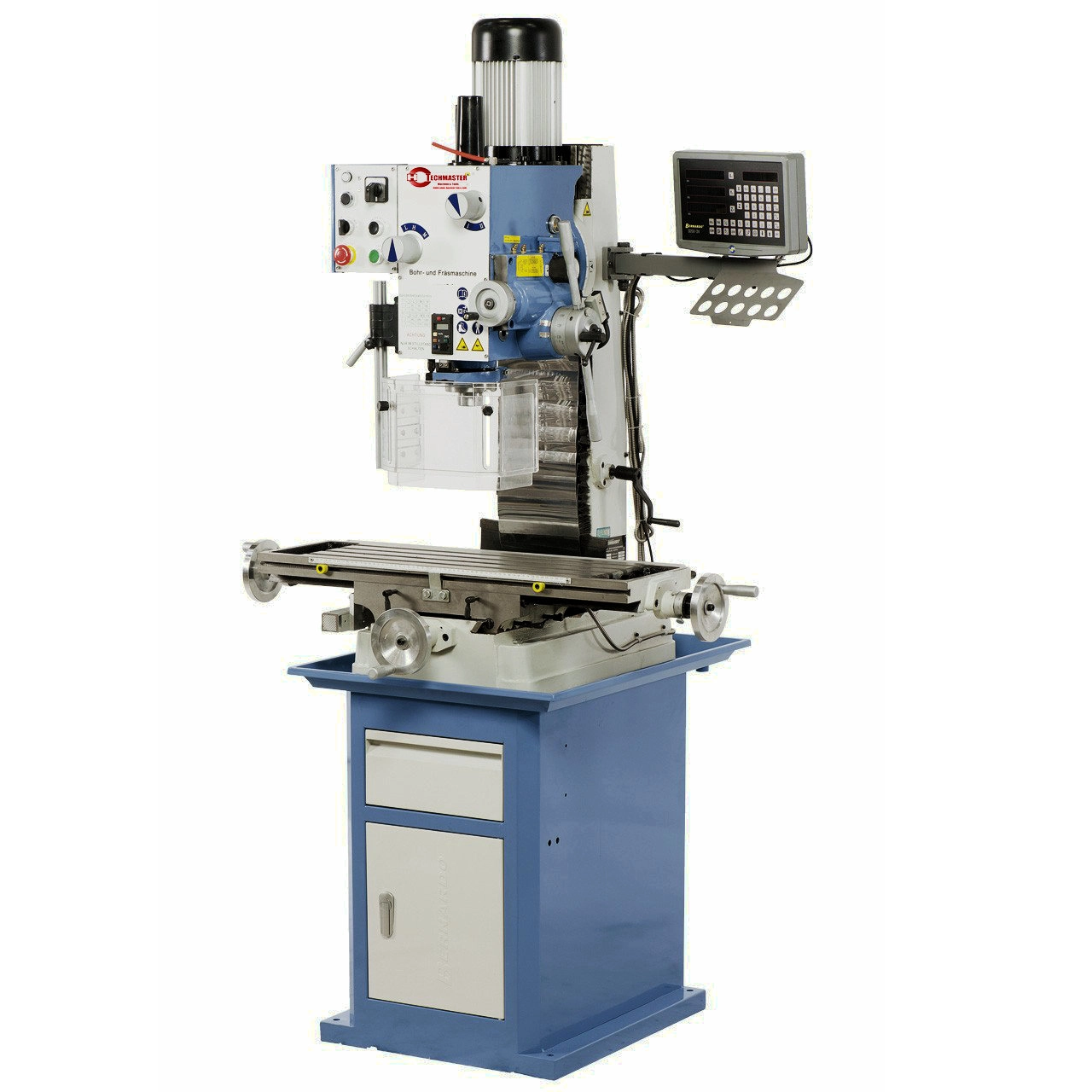

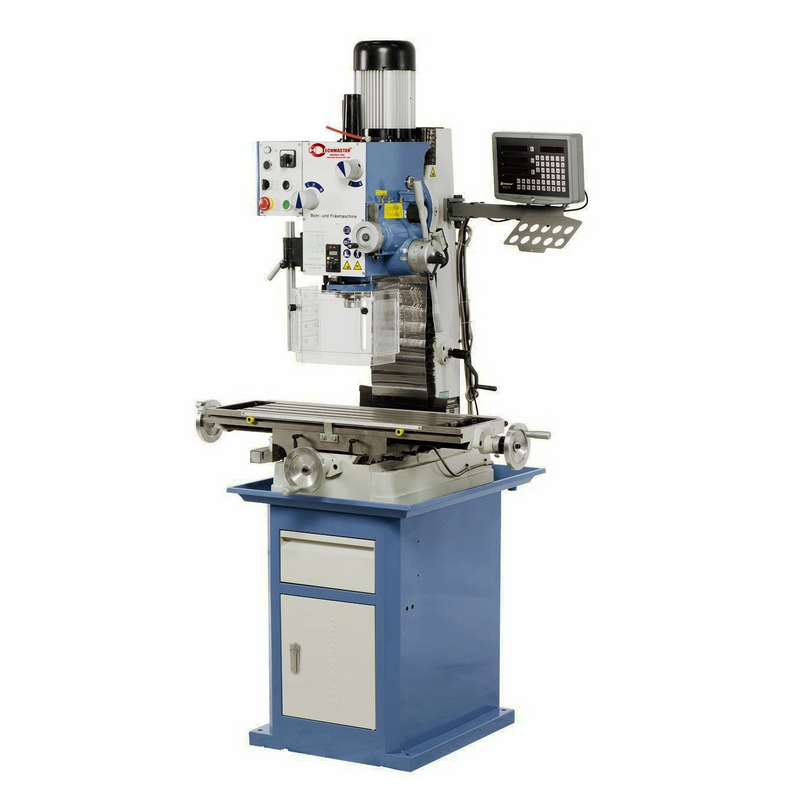

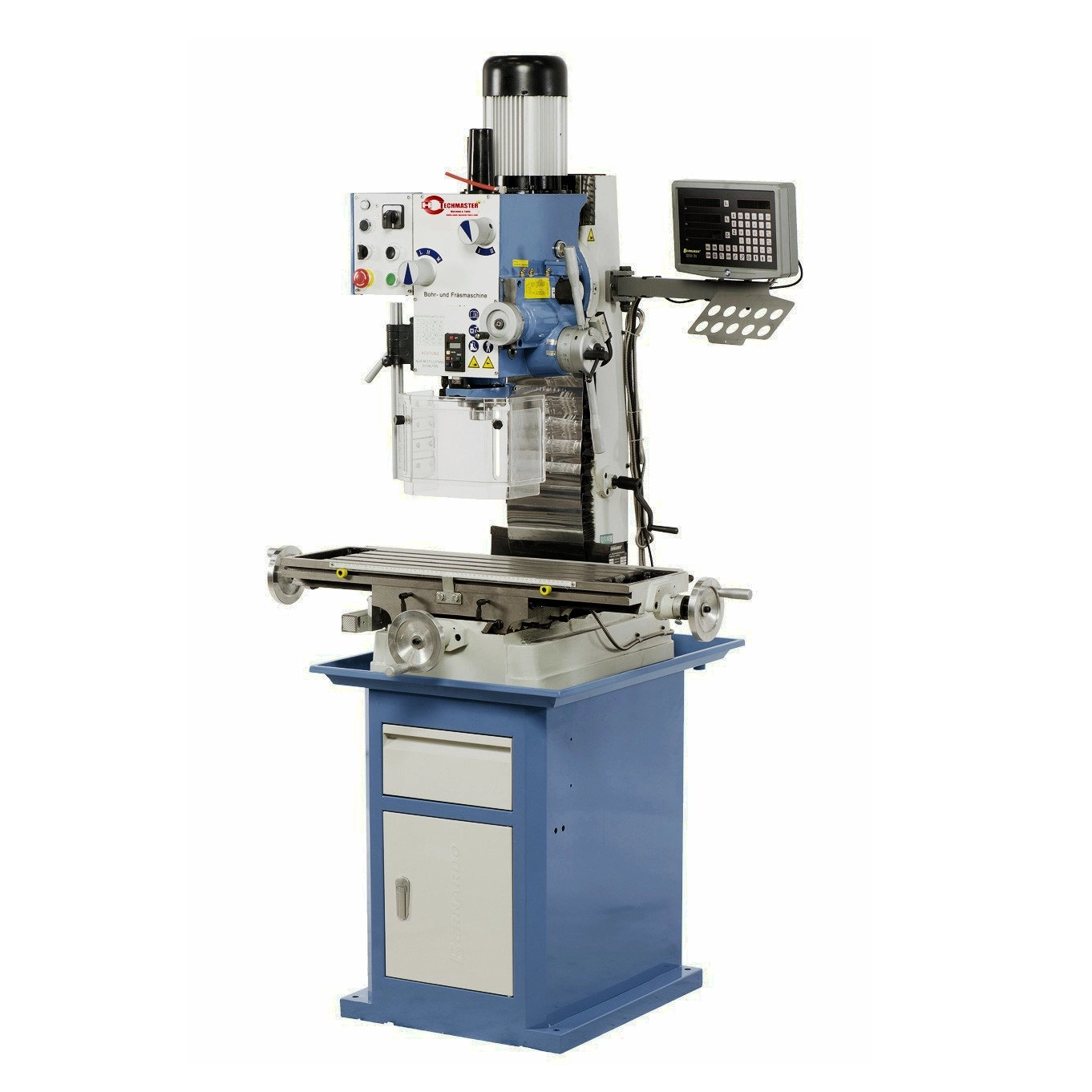

AUTO FEEDING GEARED HEAD DRILLING AND MILLING MACHINE EUROPE STYLE J-ZX45A DRO
Quantity: drilling and milling machine comes complete with spindle feed and digital spindle stroke indication, making this model excellent value for money. The dovetail guiding of the gear head guarantees maximum precision and stability. For reducing non-productive time, this model comes with a 3-axis digital readou
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
32 mm
Drilling capacity in cast iron
40 mm
Distance spindle to column
260 mm
Spindle speeds
(12) 50 - 2520 rpm
Spindle taper
MT 4
Spindle stroke
120 mm
Spindle feed
(3) 0,12 / 0,19 / 0,26 mm/rev.
Table size / T-slot size
820 x 240 mm / 14 mm
Distance spindle to table
40 - 440 mm
Travel (x / y)
550 / 140 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
400 mm
T-slot distance
55 mm
Motor power output S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 kW (400 V)
Machine dimension (W x D x H)*
1150 x 850 x 1450 mm
Weight approx.
300 kg
* without stand
- Serially equipped with automatic spindle feed and thread cutting device
- High speed range 50 - 2520 rpm (12 settings)
- Dovetail guiding for x-, y- and z-axis, adjustable by gibs
- Wide range of applications, such as horizontal slotting, face milling, reboring
- Large cross table, precisely processed surface
- Mill head tilts to both sides for angular boring, milling of bevels etc.
- Handwheel allows spindle feed when milling
- Handle allows spindle feed when drilling
- High-quality aluminium motor, designed for longer use
- Solid cast-iron construction eliminates most vibrations
- Gear selector switch allows quick and easy speed change
Standard accessories:
- Automatic spindle feed
- Drawbar M 10 with adapter M 16
- Drill chuck 1 - 16 mm with MT 4 taper
- Morse taper drill sleeve MT 4 / 3, MT 3 / 2
- Digital spindle stroke indication
- Face mill cutter diam. 80 mm with MT 4 taper
- Height adjustable protective cover
- Steel cover
- Thread cutting device
- Longitudinal scale
- Tools
