AUTO FEEDING GEARED HEAD DRILLING MACHINE EUROPE STYLE Z5025

Availability:
Quantity:
  • Z5025





Drilling, tapping, boring,reaming:
Strong column ,gear drive,low noise;
Heavy-duty tapered roller bearing spindle, positive spindle lock.
Drilling machine Z5025 is equipped with spindle manual feed,
Drilling machine Z5035 is equipped with spindle auto power down feed,
Equipped with cooling system,working light, 2 step motor with 12 steps spped which can improve the machining accuracy and producing efficiency
Standard accessories:
Adaptor, drilling chuck,elevating lever,oil gun, screw, washer, tools.”CE” protecting arbor, cooling system,lamp
Optional accessories:
Depth indicator, 58pcs steel clamping kit, machine vise.



ItemZ5025Z5032
 Max. Drilling dia (Steel/Iron) 28/25mm 32/25mm
 Max. tapping dia.(Steel/Iron) 22/18mm22/16mm
 Spindle taper MT3MT4
 Worktable Size 380×380mm460×460m
Base size 535×360mm620×450m
 Width of T-slot14mm14mm
 Distance of T –slot base160mm160mm
 Spindle stroke 130mm160mm
  Diameter of column  125mm125mm
 Distance from spindle center to column surface 250mm300mm
 Distance from spindle nose to worktable  825mm720mm
 Distance spindle nose to base 1200mm1200mm
Vertical travel of worktable 700mm700mm

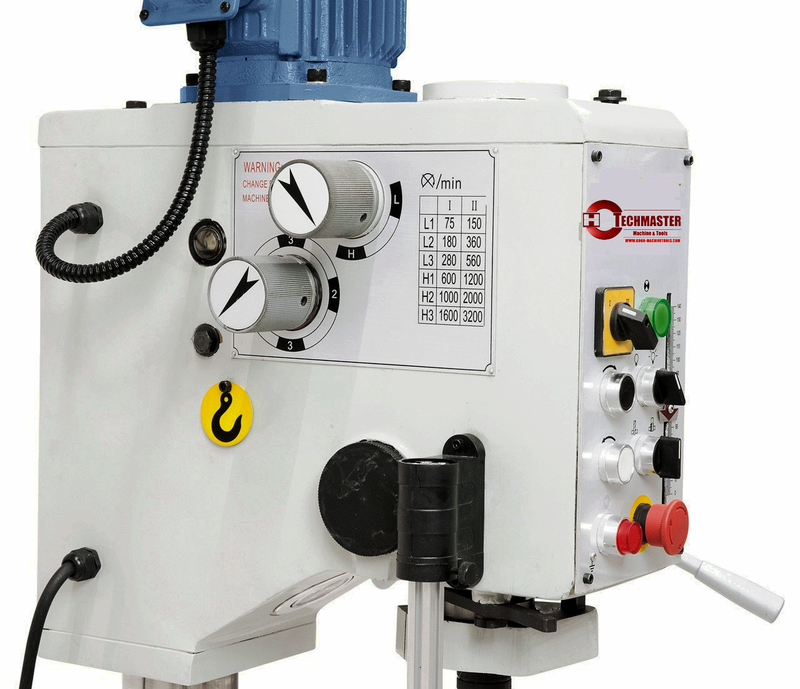

 Spindle speeds range 75~3200rpm(12 speeds)75~3200rpm(12 speeds)
Speed power feed range
0.06/0.12/0.18mm/r
 Motor( 2 speed motor) 1kw/0.85kw1.5kw/1.1kw
 Packing size 2100×400×640mm2100×400×640mm
 Net weight 210kgs350kgs
