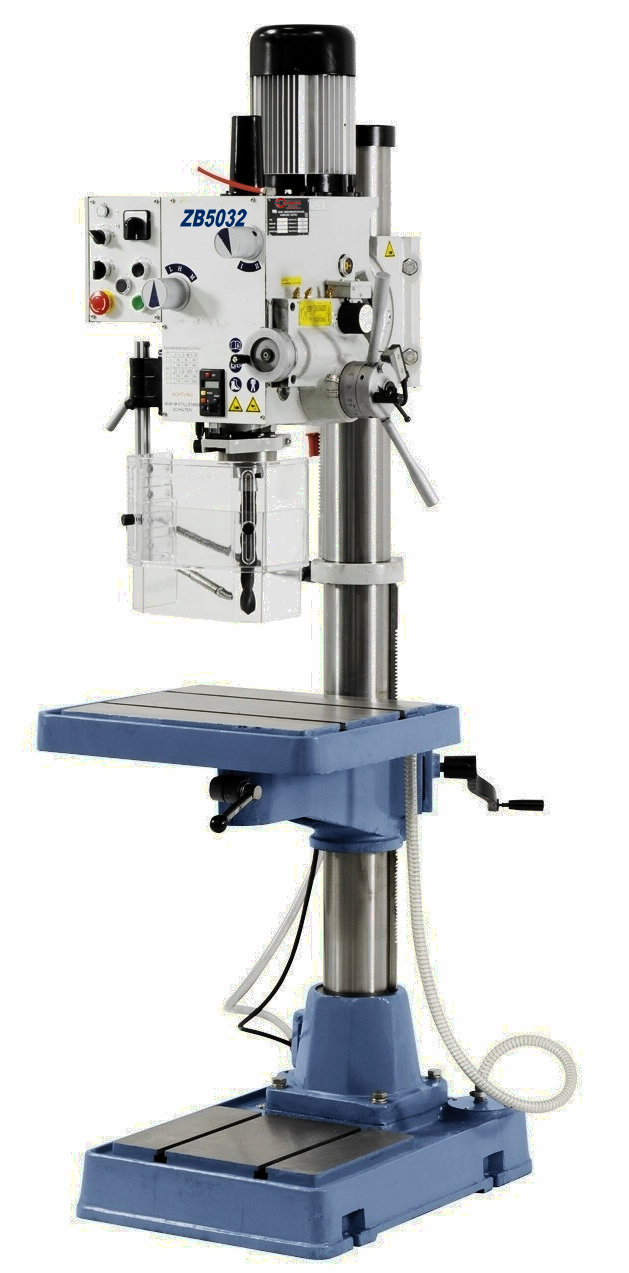

AUTO FEEDING GEARED HEARD DRILLING MACHINE ZB5032
Quantity: a suitable machine for various drilling, milling and countersinking works. The tilt- and turnable gear head makes this model a highly versatile option for model makers, repair shops and training purposes.
ZB5032 AUTO FEEDING GEARED DRILLING MACHINE WITH COOLANT
Drilling capacity max.
32 mm
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds
(12) 50 - 2520 rpm
Feed area
0,12 / 0,19 / 0,26 mm/rev
Distance spindle to column
272 mm
Distance spindle / table max.
790 mm
Distance spindle / base
1220 mm
Spindle stroke
130 mm
Column diameter
115 mm
Table size
545 x 470 mm
T-slot size
14 mm
Working surface of base
405 x 315 mm
Motor power output S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 kW (400 V)
Machine dimensions (W x D x H)
660 x 710 x 2050 mm
Weight approx.
375 kg
FEATURES
- This model comes with automatic spindle feed
- Machine base designed to mount oversized workpieces
- 2-speed motor with 12 adjustable speeds
- Serially equipped with keyless drill chuck 3 - 16 mm / B 18
- Large table with T-slots
- Lever allows quick and easy speed change
- Gear head is height adjustable, tilts 180° and rotates 360°
- Polished gear wheels, in oil bath, guarantee smooth running
- Clutch allows change from manual to fine feed
- Right and left turning for thread cutting
Standard accessories:- Keyless drill chuck 3 - 16 mm / B 18
- Drill chuck arbor MT 4 / B 18
- Coolant device
- Morse taper drill sleeve MT 4 / 3, MT 3 / 2
- Height adjustable protective cover
- Digital drill depth indication
- Thread cutting device
