AUTO FEEDING INDUSTRIAL DRILL PRESS JZB-16
Quantity: -
INDUSTRIAL DRILL PRESS JZB-16

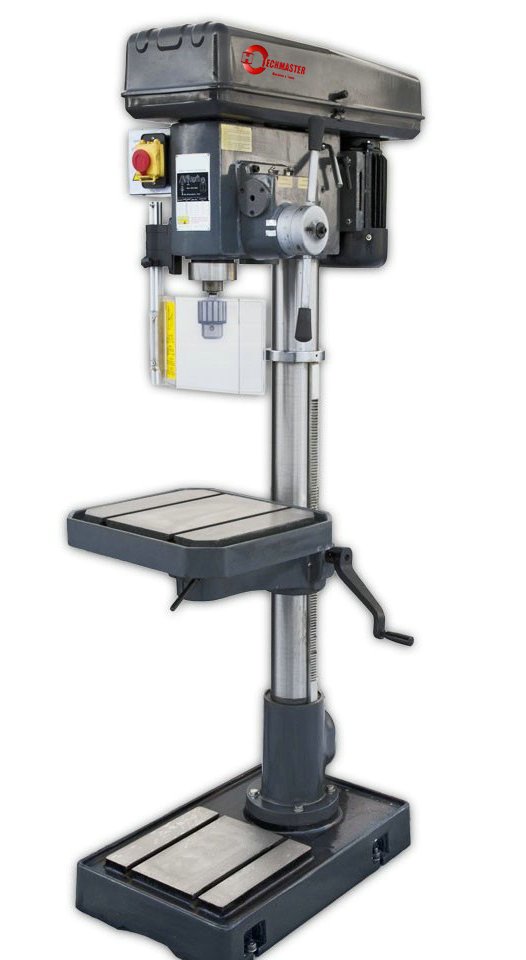

MODEL JZB-16 JZB-25(L) Max.Drilling capacity 16mm 25mm Diameter of column 85mm 102mm Spindle stroke 100mm 130mm Distance spindle axis to column surface 180mm 230mm Max.Distance spindle nose to table 425mm 680mm Max.Distance spindle nose to base 610mm 965mm Spindle taper MT.2 MT.3 Spindle speeds range 290-2000r/min 230-2160r/min Spindle speeds 6 6 Working area of table 270×280mm/Ф320mm 330×380mm/Ф420mm Working area of base 250×250mm 330×320mm Overall height 1050mm 1681mm Motor 750w 1500w G.W/N.W 118/108kg 272/247kg,285/260kg Ship measurement(Wooden cases) 79×46×114cm 98×66×180cm Item No 412016 412018

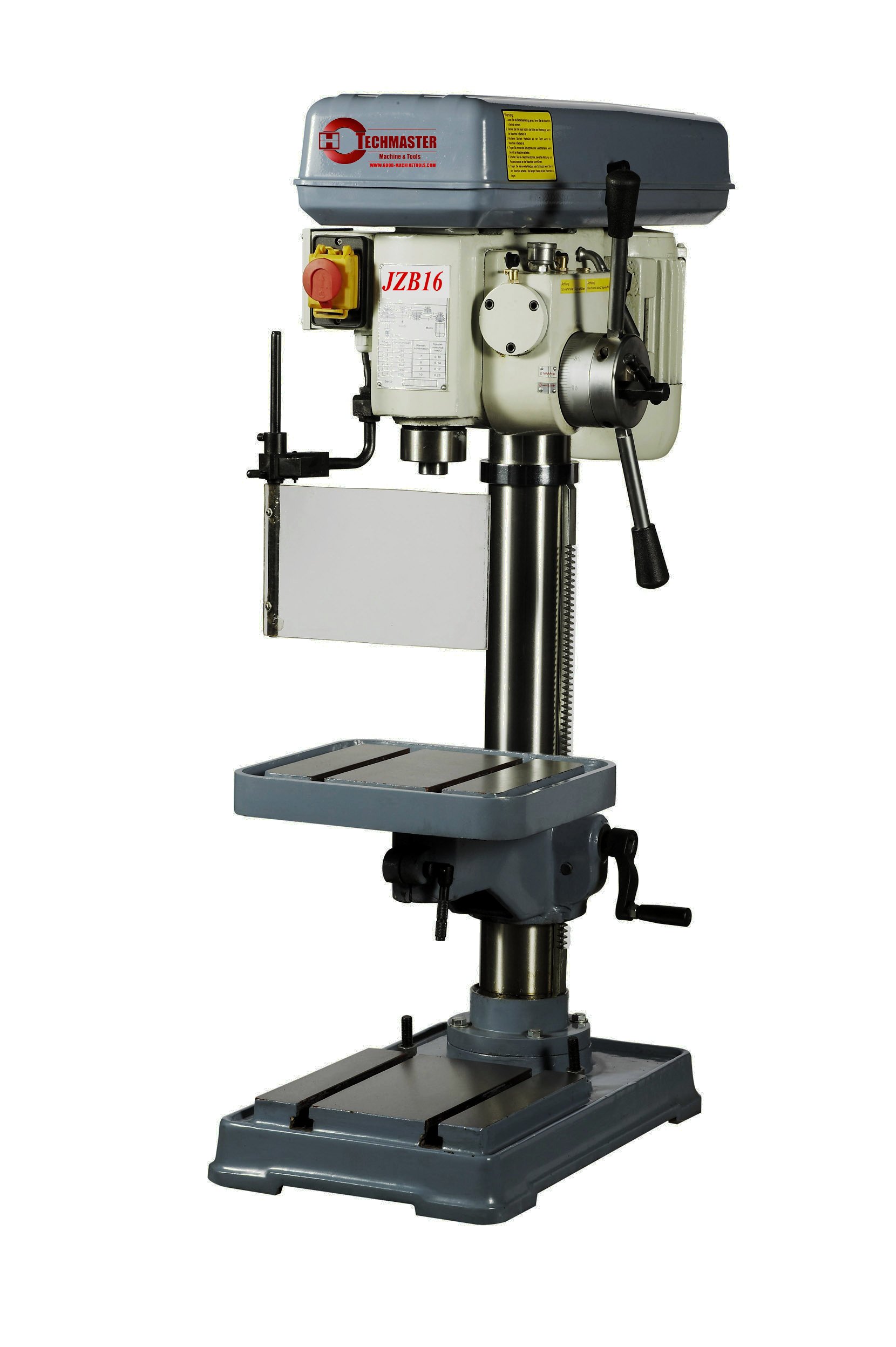

JZB16 CUSTOMER CAN CHOOSE THE SQUARE WORKTABLE BY 270X280MM OR ROUND TABLE BY 320MM
MODEL JZB-16 JZB-25(L) Max.Drilling capacity 16mm 25mm Diameter of column 85mm 102mm Spindle stroke 100mm 130mm Distance spindle axis to column surface 180mm 230mm Max.Distance spindle nose to table 425mm 680mm Max.Distance spindle nose to base 610mm 965mm Spindle taper MT.2 MT.3 Spindle speeds range 290-2000r/min 230-2160r/min Spindle speeds 6 6 Working area of table 270×280mm/Ф320mm 330×380mm/Ф420mm Working area of base 250×250mm 330×320mm Overall height 1050mm 1681mm Motor 750w 1500w G.W/N.W 118/108kg 272/247kg,285/260kg Ship measurement(Wooden cases) 79×46×114cm 98×66×180cm Item No 412016 412018

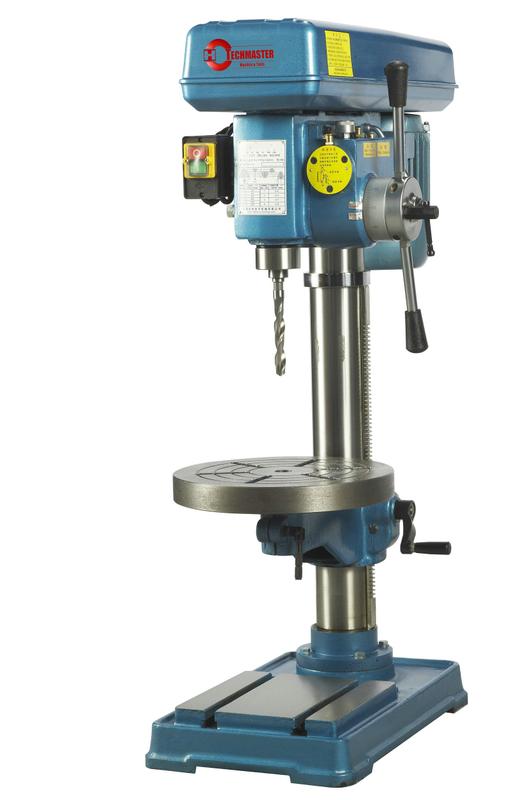

JZB16 CUSTOMER CAN CHOOSE THE SQUARE WORKTABLE BY 270X280MM OR ROUND TABLE BY 320MM
