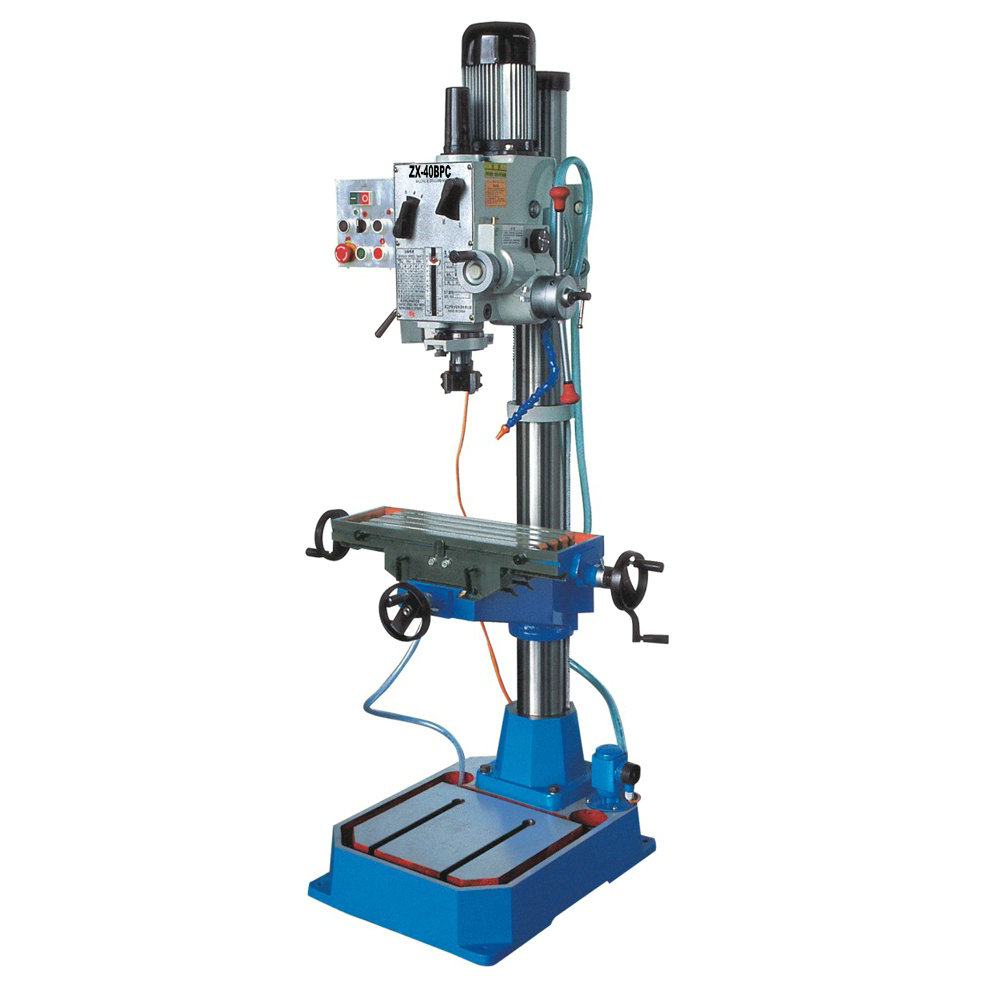

AUTO FEEDING STAND DRILLING AND MILLING MACHINE ZX40BPC WITH COOLANT))

Quantity:
  • XL7045BP



CHARACTERS:



The machine spindle can auto-feeding, micro-feeding and hand-feeding.

 swivel head 45 °, Column rotates  -360 °

Spindle speed change and feeding speed change easiness.

This machine use gear driving system and it is driving moment is strong enough to drilling,

reaming and milling at all kinds materials.

The working scope is large enough for spindle head not only up and down.

Driven by gearbox in oil!

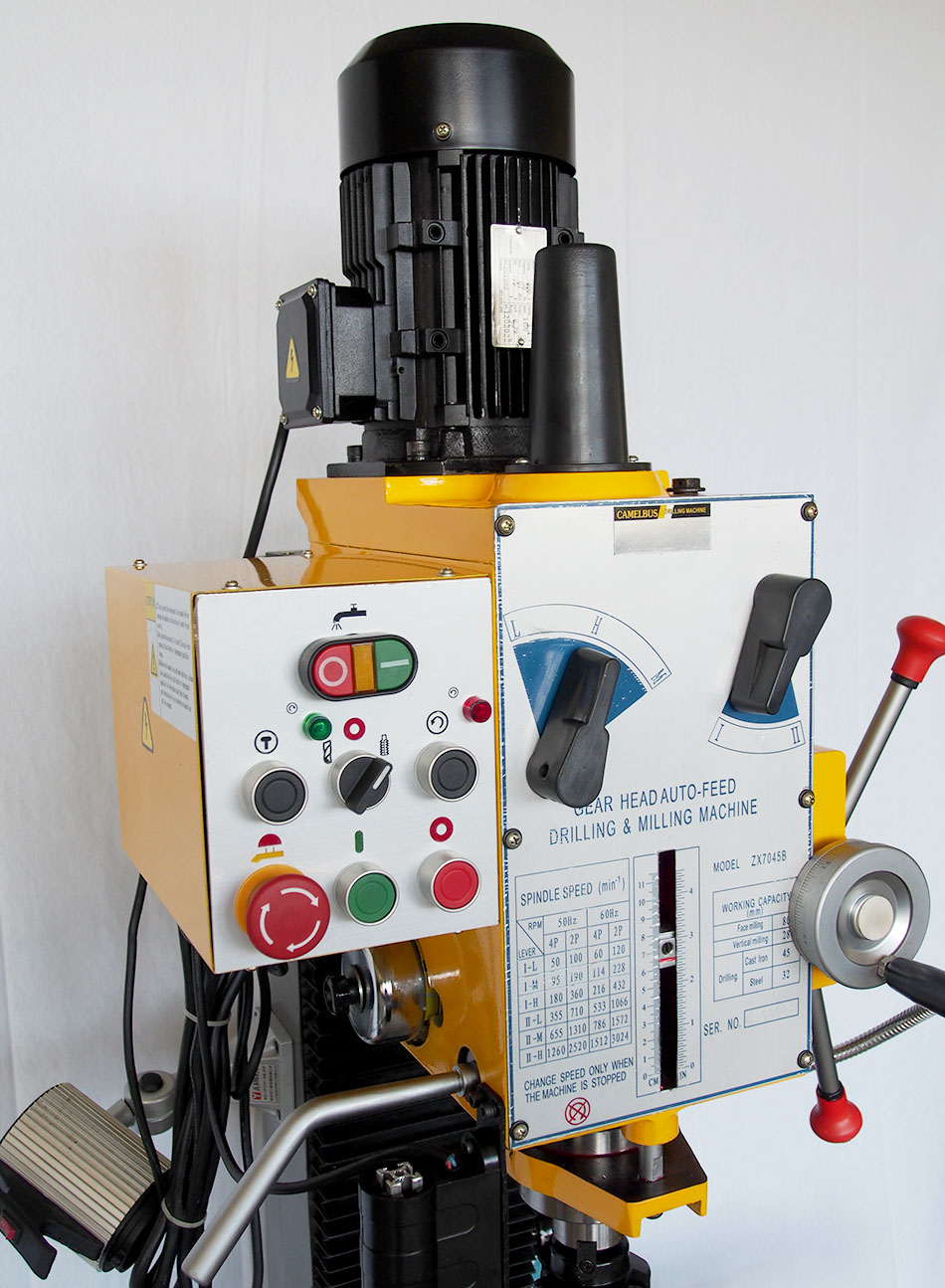

AUTO FEEDING GEAR BOX  AND COOLANT AS STANDARD






Technical data:

MODEL

ZX- 40PBC


Spindle taper

MT 4/R8

Swivel headstock

45°

Max.Drilling capacity

45 mm

Diameter of vertical milling

28mm

Max. face mill capacity

80 mm

Spindle feeds

0.12; 0.18; 0.25 mm / r

Distance spindle axis to column generating line

260 mm

Max.Distance spindle nose to table

450 mm

Spindle travel

110 mm

Dimension of worktable surface

585 x 190mm

Spindle speeds range

50-1250 r / min (6 speeds)
50-2500r/min(12speeeds))

Motor

1.1KW(SINGLE PHASE)
1,5 kW(THREE PHASE)

Voltage

230V/400 V

Weight

390 kg

Packing dimension

860 x 740 x 1160 mm

Standard accessoeries

Reducer sleeve

MT4/MT3

MT3/MT2

Drill chuck 1-13 mm
