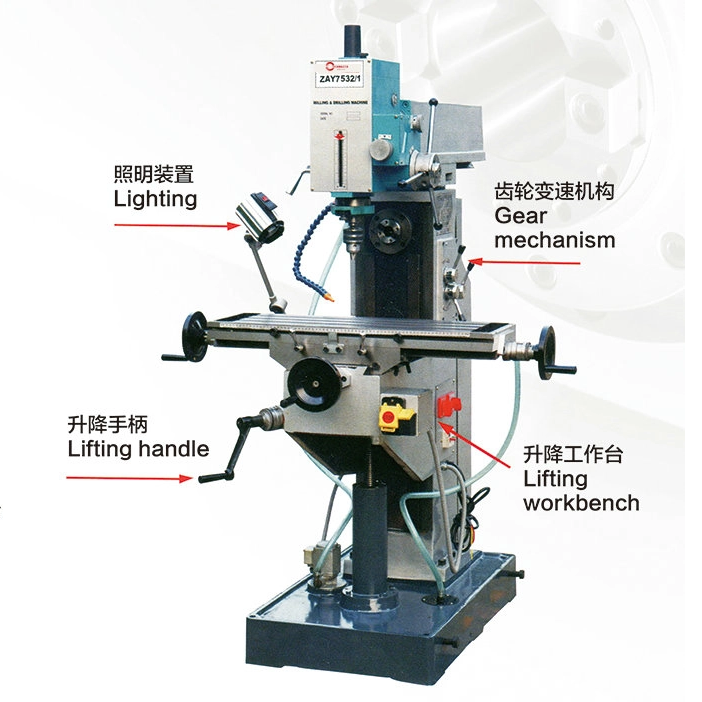

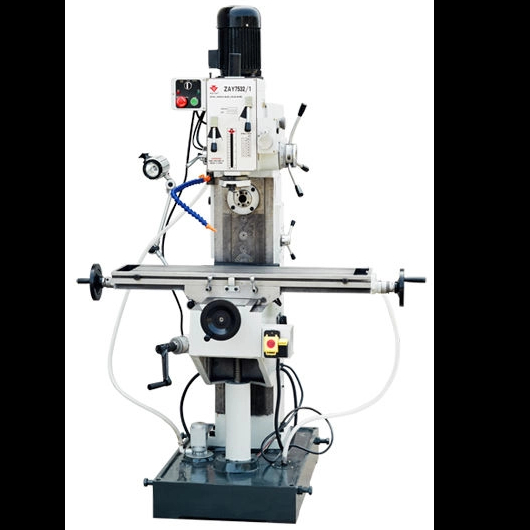

The main performance characteristics:
Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system

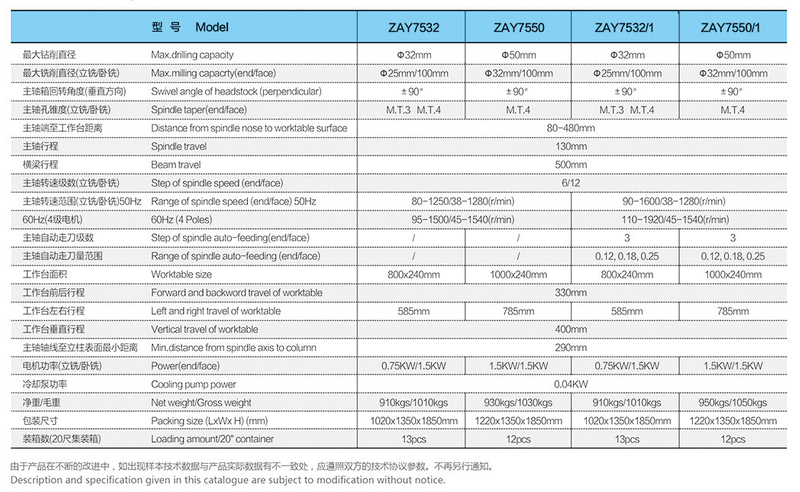

Product main technical parameters:
| ITEM | ZAY7532/1 | ZAY7540/1 | ZAY7550/1 |
| Max.drilling capacity | 32mm | 40mm | 50mm |
| Max.milling capacity(end/face) | 25/100mm | 32/100mm | 32/100mm |
| Swivel angle of headstock(perpendicular) | ±90° | ±90° | ±90° |
| spindle taper(end/face) | M.T.3 M.T.4 | M.T.4 | M.T.4 |
| Distance from spindle nose to worktable surface | 80-480mm | 80-480mm | 80-480mm |
| spindle travel | 130mm | 130mm | 130mm |
| beam travel | 500mm | 500mm | 500mm |
| step of spindle speed(end/face) | 6\12 | 6\12 | 6\12 |
| Range of spindle speed(end/face) 50HZ | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) |
| 60HZ (4 poles) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) |
| Step of spindle auto-feeding(end/face) | 3 | 3 | 3 |
| Range of spindle auto-feeding(end/face) | 0.12 0.18 0.25 | 0.12 0.18 0.25 | 0.12 0.18 0.25 |
| Worktable size | 800×240mm | 800×240mm | 1000×240mm |
| Forward and afterward travel of worktable | 300mm | 300mm | 300mm |
| Left anf right travel of worktable | 585mm | 585mm | 785mm |
| Vertical travel of worktable | 400mm | 400mm | 400mm |
| Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
| Power(end/face) | 0.75KW(1HP)/1.5KW | 1.1KW(1.5HP)/1.5KW | 1.5KW(2HP)/1.5KW |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 930kg/1030kg | 933kg/1033kg | 950kg/1050kg |
| Packing size | 1020×1350×1850mm | 1020×1350×1850mm | 1220×1350×1850mm |

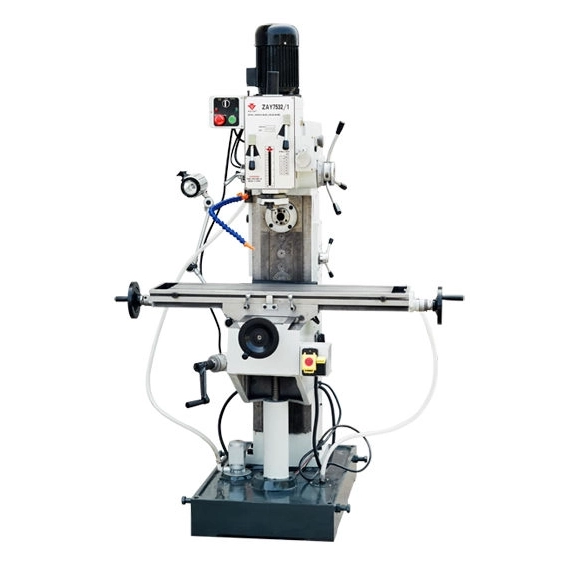

The main performance characteristics:
Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical parameters:
| ITEM | ZAY7532/1 | ZAY7540/1 | ZAY7550/1 |
| Max.drilling capacity | 32mm | 40mm | 50mm |
| Max.milling capacity(end/face) | 25/100mm | 32/100mm | 32/100mm |
| Swivel angle of headstock(perpendicular) | ±90° | ±90° | ±90° |
| spindle taper(end/face) | M.T.3 M.T.4 | M.T.4 | M.T.4 |
| Distance from spindle nose to worktable surface | 80-480mm | 80-480mm | 80-480mm |
| spindle travel | 130mm | 130mm | 130mm |
| beam travel | 500mm | 500mm | 500mm |
| step of spindle speed(end/face) | 6\12 | 6\12 | 6\12 |
| Range of spindle speed(end/face) 50HZ | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) |
| 60HZ (4 poles) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) |
| Step of spindle auto-feeding(end/face) | 3 | 3 | 3 |
| Range of spindle auto-feeding(end/face) | 0.12 0.18 0.25 | 0.12 0.18 0.25 | 0.12 0.18 0.25 |
| Worktable size | 800×240mm | 800×240mm | 1000×240mm |
| Forward and afterward travel of worktable | 300mm | 300mm | 300mm |
| Left anf right travel of worktable | 585mm | 585mm | 785mm |
| Vertical travel of worktable | 400mm | 400mm | 400mm |
| Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
| Power(end/face) | 0.75KW(1HP)/1.5KW | 1.1KW(1.5HP)/1.5KW | 1.5KW(2HP)/1.5KW |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 930kg/1030kg | 933kg/1033kg | 950kg/1050kg |
| Packing size | 1020×1350×1850mm | 1020×1350×1850mm | 1220×1350×1850mm |
