BELT DRIVE LATHE T700
Quantity: -
BELT DRIVE LATHE T700
Product Description
T700 BELT DRIVE LATHE
FEATURES:
Smooth and steady feed gear box with gears in oil bath
Spindle of larger capacity taper of MT5 and bore of 38 mm
Double Vee-Bed way is induction hardened and precision ground
Strong power( DC motor with stepless speed controler,) allows high torque for turning at low speed
Spindle is supported by precision bearings
Longitudinal feed allows threading
Left or right hand threads cutting is provided

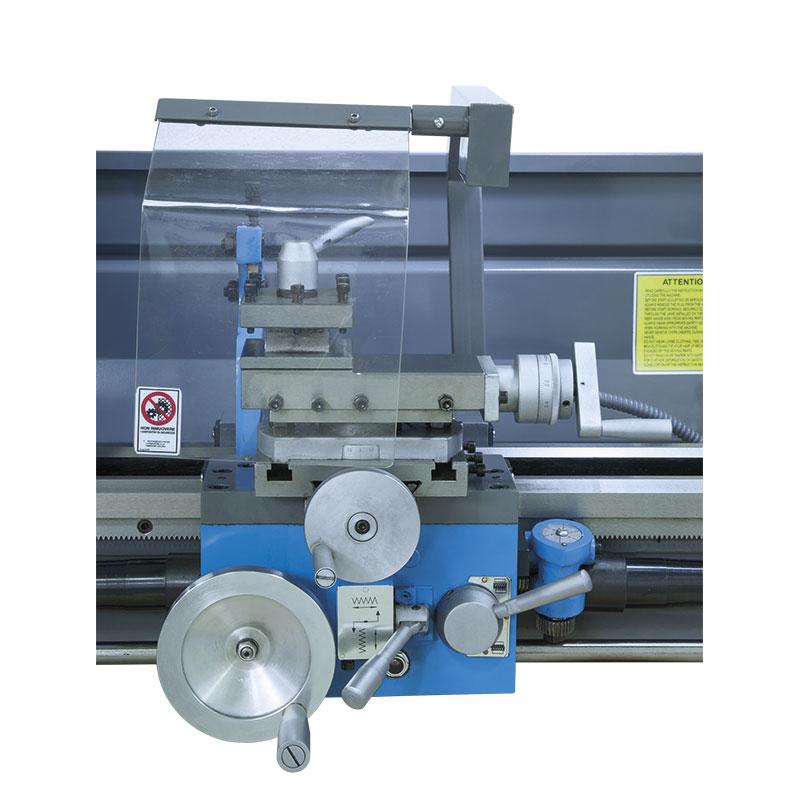

T- Slotted cross slide

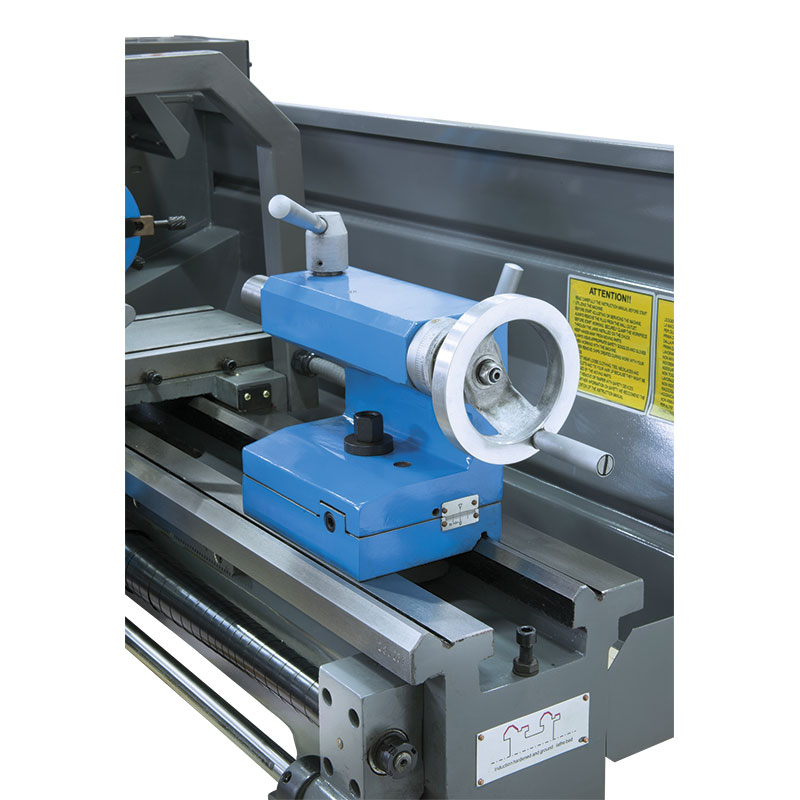

Tailstock offset allows taper turning
Adjustable gibs for sliding ways
Magnetic safety switch with emergency stop
Combined switch for spindle forward/ reverse turning
STANDARD ACCESSORIES:
Digital speed indication
3 Jaw Chuck Φ125 mm,
Dead Centers MT3 and MT4

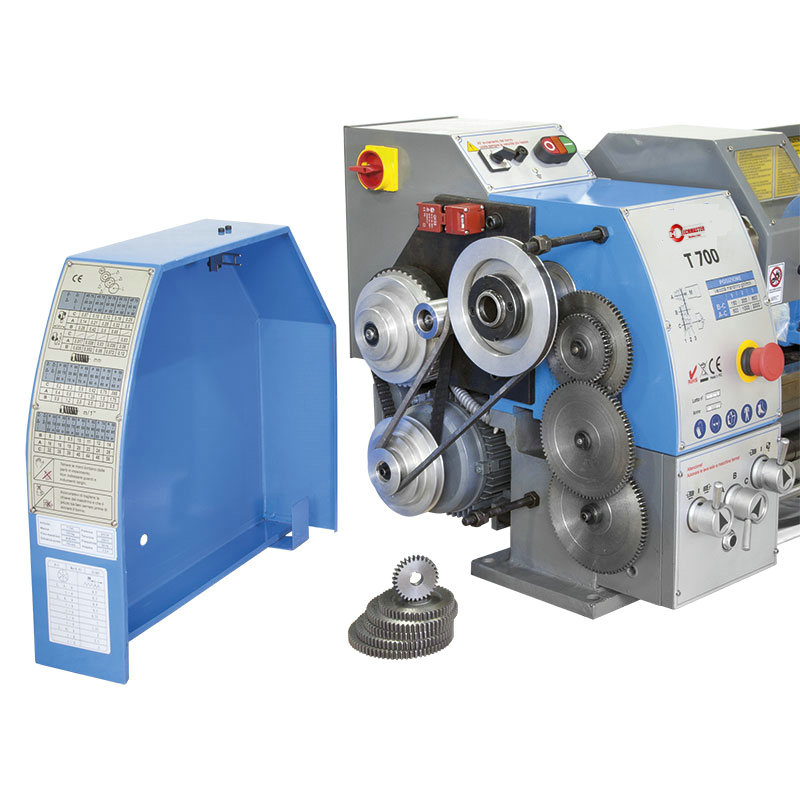

Change Gears Set,
Spray Guard
Chip Tray,
4-way tool post holde
Tool Box with Tools
OPTIONAL ACCESSORIES:
2-Axis Digital Readouts
Steady Rest,
Follow Rest
Face Plate Φ240 mm
Cabinet Stands,
Rolling Center MT3
4 Jaw Chuck with Flange Φ160 mm forProfi 290V
Spindle Collet Chuck Holder ER32
Chuck Collet Set ER32- 18pcs, 3-20mm
Quick Change Tool Post Holder Set QTH-A
Indexable Carbide Turning Tool Set 12mm, 9pcs
Technical Data T700 BELT DRIVE Swing Over Bed 280 mm Distance Between Centers 700 mm Cener height 140mm Swing over cross slide 180 Spindle Taper MT4 Spindle Bore 26 mm Spindle Nose Camlock D1-4 Spindle Speed Variable (6)125- 2200 rpm Bed Width 180 mm Top Slide Travel 70 mm Cross Slide Travel 160 mm Range of Auto-Longitudinal Feeds 0.08- 0.80mm/rev. Rangeof Auto-Crossfeeds 0.01-0.10mm/rev Rangeof MetricThreads 0.2- 3.5 mm Rangeof InchThreads 8- 56 TPI Tailstock Quill Travel 70 mm Tailstock Quill Taper MT3 Motor Power 1.5KW / 230V/ 50 Hz Net Wight 260Kg Packing Size 750 x 700 x 1450 mm
