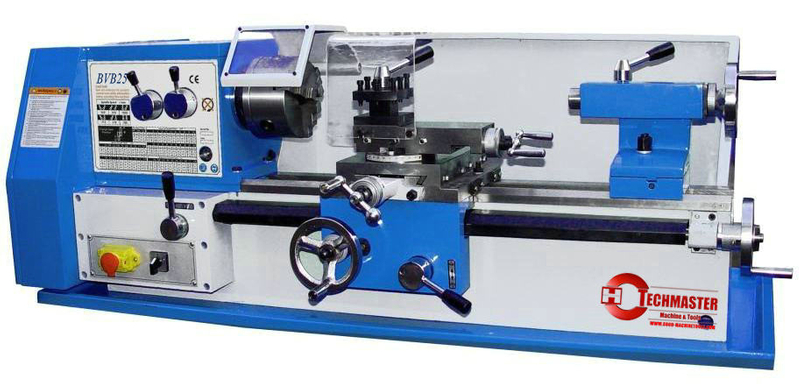

BENCH LATHE BVB25 450MM /700MM
| MODEL | BVB25.BVB25L |
| Distance between centers | 450/700 mm |
| Swing over bed | 250 mm |
| Swing over cross slide | 130 mm |
| Width of bed | 125 mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 26 mm |
| Number of spindle speeds | 6 |
| Range of spindle speeds | 115-1620 rpm |
| Range of longitudinal feeds | 0.05-0.1 mm/r |
| Range of inch threads | 8-56 T.P.I |
| Range of metric threads | 0.2-3.5 mm |
| Top slide travel | 25 mm |
| Cross slide travel | 114 mm |
| Tailstock quill travel | 70 mm |
| Taper of tailstock quill | MT3 |
| Motor | 750W |
| Packing size | 1260/1510x570x500 mm |
| Net weight | 120/135 kg |
| MODEL | BVB25.BVB25L |
| Distance between centers | 450/700 mm |
| Swing over bed | 250 mm |
| Swing over cross slide | 130 mm |
| Width of bed | 125 mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 26 mm |
| Number of spindle speeds | 6 |
| Range of spindle speeds | 115-1620 rpm |
| Range of longitudinal feeds | 0.05-0.1 mm/r |
| Range of inch threads | 8-56 T.P.I |
| Range of metric threads | 0.2-3.5 mm |
| Top slide travel | 25 mm |
| Cross slide travel | 114 mm |
| Tailstock quill travel | 70 mm |
| Taper of tailstock quill | MT3 |
| Motor | 750W |
| Packing size | 1260/1510x570x500 mm |
| Net weight | 120/135 kg |
