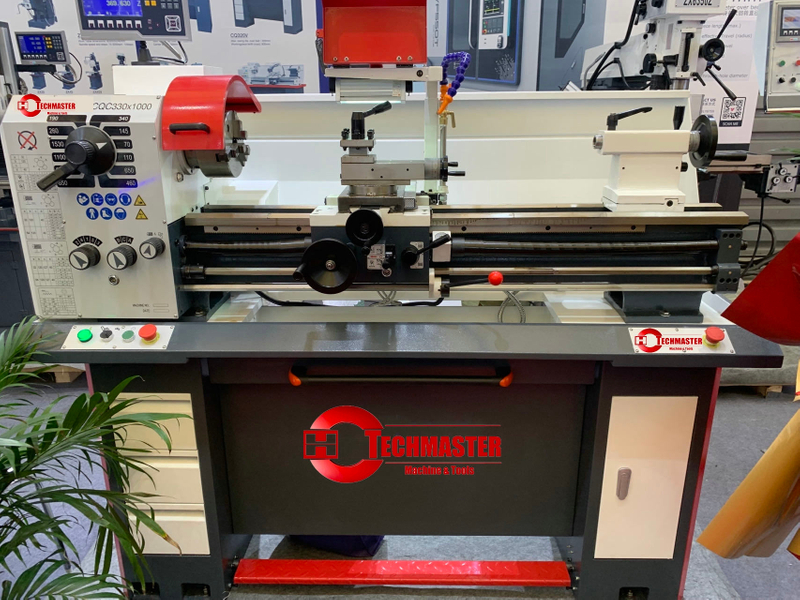

BENCH LATHE CQC330X1000
Quantity: -
CQC330X1000
Specification Models ML260×610/815 ML280×610/815 ML300A×/610/815 ML310V×610/815 Capacity Distance Between Centers 610mm/815mm Swing Over Bed 280mm 310mm Swing Over Cross Slide 165mm 195mm Width of Bed 150mm 150mm Cutting Tool Max. Section 12×12mm 16×16mm Total Travel of Cross Slide 135mm 150mm Total Travel of Top Slide 70mm Headstock Spindle Speeds Number 12 Stepless speed regulation in gear Spindle Speeds Range 80-1600r.p.m 45-2000r.p.m 55-1700r.p.m Low gear：45-750r.p.m
High gear：120-2000r.p.mSpindle Bore φ26mm φ38mm Spindle Nose Short cylindrical connection D1-4 Spindle reducing bush taper M.T.No.4/M.T.No.2 or M.T.No.4/M.T.No.3 M.T.No.5/M.T.No.2 or M.T.No.5/M.T.No.3 Thread & Feeds Lead screw Diameter & Thread φ20mm×2.5mm / φ20mm×3.0mm Threads Metric Pitches 0.25-5mm(21nos) / 0.25-2.5mm(14nos) Threads Imperial Pitches 6-96T.P.I.(13nos) / 12-96T.P.I.(9nos) Longitudinal Feeds Metric 0.044-0.437mm/Rev(14nos) / 0.036-0.364mm/Rev(14nos) Cross Feeds Metric 0.022-0.218mm/Rev(14nos) /0.018-0.182mm/Rev(14nos) Tailstock Total Travel of Tailstock Quill 95mm（M.T.No.2） or 85mm（M.T.No.3） 90mm（M.T.No.2） or 80mm（M.T.No.3） Tailstock Quill Diameter φ30mm Taper In Tailstock Quill M.T.No.2 or M.T.No.3 Motor Spindle Drive Motor 750W 1.1KW Coolant Pump Motor 40W Weight & Measures Machine Space Required(L×W×H): mm 1216×590×515
/1416×590×515(For reference only)Packing Case Dimensions(L×W×H): mm 1165×580×620 1265×580×620
/1465×580×620（For reference only）Net Weight 332.5kg/342.5kg
（For reference only）Specification Models ML260×610/815 ML280×610/815 ML300A×/610/815 ML310V×610/815 Capacity Distance Between Centers 610mm/815mm Swing Over Bed 280mm 310mm Swing Over Cross Slide 165mm 195mm Width of Bed 150mm 150mm Cutting Tool Max. Section 12×12mm 16×16mm Total Travel of Cross Slide 135mm 150mm Total Travel of Top Slide 70mm Headstock Spindle Speeds Number 12 Stepless speed regulation in gear Spindle Speeds Range 80-1600r.p.m 45-2000r.p.m 55-1700r.p.m Low gear：45-750r.p.m
High gear：120-2000r.p.mSpindle Bore φ26mm φ38mm Spindle Nose Short cylindrical connection D1-4 Spindle reducing bush taper M.T.No.4/M.T.No.2 or M.T.No.4/M.T.No.3 M.T.No.5/M.T.No.2 or M.T.No.5/M.T.No.3 Thread & Feeds Lead screw Diameter & Thread φ20mm×2.5mm / φ20mm×3.0mm Threads Metric Pitches 0.25-5mm(21nos) / 0.25-2.5mm(14nos) Threads Imperial Pitches 6-96T.P.I.(13nos) / 12-96T.P.I.(9nos) Longitudinal Feeds Metric 0.044-0.437mm/Rev(14nos) / 0.036-0.364mm/Rev(14nos) Cross Feeds Metric 0.022-0.218mm/Rev(14nos) /0.018-0.182mm/Rev(14nos) Tailstock Total Travel of Tailstock Quill 95mm（M.T.No.2） or 85mm（M.T.No.3） 90mm（M.T.No.2） or 80mm（M.T.No.3） Tailstock Quill Diameter φ30mm Taper In Tailstock Quill M.T.No.2 or M.T.No.3 Motor Spindle Drive Motor 750W 1.1KW Coolant Pump Motor 40W Weight & Measures Machine Space Required(L×W×H): mm 1216×590×515
/1416×590×515(For reference only)Packing Case Dimensions(L×W×H): mm 1165×580×620 1265×580×620
/1465×580×620（For reference only）Net Weight 332.5kg/342.5kg
（For reference only）
