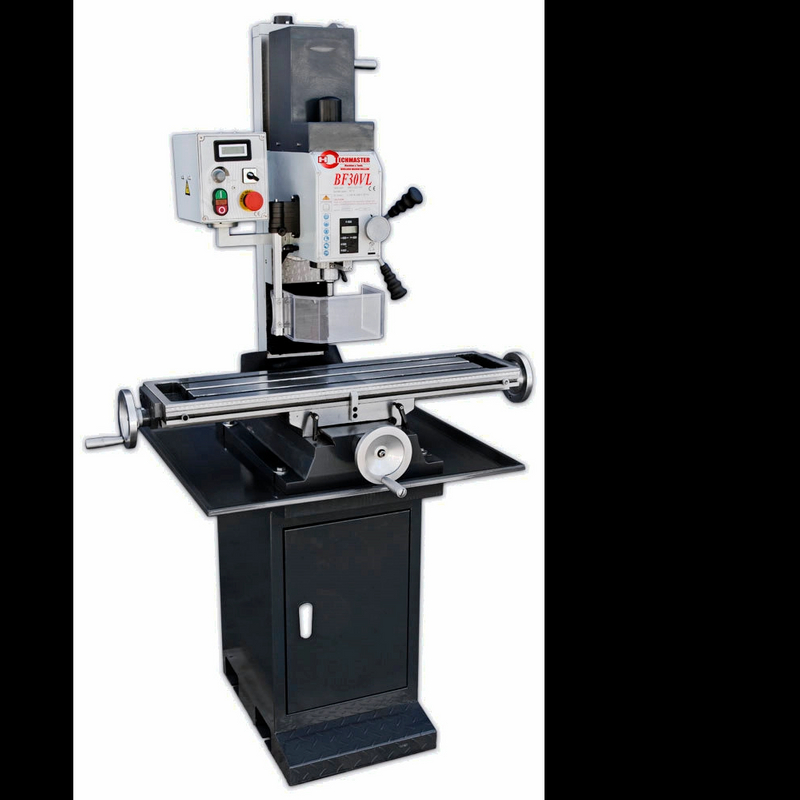

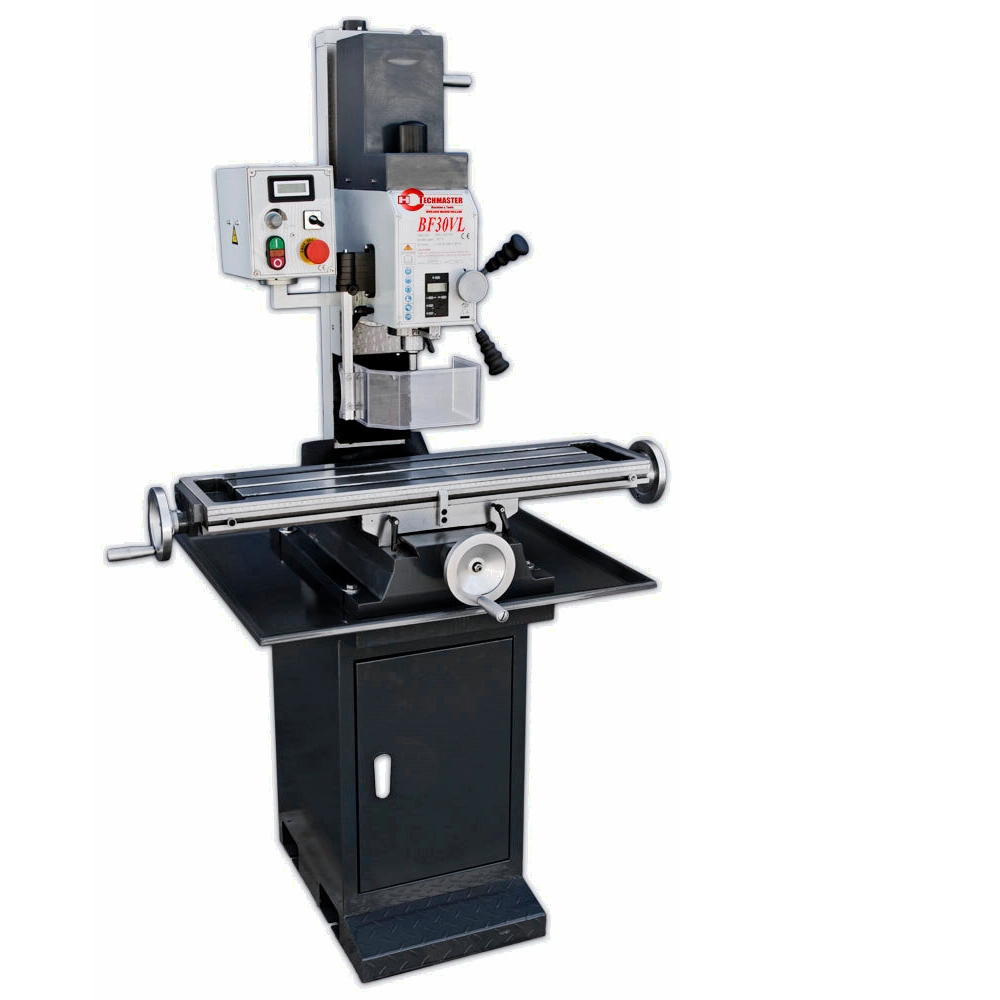

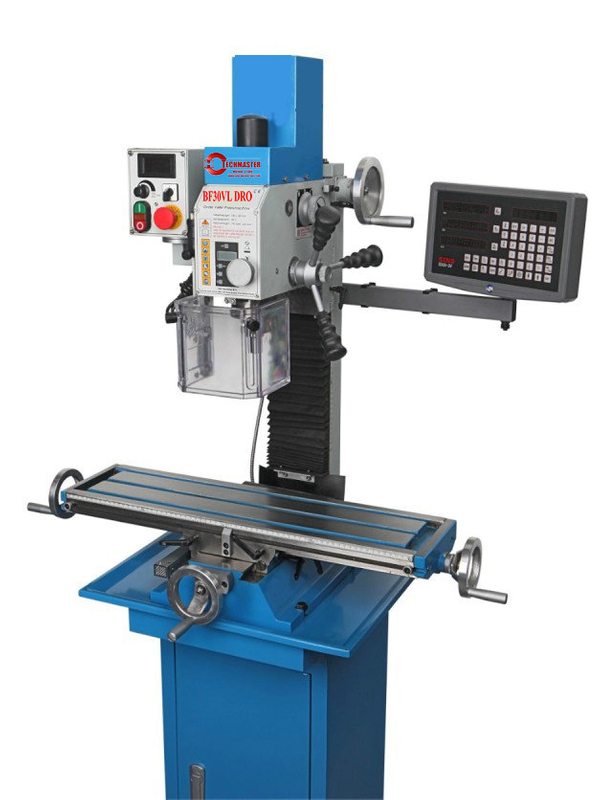

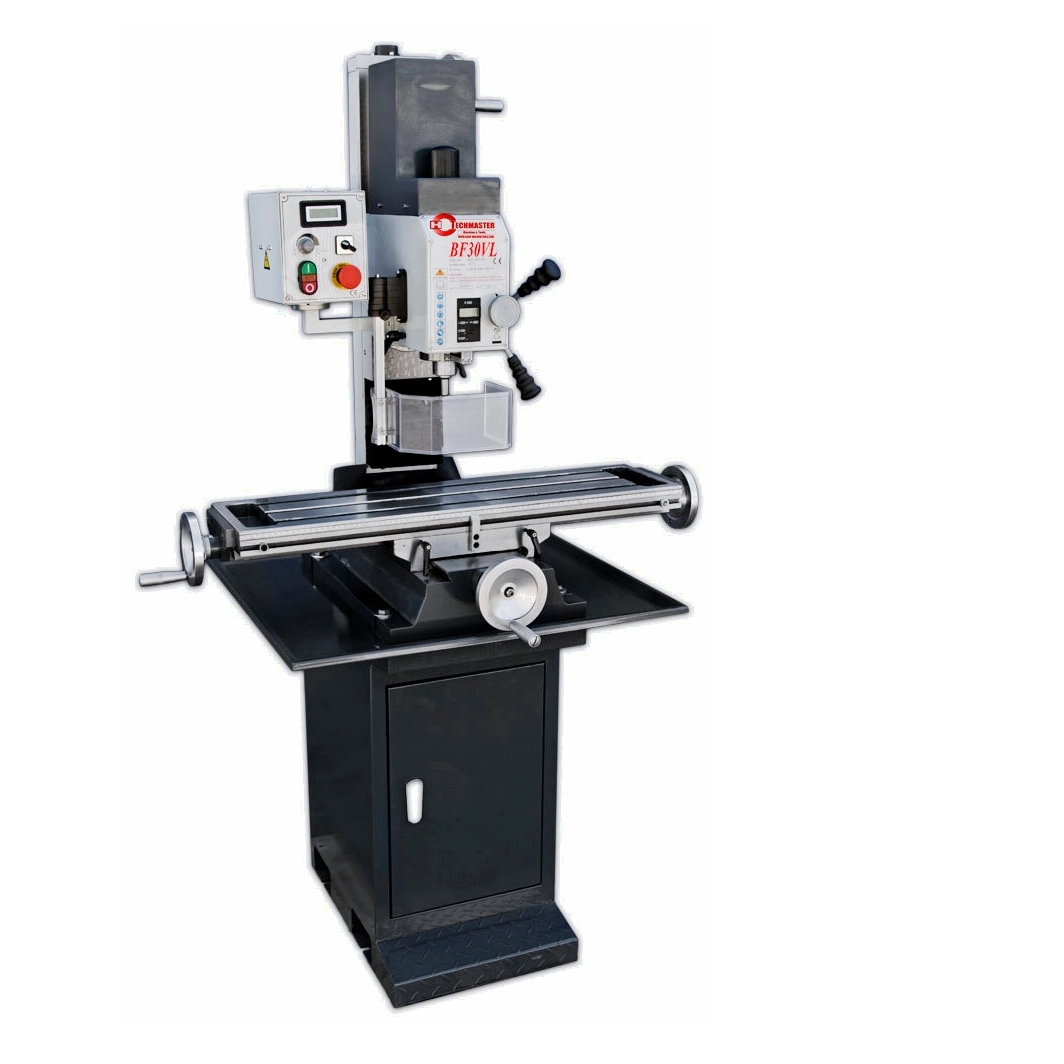

| FEATURE: ● Compact, accurate variable speed milling & drilling machine. ● Variable speed enables to operate easily. ● Spindle is supported by high precision taper roller bearing. ● Gear head provides powerful torque ● Mill head can be tilted ±90°. ● Precision manual fine down feed. ● Adjusted taper gibs. ● Positive locks for table, head, quill. ● Easy reading scale has satin chrome finish. ● Digital depth ruler, accuracy of the display 0.01 mm, reversible mm/inch. ● Easy to read speed counter. ● Equipped with emergency stop button. ● Tolerance test certificate, test flow chart included. |
| Model No. | BF30V | BF30VL |
| Specifications | ||
| Max. drilling capacity | 32 mm | 32 mm |
| Max. end milling capacity | 20 mm | 20 mm |
| Max. face milling capacity | 76 mm | 76 mm |
| Table size | 700 x 210 mm | 840 x 210 mm |
| Table travel (X,Y) | 425 x 210 mm | 565 x 210 mm |
| T-slot | 3 x 12 mm | 3 x 12 mm |
| Spindle taper | MT3 or R8 | MT3 |
| Spindle stroke | 70 mm | 70 mm |
| Step of spindle speeds | Variable | Variable |
| Range of spindle speeds | 50~2250 rpm | 50~2250 rpm |
| Spindle incline angle | ±90° | ±90° |
| Distance from spindle to column | 240 mm | 240 mm |
| Distance from spindle nose to table | 360 mm | 360 mm |
| Motor | 1.1 kw | 1.1 kw |
| Packing size | 710 x 890 x 1120 mm | 710 x 890 x 1120 mm |
| Net weight | 220 kg | 240 kg |
