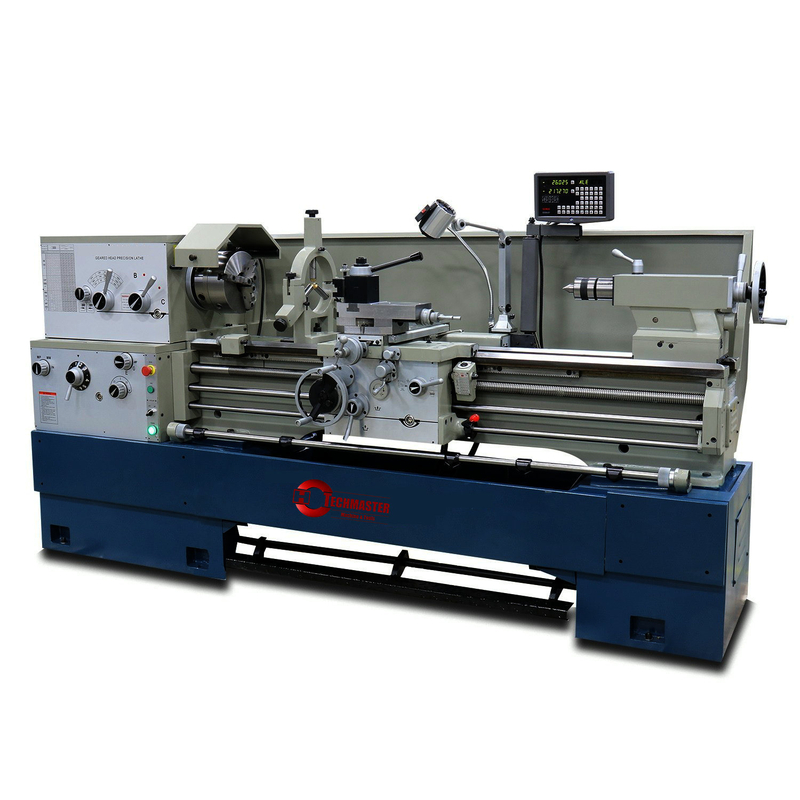

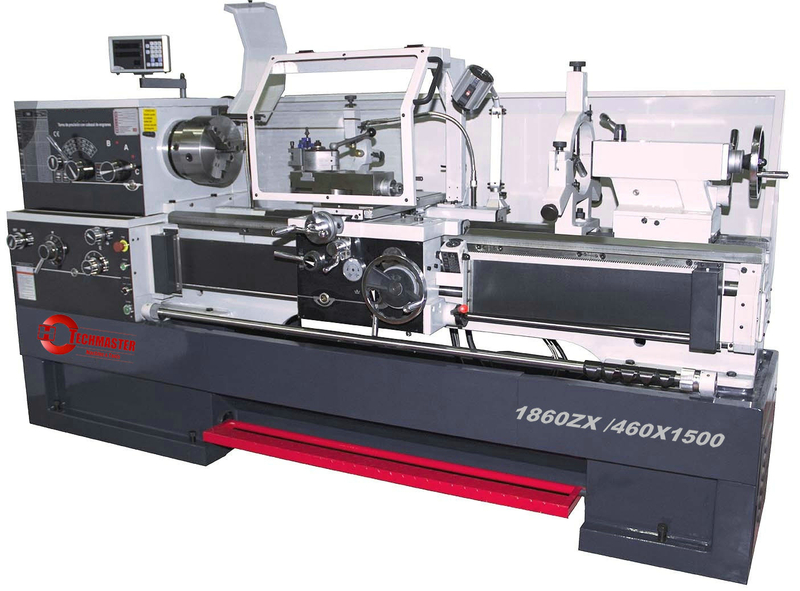

BIG BORE GAP BED LATHE C6236ZX-C6240ZX-C6246ZX

Quantity:
  • C6236ZX-C6240ZX-C6246ZX





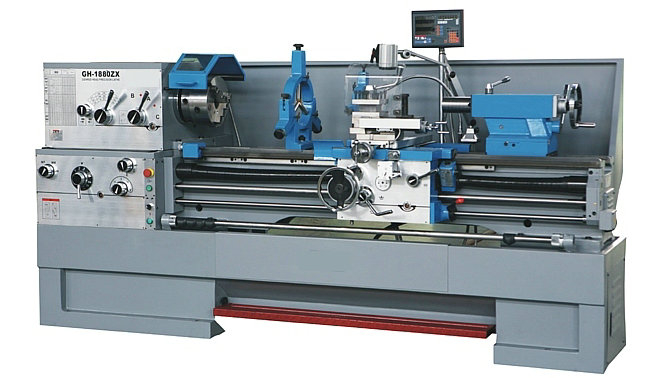

Applications of GH1440ZX GH1460ZX GH1640ZX GH1660ZX GH1840ZX GH1860ZX GH1880ZX Turning Lathe
GH1440ZX GH1460ZX GH1640ZX GH1660ZX GH1840ZX GH1860ZX GH1880ZX Speed Precision Manual Turning Lathe machine tool is ideal for machining internal, external and cylindrical surfaces as well as other rotary surfaces. It is suitable for cutting various metric, Whitworth threads; and conventional turning, facing, drilling, reaming and broaching are also available.

Features of GH1440ZX GH1460ZX GH1640ZX GH1660ZX GH1840ZX GH1860ZX GH1880ZX Turning Lathe
1. Induction-hardened and ground cast iron integrated bed stand. The surface of the Turning Lathe bed ways is supersonic frequency hardened and precision ground;

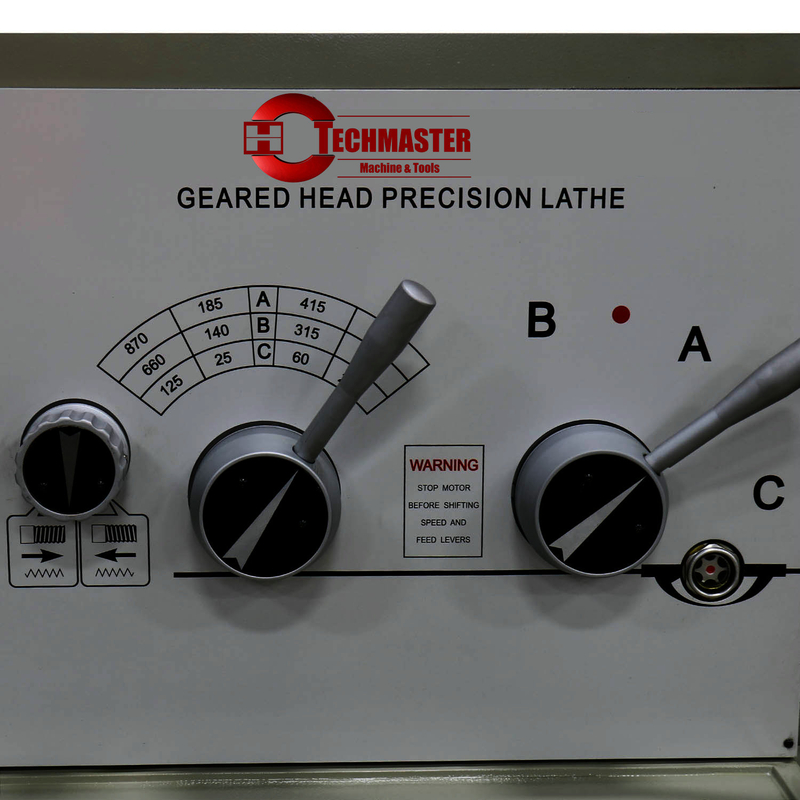

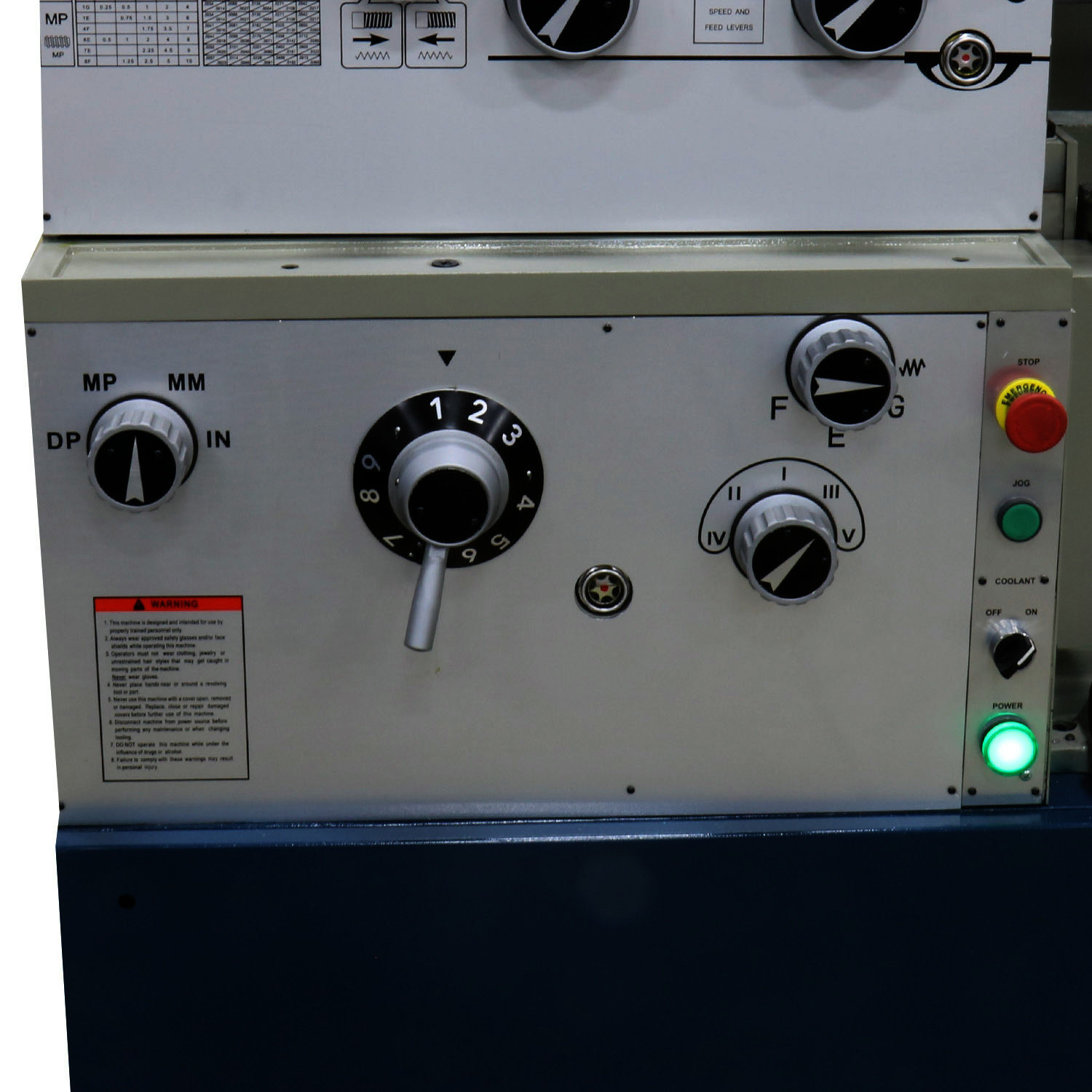

2. Hardened and ground gears in headstock and gear box. The design of the main turning lathe drive is optimized and the gears in the headstock are precision ground. Gear box makes it possible to cut a number of threads without changing the gears. Permanently lubricated main, feed and apron gear;
3. The noise of Speed Precision Manual Turning Lathe is low and its sound is pleasing to hear;
4. The turning lathe spindle bore size is Φ80mm.The spindle system is high in rigidity and accuracy;
5. There is no vibration when turning with a heavy cutting depth of 10mm;
6. There is no need for change gears. Heavy cutting Lathe can turn about 200 kinds of metric, whitworth, module and D. P. Threads including special whitworth threads such as 7-1/2, 9-1/2,10-1/2, 11, 11-1/2, 13, 13-1/2,19,27t.p.i .and pipe threads;

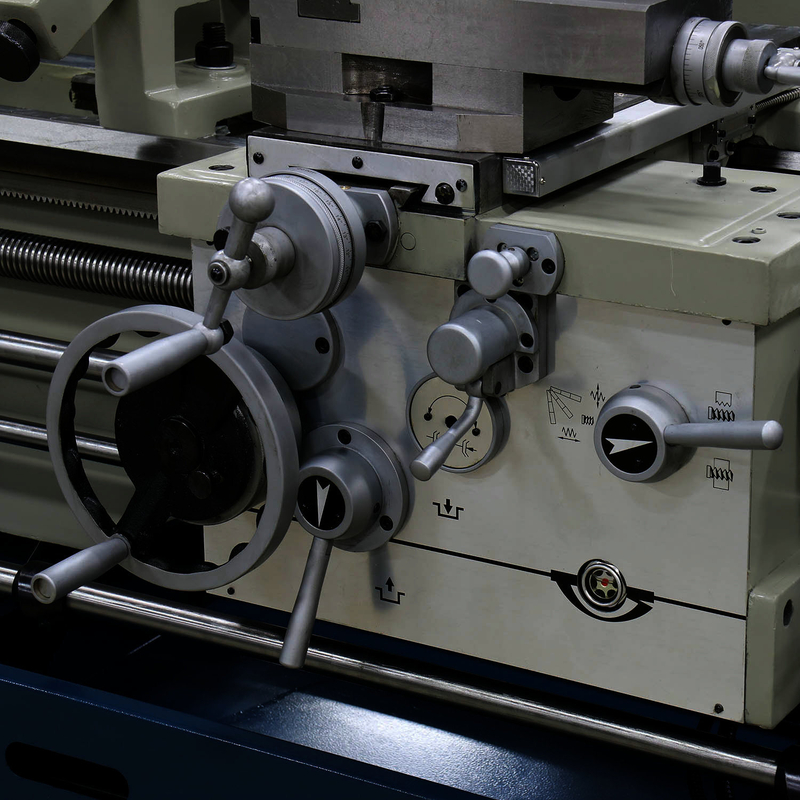

7. An automatic stopping device is used on ZX Precision Manual Turning Lathe to realize automatic stop for the machining of a certain length workpiece, which is safe and reliable; Carriage guide Turcite-B coated. Central lubrication for carriage;
8. A pedal or electromagnetic braking device stops the lathe machine quickly and effectively;
9. Spindle jog control, right and left hand operation; Guides adjustable without play via V-ledges;
10. Transversal adjustment of tailstock for taper cuts. Tailstock sleeve and hand wheel with adjustable precision scale;

C6236ZX, C6240ZX, C6246ZX Speed Precision Manual Turning Lathe can be user selectable available:
Metric leadscrew, Whitworth leadscrew, left or right wheel slip plate boxes, all kinds of voltage and frequency of main motor;

Model
C6236ZX
C6240ZX
C6246ZX
GH1460ZX
GH1440ZX
GH1660ZX
GH1640ZX
GH1880ZX
GH1860ZX
GH1840ZX
Max. length of workpiece
1500mm (60'')
1000mm (40'')
1500mm (60'')
1000mm (40'')
2000mm (80")
1500mm (60'')
1000mm (40'')
Max. swing
Over bed
Φ360mm(14”)
Φ410mm(16”)
Φ460mm (18”)
Over carriage
Φ200mm(7-2/3”)
Φ250mm(10”)
Φ290mm (10-4/5”)
In gap
Φ600mm(23-5/8”)
Φ660mm(26”)
Φ700mm (27-1/2”)
Effective gap length
200mm (8")
Bed width
336mm (13'')
Capacity of steady rest
12mm~178mm (0.47''~7'')
Capacity of follow rest
15mm~90mm (0.59''~3.54'')
Spindle
Spindle bore
Φ80mm (3-1/8”)
Taper of bore
MT-7 (MT-5)
Spindle port: Camlock
D1-6
Number of speed
12 steps
Range of speed
42-1800rpm
42-1800rpm or 25-1800rpm
Thread cutting
Metric Range/No
Whitworth Range
D.P. Range/No
Module Range/No
0.5~20mm /24
72~15/8TPI /61
96~31/4DP /45
0.25~10MP /20
Range of feeds
Longitudinal
0.04~2.46mm/r (0.0015”~0.0913”/r)
Cross
0.02~1.23mm/r (0.0005”~0.0365”/r)
Tailstock sleeve
External diameter
Φ75mm (3”)
Taper of bore
MT-4
MT-4
MT-5
Max. traverse
130mm (5”)
Max travel of compound rest
100mm (4”)
Max travel of cross slide
280mm (11”)
Max tool size (W x H)
25x25mm (1''x1'')
Power of main motor (double speeds)
5.5kW / 7.5Hp
Overall dimensions (L x W x H)
2810/2310x1000x1255mm
(111''/91''x39''x49'')
3300/2810/2310x1000x1275mm
(130''/111''/91''x39''x50'')
3320/2810/2310x1100x1295mm
(131''/111''/91''x4''x51'')
Net weight (kg)
2550kg
2250kg
2600kg
2300kg
2900kg
2650kg
2350kg
Main power input (230V)
8800W/S6-40%
Main power output (230V)
5600W/S1 100
Standard accessories of GH1440ZX, GH1460ZX, GH1640ZX, GH1660ZX, GH1840ZX, GH1860ZX, GH1880ZX Precision Manual Turning Lathe
1. 3-Jaw Φ250mm (10”) Chuck;     2. 4-Jaw Φ300mm (12”) Chuck;
3. Steady Rest: 20-180mm;            4. Follow Rest: 12-90mm;
5. Face Plate;                                6. Coolant System;
7. Work Light;                                8. Tool box;

Optional accessories of GH1440ZX, GH1460ZX, GH1640ZX, GH1660ZX, GH1840ZX, GH1860ZX, GH1880ZX Precision Manual Turning Lathe
1. Taper turning attachment;            2. Leadscrew Guard, Chuck Guard;
3. Quick change tool post;              4. 2-Axis or 3-Axis DRO;
