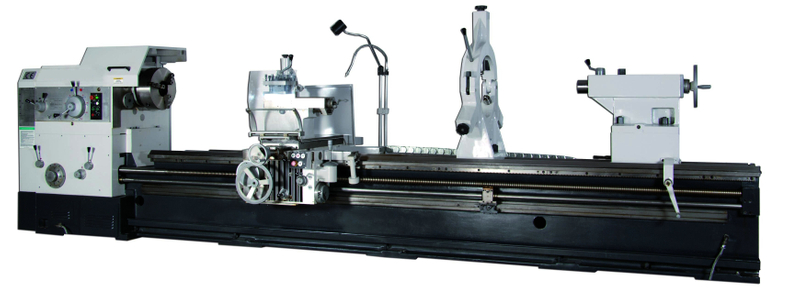

BIG PARALLEL LATHE TPG1100X5000
| Distance between centers (mm) | 5000 |
| Modular pitch | (53)0,5-120 |
| Diametral pitch | (24) 1-28 |
| Main spindle pitch (mm) | 12 |
| Cross carriage travel (mm) | 500 |
| Carriage travel (mm) | 200 |
| Max. dimension of tool (mm) | 32x32 |
| Diameter tailstock quill (mm) | 100 |
| Tailstock spindle travel (mm) | 250 |
| Tailstock morse taper | MT 5 |
| Power main motor (Kw) | 15 |
| Power of motor pump (Kw) | 0,09 |
| Dimensions (mm) (length x width x height) | 7930x1790x1560 |
| Whitworth pitch per inch | (26) 14-1 |
| Metric pitch | (50)1-120 |
| Swing over bed (mm) | 1100 |
| Swing over ram (mm) | 1300 |
| Swing over carriage (mm) | 800 |
| Bed width (mm) | 600 |
| Length gap | 310 |
| Main spindle hole (mm) | 130 |
| Spindle nose | CAMLOCK Nº11 |
| Main spindle morse taper | MT5 |
| Spindle speed range (rpm) | 5,4-720 |
| Speed number | 18 |
| Longitudinal feed (mm/rev) | (64)0,05-24.3 |
| Cross feed (mm/rev) | (64)0,025-12.15 |
| Net weigth (Kg) | 7600 |
