BIG PARALLEL LATHE TPG1600X1500-15000
Quantity: -

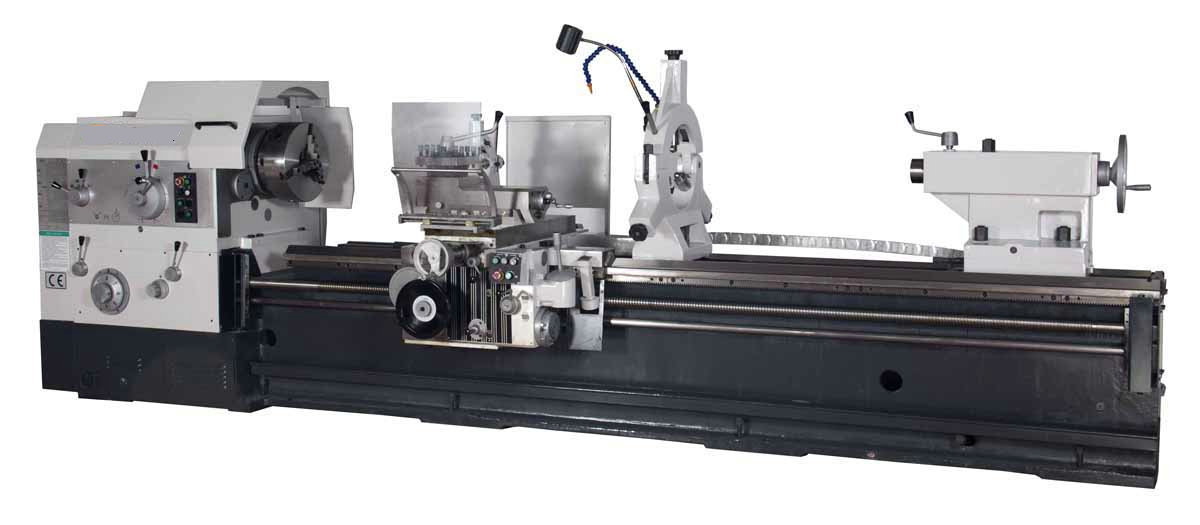

BIG PARALLEL LATHE HELLER TPG1600X1500-15000
BIG PARALLEL LATHE TPG1600X3000-15000
Distance between centers (mm) 3000~15000 Modular pitch (45) 0,5-60 Diametral pitch (38) 1/2-56 Main spindle pitch (mm) 12 Cross carriage travel (mm) 960 Carriage travel (mm) 200 Max. dimension of tool (mm) 45x45 Diameter tailstock quill (mm) 180 Tailstock spindle travel (mm) 300 Tailstock morse taper METRICO 80 Power main motor (Kw) 22 Power of motor pump (Kw) 0,09 Dimensions (mm) (length x width x height) 5650x1550x1630 Whitworth pitch per inch (31) 14-1/4 Metric pitch (44) 1-20 Swing over bed (mm) 1600 Swing over carriage (mm) 1200 Bed width (mm) 1100 Main spindle hole (mm) 130 Spindle speed range (rpm) 2-200 Speed number 21 Longitudinal feed (mm/rev) (56) 0.1-12 Cross feed (mm/rev) (56) 0,05-6 Net weigth (Kg) 5500
BIG PARALLEL LATHE TPG1600X3000-15000
Distance between centers (mm) 3000~15000 Modular pitch (45) 0,5-60 Diametral pitch (38) 1/2-56 Main spindle pitch (mm) 12 Cross carriage travel (mm) 960 Carriage travel (mm) 200 Max. dimension of tool (mm) 45x45 Diameter tailstock quill (mm) 180 Tailstock spindle travel (mm) 300 Tailstock morse taper METRICO 80 Power main motor (Kw) 22 Power of motor pump (Kw) 0,09 Dimensions (mm) (length x width x height) 5650x1550x1630 Whitworth pitch per inch (31) 14-1/4 Metric pitch (44) 1-20 Swing over bed (mm) 1600 Swing over carriage (mm) 1200 Bed width (mm) 1100 Main spindle hole (mm) 130 Spindle speed range (rpm) 2-200 Speed number 21 Longitudinal feed (mm/rev) (56) 0.1-12 Cross feed (mm/rev) (56) 0,05-6 Net weigth (Kg) 5500
