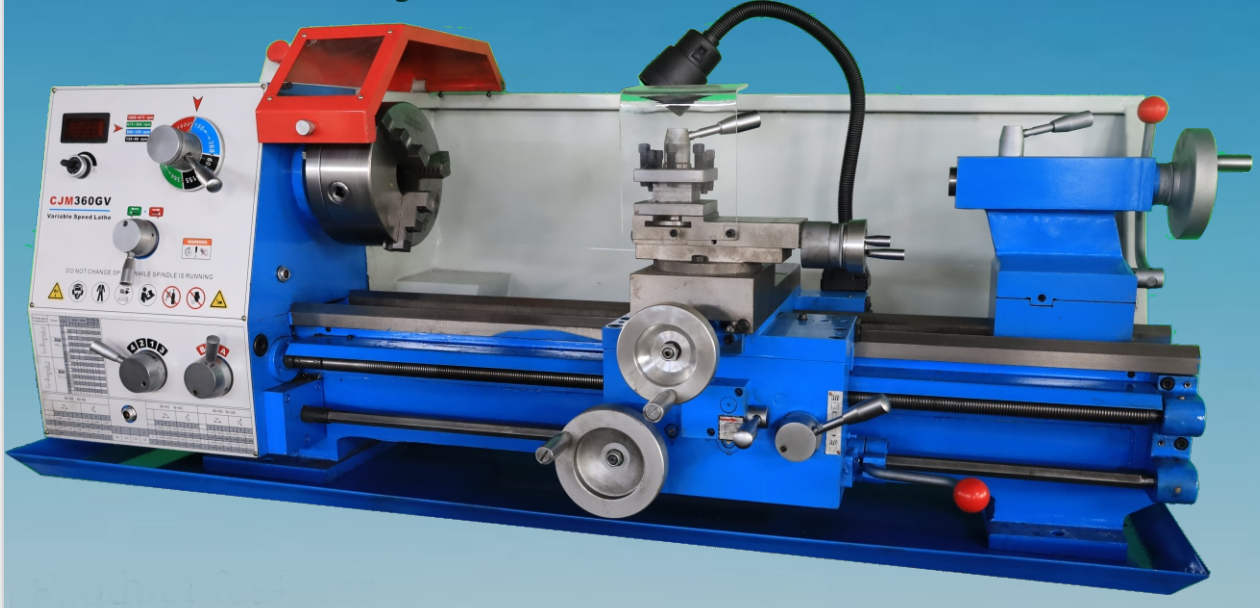

BIG SPINDLE 52MM VARIO STEPLESS LIGHT DUTY LATHE CJM360GV
Quantity: -
CJM360GV/550/750MM

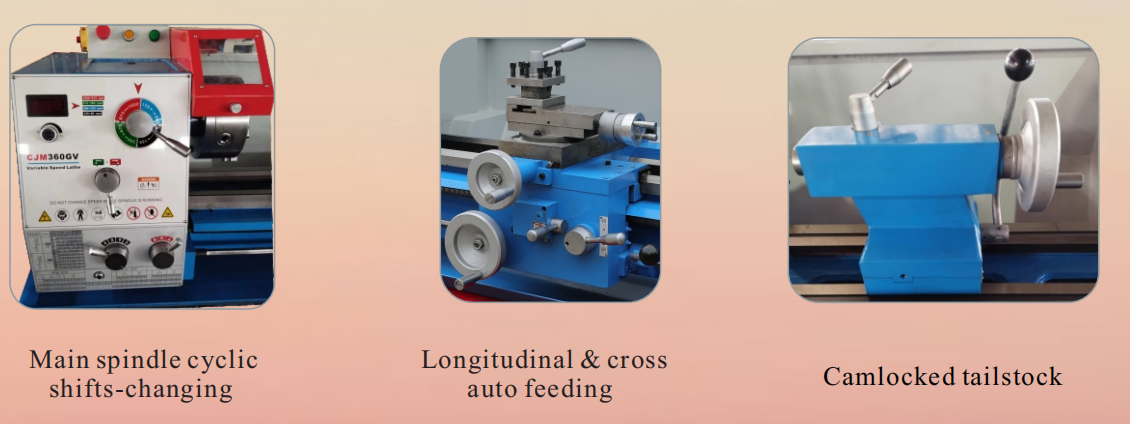

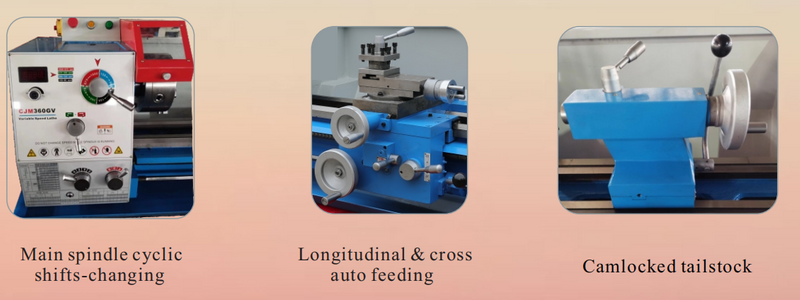

Product features► The headstock is driven by ground gears, and the cyclic shiftschanging by single handle to make the main spindle obtainingfour ranges of speeds. In the selected,range, the speed displaywill show the required cutting speed by adjusting the speed knob.The speed range is with many choics,especially suitable forlow-speed tooling.Large aperture , Spindle through hole φ52►Feeding box with 12 steps of variable speeds,covering common threading pitches.►Longitudinal & cross auto feeding adopts inter-lockstructure with good safety.►High frequency hardened Two V-type widened guidewaywith rigidity.►Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod
Product features► The headstock is driven by ground gears, and the cyclic shiftschanging by single handle to make the main spindle obtainingfour ranges of speeds. In the selected,range, the speed displaywill show the required cutting speed by adjusting the speed knob.The speed range is with many choics,especially suitable forlow-speed tooling.Large aperture , Spindle through hole φ52►Feeding box with 12 steps of variable speeds,covering common threading pitches.►Longitudinal & cross auto feeding adopts inter-lockstructure with good safety.►High frequency hardened Two V-type widened guidewaywith rigidity.►Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod
