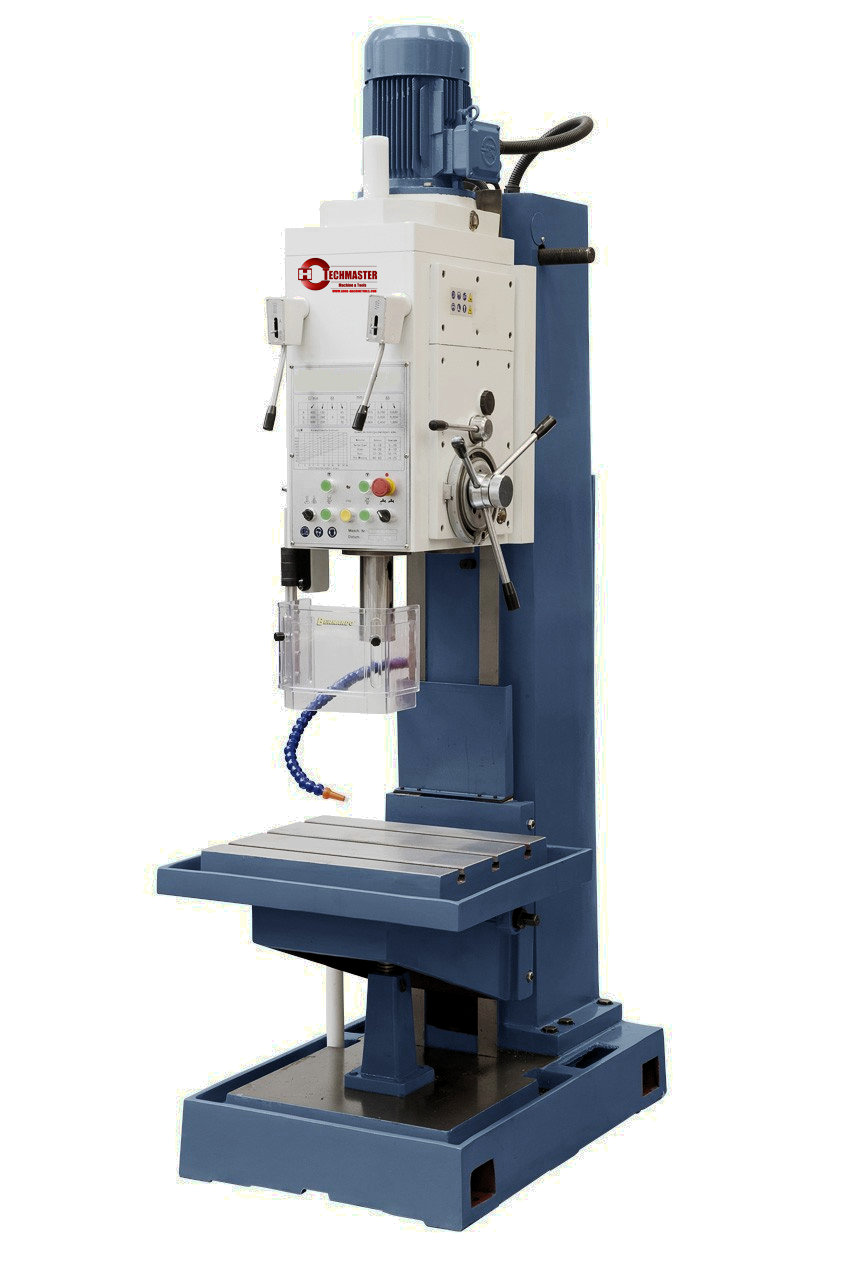

BOX COLUMN DRILL PRESS EUROPE STYLE Z5150B
Quantity: suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
50 mm
Thread cutting max.
M42
Torque
350 Nm
Travel of drill head
195 mm
Morse taper
MT 5
Spindle speed / steps
45 - 850 rpm, 9 steps
Feed range
(9) 0,056 - 1,8 mm/rev.
Feeding force
16000 N
Distance spindle to column
335 mm
Distance spindle to table max.
720 mm
Spindle stroke
250 mm
Table size / T-slot size
560 x 480 mm / 18 mm
Table lift
315 mm
Motor power
4,0 kW
Machine dimension (W x D x H)
750 x 1150 x 2520 mm
Weight approx.
1250 kg
- Solid construction of column and base designed for excessive use
- Powerful drive motor features high torque and large feed force
- Solid grey cast iron construction maximizes table load capacity
- Tapping device comes with automatic change of rotation at adjusted drill depth
- Convenient control lever allows for quick and easy feed and speed adjustment
- Polished gear wheel, in oil bath, ensure smooth operartion
- Automatic spindle feed, tapping device and work lamp included in standard equipment
- Wide, heavy-duty dovetail guidings feature adjustable gibs
Standard accessories:
- Coolant device
- Thread cutting device
- Left and right turning
- LED working light
- Morse taper drill sleeve
- Tools
- Height adjustable protective cover
