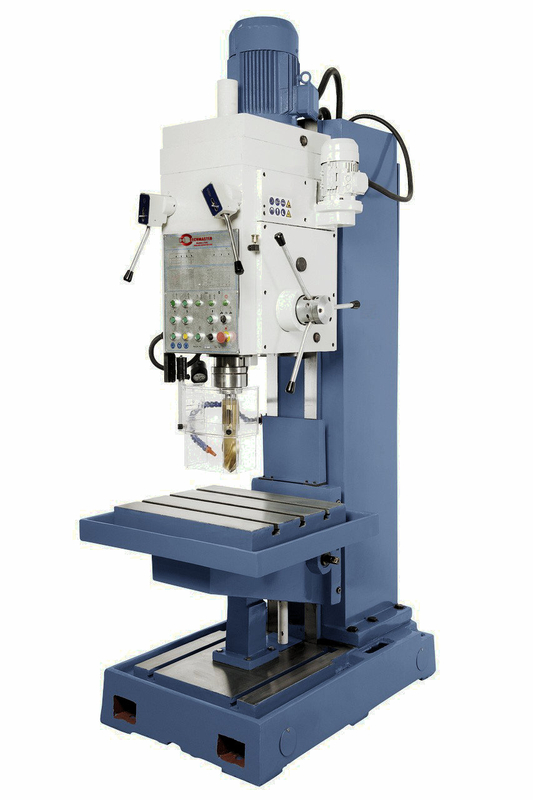

BOX COLUMN DRILL PRESS EUROPE STYLE Z5180C
Quantity: suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
80 mm
Thread cutting max.
M56
Torque
800 Nm
Travel of drill head
260 mm
Morse taper
MT 6
Spindle speed / steps
40 - 570 rpm, 9 steps
Feed range
(6) 0,1 - 0,78 mm/rev.
Feeding force
30000 N
Distance spindle to column
375 mm
Distance spindle to table max.
810 mm
Spindle stroke
250 mm
Table size / T-slot size
660 x 555 mm / 22 mm
Table lift
300 mm
Motor power
5,5 kW
Machine dimension (W x D x H)
900 x 1300 x 2850 mm
Weight approx.
2500 kg
FEATURES- Solid construction of column and base designed for excessive use
- Powerful drive motor features high torque and large feed force
- Solid grey cast iron construction maximizes table load capacity
- Tapping device comes with automatic change of rotation at adjusted drill depth
- Convenient control lever allows for quick and easy feed and speed adjustment
- Polished gear wheel, in oil bath, ensure smooth operartion
- Automatic spindle feed, tapping device and work lamp included in standard equipment
- Includes feed motor for rapid and work feed and back stroke
- Wide, heavy-duty dovetail guidings feature adjustable gibs
Standard accessories:
- Coolant device
- Thread cutting device
- Left and right turning
- LED working light
- Morse taper drill sleeve
- Tools
- Height adjustable protective cover
