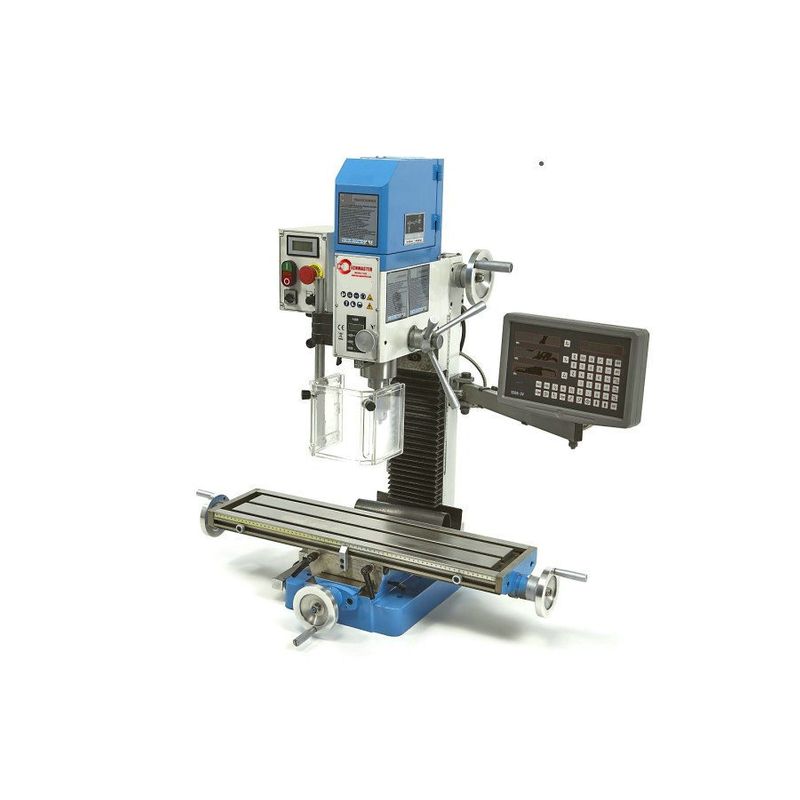

BF28V VARIO
Feature:
• Brushless motor drive variable speed drilling & milling machine
• Two steps of speeds ensure high torque at low speeds

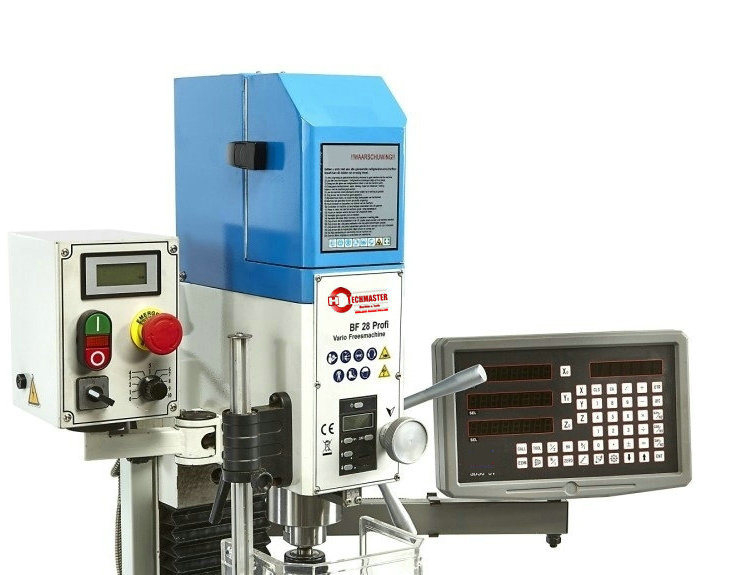

• The spindle speed is displayed directly on the control panel
• Large square column casting ensures maximum rigidity
• Handwheel for quill micro down feed
• Depth ruler easy to read for quill travel at front panel
• Quality casting iron of large base for high rigidity

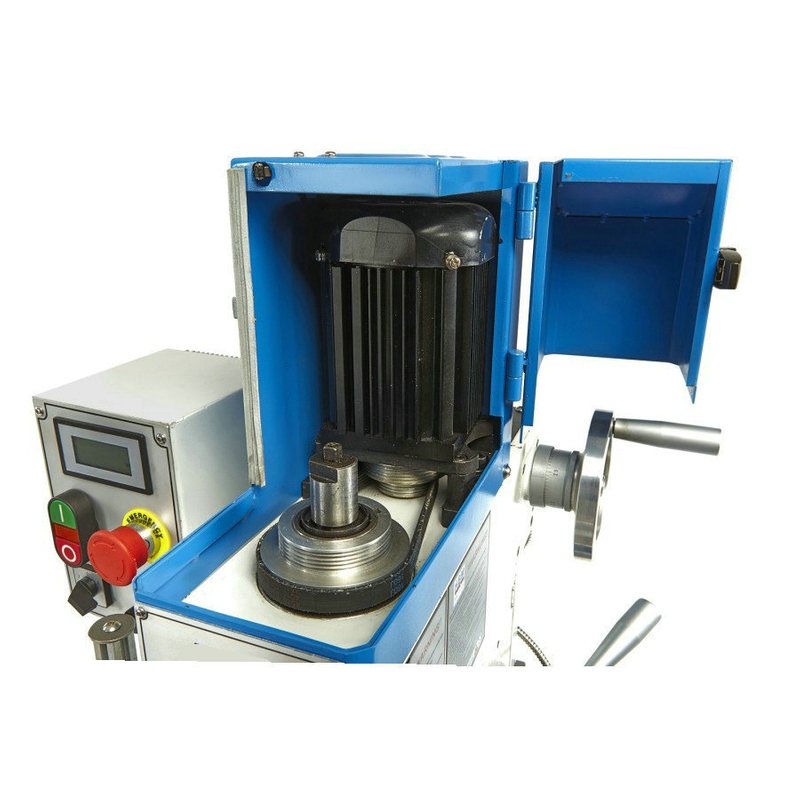

• High quality belt for quiet operation and long life
Standard accessories:
• Depth ruler
• Speed display
• Key drill chuck
• Tools & toolbox
• Safety chuck guard
Optional accessories:
• Normal or deluxe stand
• Digital readout
• Power feed for X-axis
• ER mill chuck set
• QG-4" machine vice
• 58pcs clamping kits/M12
• Rotary table/HV-6"
| Model No. | BF28V PROFI |
| Drilling capacity | 28mm |
| Thread cutting max. | ------ |
| Table size/T-slot size | 700x180mm/12m m |
| Spindle taper | MT3 or R8 |
| Spindle speeds | 100-3000 rpm(stepless) |
| Spindle feed | ------ |
| Spindle stroke | 50mm |
| Quill diameter | 60mm |
| Head tiltable | 90 |
| Cross travel | 155mm |
| Longitudinal travel | 490mm |
| Vertical Travel | 280mm |
| Distance spindle to column | 200mm |
| Distance spindle to table | 280mm |
| Motor power(brushless) | 1.0kw |
| Net weight | 140kg |
| Packing size | 870x570x860mm |
Feature:
• Brushless motor drive variable speed drilling & milling machine
• Two steps of speeds ensure high torque at low speeds
• The spindle speed is displayed directly on the control panel
• Large square column casting ensures maximum rigidity
• Handwheel for quill micro down feed
• Depth ruler easy to read for quill travel at front panel
• Quality casting iron of large base for high rigidity
• High quality belt for quiet operation and long life
Standard accessories:
• Depth ruler
• Speed display
• Key drill chuck
• Tools & toolbox
• Safety chuck guard
Optional accessories:
• Normal or deluxe stand
• Digital readout
• Power feed for X-axis
• ER mill chuck set
• QG-4" machine vice
• 58pcs clamping kits/M12
• Rotary table/HV-6"
| Model No. | BF28V PROFI |
| Drilling capacity | 28mm |
| Thread cutting max. | ------ |
| Table size/T-slot size | 700x180mm/12m m |
| Spindle taper | MT3 or R8 |
| Spindle speeds | 100-3000 rpm(stepless) |
| Spindle feed | ------ |
| Spindle stroke | 50mm |
| Quill diameter | 60mm |
| Head tiltable | 90 |
| Cross travel | 155mm |
| Longitudinal travel | 490mm |
| Vertical Travel | 280mm |
| Distance spindle to column | 200mm |
| Distance spindle to table | 280mm |
| Motor power(brushless) | 1.0kw |
| Net weight | 140kg |
| Packing size | 870x570x860mm |
