BS-1018RH Metal Cutting Band Saws, 10" universal band saw
You are here: Home » Products » SAWS » SEMI-AUTO BANDSAW » BS-1018RH Metal Cutting Band Saws, 10" universal band saw
Share to:

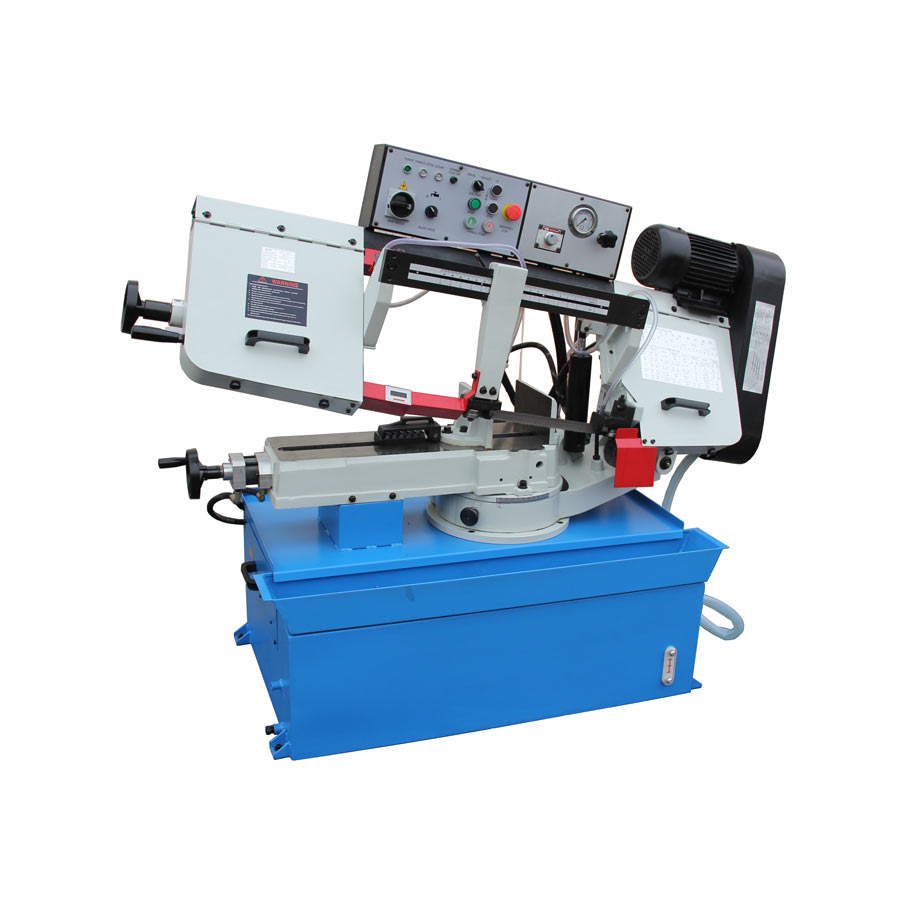

BS-1018RH Metal Cutting Band Saws, 10" universal band saw

Quantity:
  • BS-1018RH Metal Cutting Band Saws, 10" universal band saw



Metal Cutting Bandsaw

BS-1018RH



Features



1. The maximum processing capability is 10".


2. Our 10" band saw features a belt drive and has four cutting speeds.


3. Both the saw bow of 1018R and the jaw of 1018B can rotate from 0° to 45°.


4. Our 10" band saw has the advantage of quick clamping. The falling speed of saw bow is controlled by hydraulic cylinder.


5. The cooling system our 10" band saw can prolong the service life of saw blade and improve the precision of the workpiece.


6. Our 10" band saw has a sizing device (the machine will automatically stop after sawing the materials).


7. Our 10" band saw has a power break protection device (the machine will automatically power off when the rear protective cover is opened).


8. Our 10" band saw is equipped with a block feeder (with fixed sawing length).







 Technical specifications





Model



BS-1018RH

Capacity

Circular@90°

254mm(10”)

Rectangular@90°

160*406mm(6.3”*16”)

Circular @45°

170mm(6.7”)

Rectangular@45°

160*190mm(6.3*7.5”)

Blade speed

@60Hz

35,60,88,118mpm

@50Hz

26,50,73,95mpm

Blade size

27*0.9*3215mm

Motor power

1.5 kW 2HP (3PH)

Drive

Belt

Packing size

189*84*134cm

N.W./G.W.

300/360KGS
