BS-315GH Metal cutting band saw

You are here: Home » Products » SAWS » SEMI-AUTO BANDSAW » BS-315GH Metal cutting band saw

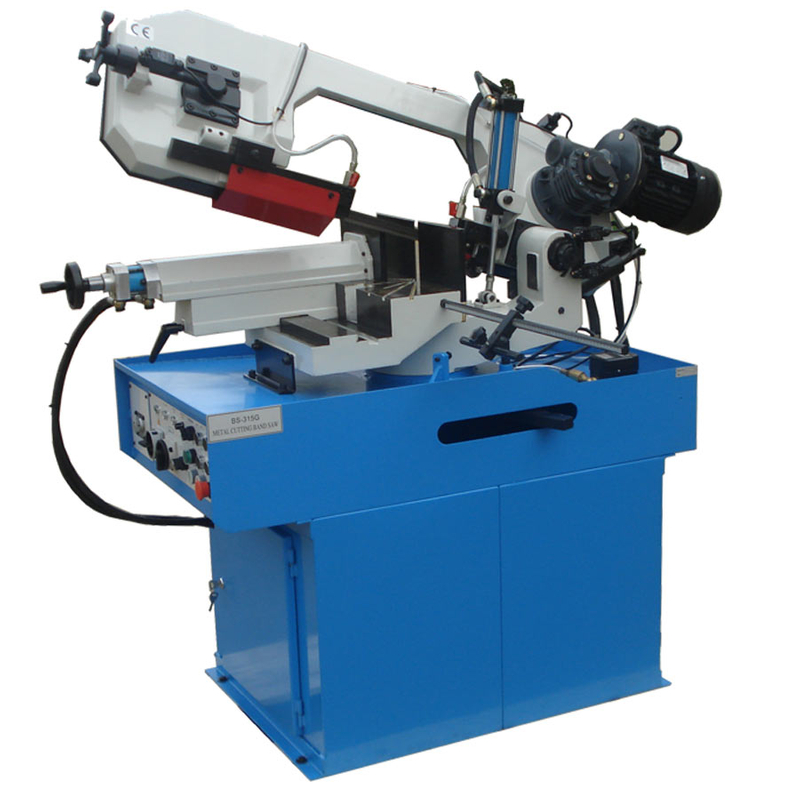

Model: BS-315GH Metal cutting band saw

Product Description

Features:

1. Swivel on both sides
2. Electric coolant system
3. Hydraulic cylinder for controlled descent
4. High-capacity band control by two-speed motor
5. Accident preventing devices on the fly wheel casing and on the blade
6. Vertical rotation on bolt with adjustable tapered bearings without backlash
7. Band stretching is obtained by electro-mechanical blade tension with micro switch

Specification:

Model		BS-315GH
Capacity	Circular @90°	230 mm 9”
	Rectangular @90°	315x170 mm 12.4x6.7”
	Circular @60°(right)	130 mm 5”
	Rectangular @60°(right)	130x105 mm 5x4”
	Circular @45° (left and right)	210 mm 8.25”
	Rectangular @45°(left and right)	210x170 mm 8.25x6.7”
Blade speed @ 50Hz		40/80 MPM
Blade speed @ 60Hz		48/96 MPM
Blade size		27x0.9x2825 mm
Motor		0.75 /1.1 kW
Drive		Gear
Packing size		163x90x155 cm
N.W./G.W.		380/420 kg

Accessories:

Standard accessories:
Blade
Hydraulic clamping vice
Electric coolant system
Optional accessories:N

Model	BS-315GH
Capacity	Circular @90°	230 mm 9”
Rectangular @90°	315x170 mm 12.4x6.7”
Circular @60°(right)	130 mm 5”
Rectangular @60°(right)	130x105 mm 5x4”
Circular @45° (left and right)	210 mm 8.25”
Rectangular @45°(left and right)	210x170 mm 8.25x6.7”
Blade speed @ 50Hz	40/80 MPM
Blade speed @ 60Hz	48/96 MPM
Blade size	27x0.9x2825 mm
Motor	0.75 /1.1 kW
Drive	Gear
Packing size	163x90x155 cm
N.W./G.W.	380/420 kg
