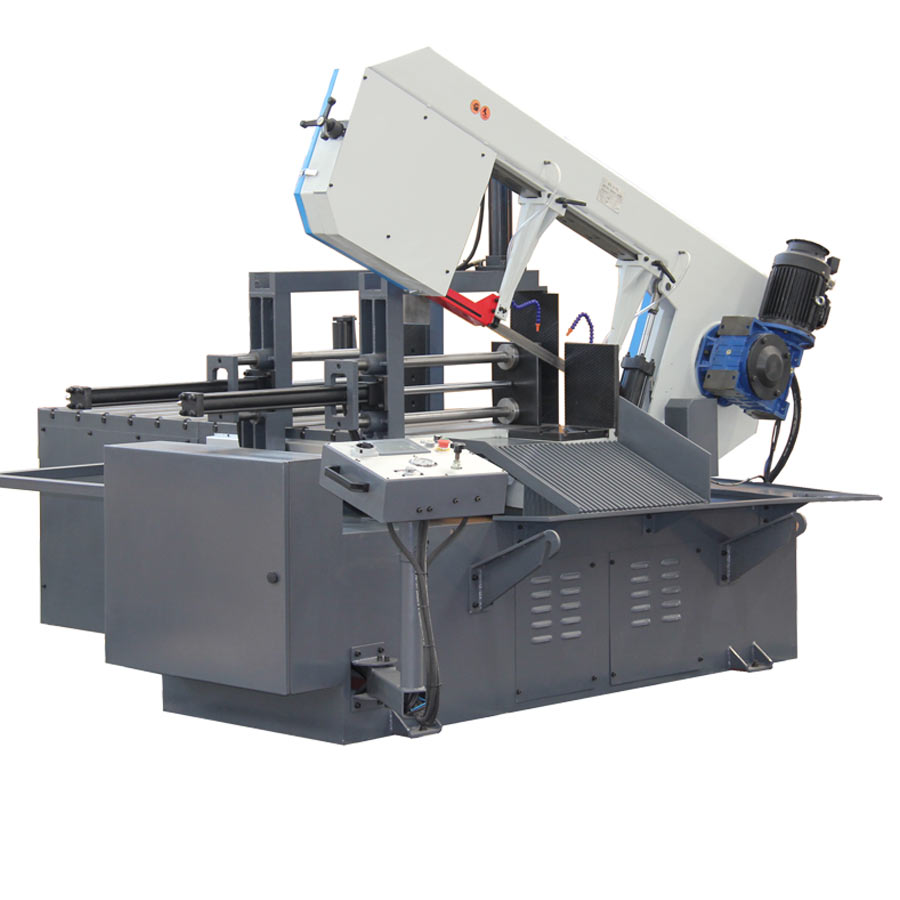

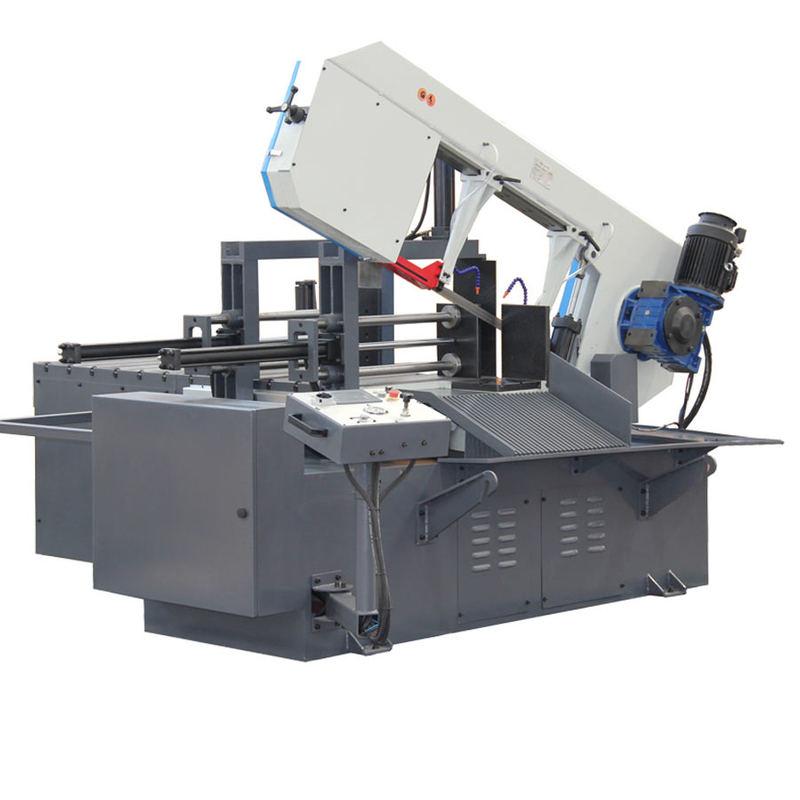

BS-650G CNC Metal cutting band saw machine

Quantity:




Inquire Add to Basket

Model:
BS-650G

Product Description

Features:

1. CNC automatic feeding and cutting
2. With hydraulic clamping vice
3. With automatic rotary saw bow
4. With Servo motor for variable saw speed
5. The maximum length of an automatic feed up to 650mm
6. Swivel beam by PLC programming
9. Touch screen in swivel panel give comfortable operation

Specification:

Model		BS-650G
Capacity	Circular @90°	460 mm 18”
	Rectangular @90°	650x350 mm 25.6x13.8”
	Circular @60°(right)	310 mm 12.2”
	Rectangular @60°(right)	310x350 mm 12.2x13.8”
	Circular @45°(right)	460 mm 18”
	Rectangular @45°(right)	460x350 mm 18x13.8”
Blade speed		23-95 rpm
Blade size		41x1.3x5220 mm
Motor		4.0 kW Servo motor
Drive		Gear
Packing size		292x218x217 cm
N.W./G.W.		2020/2300 kg

Accessories:

Standard accessories:
Blade
Hydraulic clamping vice
PLC touch screen
Auto.feeding
CE standard switch protect operator safe
Optional accessories:
N

Model	BS-650G
Capacity	Circular @90°	460 mm 18”
Rectangular @90°	650x350 mm 25.6x13.8”
Circular @60°(right)	310 mm 12.2”
Rectangular @60°(right)	310x350 mm 12.2x13.8”
Circular @45°(right)	460 mm 18”
Rectangular @45°(right)	460x350 mm 18x13.8”
Blade speed	23-95 rpm
Blade size	41x1.3x5220 mm
Motor	4.0 kW Servo motor
Drive	Gear
Packing size	292x218x217 cm
N.W./G.W.	2020/2300 kg
