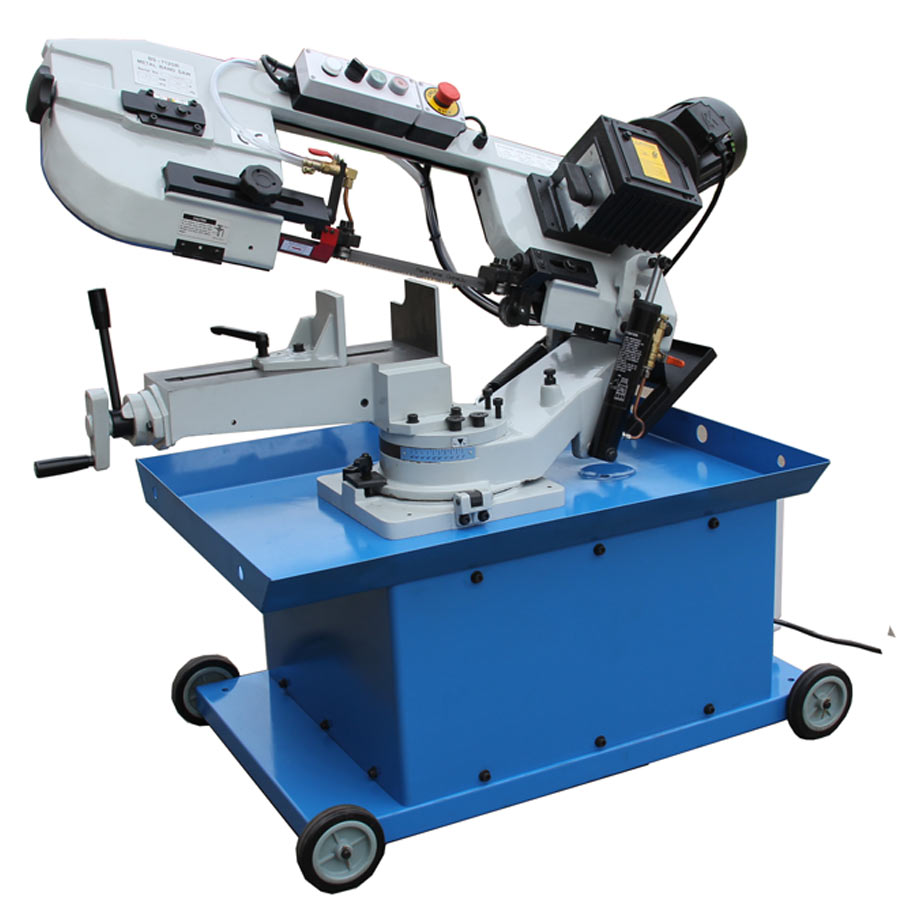

BS-712GR Metal Cutting Band Saw, Universal Band Saw

Metal Cutting Band Saw

BS-712GR





Features



 1. The maximum capacity is 7".



 2. The saw has 3 cutting speeds.



 3.Both sides swiveled exclusivly desigh ±45 degree



 4.The bow can be swiveled between 45° and 90 °



 5. With cooling system, it can prolong the service life of the saw and improve the precision of work piece.







Technical Specifications





Model		BS-712GR	BS-712GDR
Capicity	Circular @90°	178mm(7")	178mm(7")
	Rectangular @90 °	178x210mm(7"x8.25")	178x210mm(7"x8.25")
	Circular @45°	127mm(5")	127mm(5")
	Rectangular @45 °	85X140mm(3.33"x5.5")	85X140mm(3.33"x5.5")
Blade speed	@ 60HZ	34,70,104 MPM	34,70,104 MPM
	@ 50HZ	29,59,87 MPM	29,59,87 MPM
Blade size(MM)		19x0.9x2362mm	19x0.9x2362mm
Motor power		750W 1HP(3PH), 1.1KW 1.5HP(1PH)
Dirve		Gear
Packing size(cm)		132x77x115	137x73x138
N.W./G.W.(kg)		175/197	210/260
