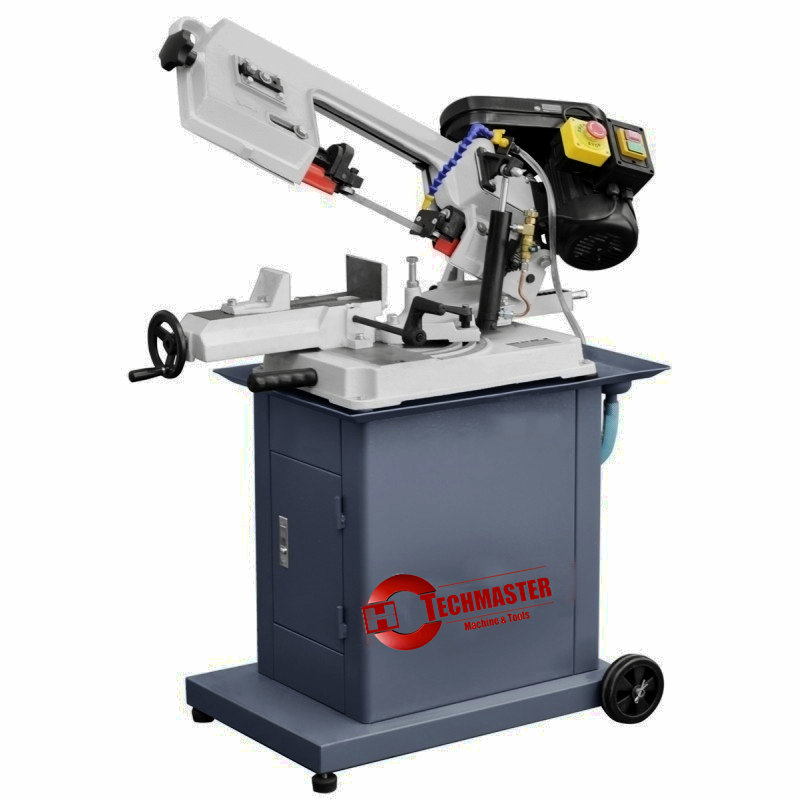

BS128HDRC 400V Band Saw(With Coolant )
Quantity: -
BS128HDRC 400V Band Saw WITH COOLANT
Machine description
BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its big weight (103 kg) makes it very stable and vibration-free during cutting larger materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o.
Technical data
Cutting band size 1640×13×0.65 mm Cutting speed 23/34/54 m/min Power 0,55 kW/400V Arm lowering control stepless, through hydraulic cylinder Cutting range -45° - + 60° Dimensions 942×442×548 mm Weight 103 kg Maximum cutting range [mm]
Angle ROUND RECTANGLE SQUARE 0° ø125 mm 100×150 mm 100×100 mm -45 ø90 mm 90×75 mm 90×90 mm +45° ø90 mm 90×75 mm 90×90 mm +60° ø55 mm 55×55 mm 55×55 mm Default equipment
3rd generation hydraulic cylinder
Table for vertical cuts
Quick-clamping vice
Coolant system
Workpiece limiter - bumper
Automatic limiting switches
Modern thermal engine protection
Mobile base with four wheels
User manual
