BS275 Band Saw

Availability:
Quantity:
  • BS 275 Band Saw

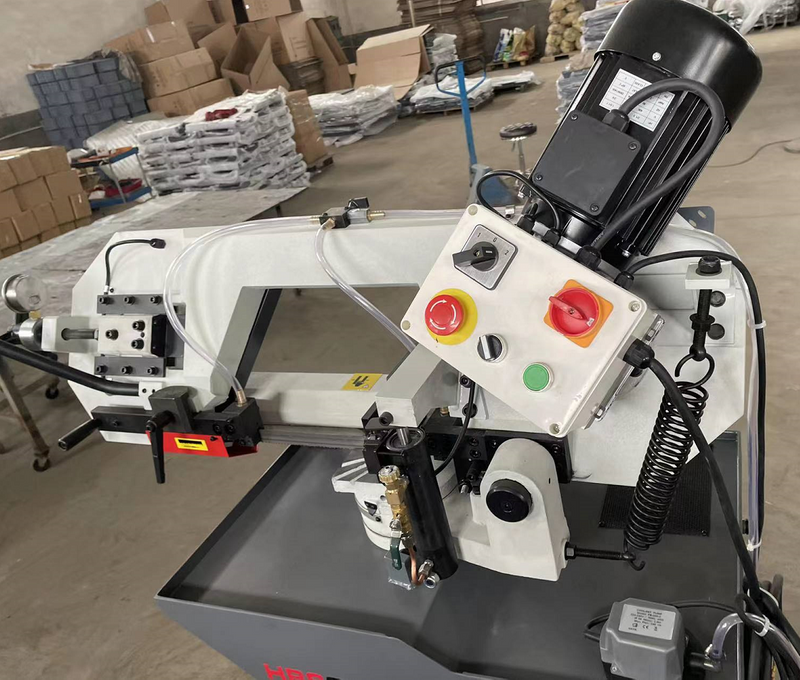

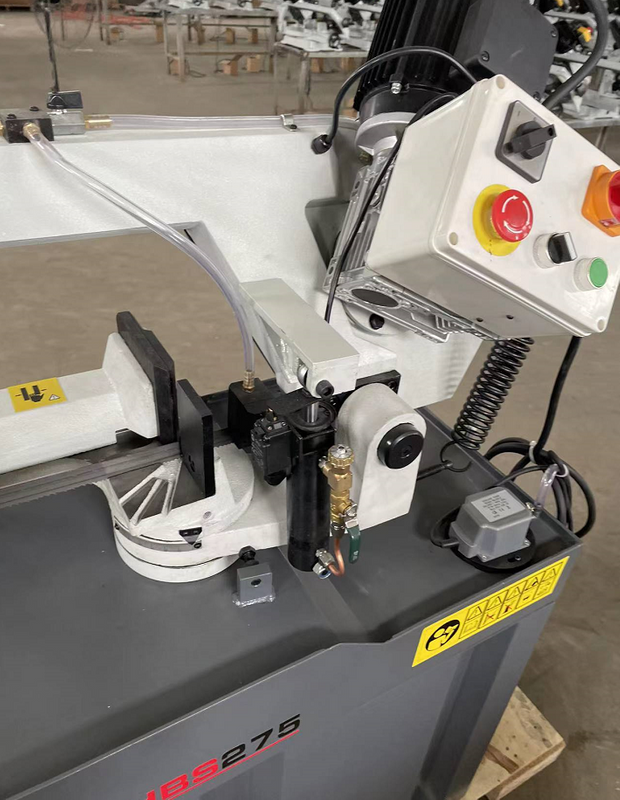

BS275 Band Saw

band saw, equipped with a hydraulic cylinder, a cooling system and an arm swivelling up to 60º, together with blades from renowned German company Röntgen, is used commonly in ironworking, where precision, quality and cutting speed are essential.


Horizontal band saw with a swivelling arm for cutting metals, allows for cutting in plane perpendicular to the axis of material cut and at any angle from 0 to 60º. Material for cutting can be fed manually or with any mechanical feeding device, with automatic tool feed. Band guides are equipped with dedicated carbide plates and bearings. This has a huge impact on band guiding, its durability, cut straightness, cutting accuracy and quality. Carbide guiding drastically reduces the wear of the machine and blades.

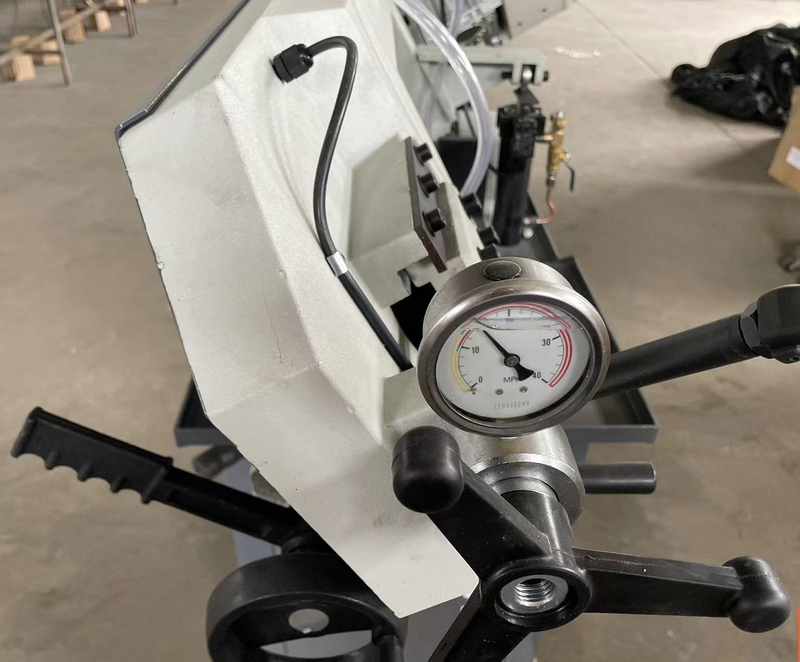

Machine's arm made of uniform cast iron as well as a 27 mm wide cutting band are capable of low and high quantity cutting of profiles and other materials. The vice is located in an adjustable bed, equipped with a quick clamp. Blade guides have cemented carbide plates and roller bearings. Its these cemented carbide guides that provide cut precision and straightness. The arm, positioned at an angle of 25º, thus increasing blade durability, is equipped with an automatic blade tension sensor. To the bottom of the arm a brush wire is attached, ensuring clean and functional brush. Machine's drive is transmitted through a worm drive. A 3-phase motor with 2 cutting speeds and motor thermal protection. This cutting machine also has a strain gauge - a band tension sensor and an automatic switch-off in case the cutting band breaks. Upper part of the base constitutes a tank for flood coolant draining and chips produced during cutting. A cast iron workbench is attached to the base, with a swivel arm and control panel on separate arm.

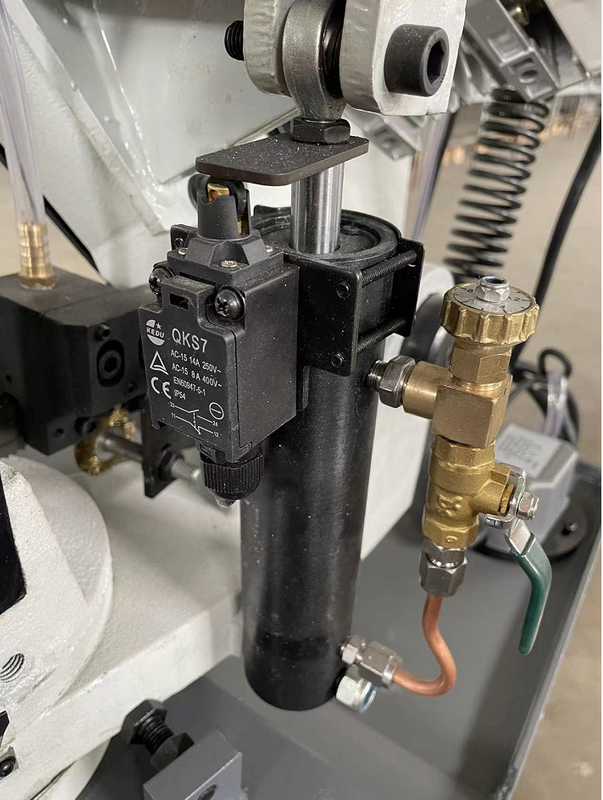

The main cutting move in the cutting process is moving the cutting band and the arm lowering feed. The arm lowering speed (the cutting speed) is adjusted with the hydraulic cylinder. The feed speed is controlled by the control panel. There are 2 cutting band speeds to choose from: 37.5 and 75 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.


Technical data

Total power

1.5 kW

Power supply

400V 50Hz

Arm lowering control

hydraulic cylinder

Band dimensions

2455 x 27 x 0.9 mm

Band speed

37.5/75 m/min

Vice base height

900 mm

Weight

215 kg


Angle

ø220

260 x 140

200 x 200

45º R

ø160

160 x 140

160 x 160

60º R

ø100

120 x 100

100 x 100
