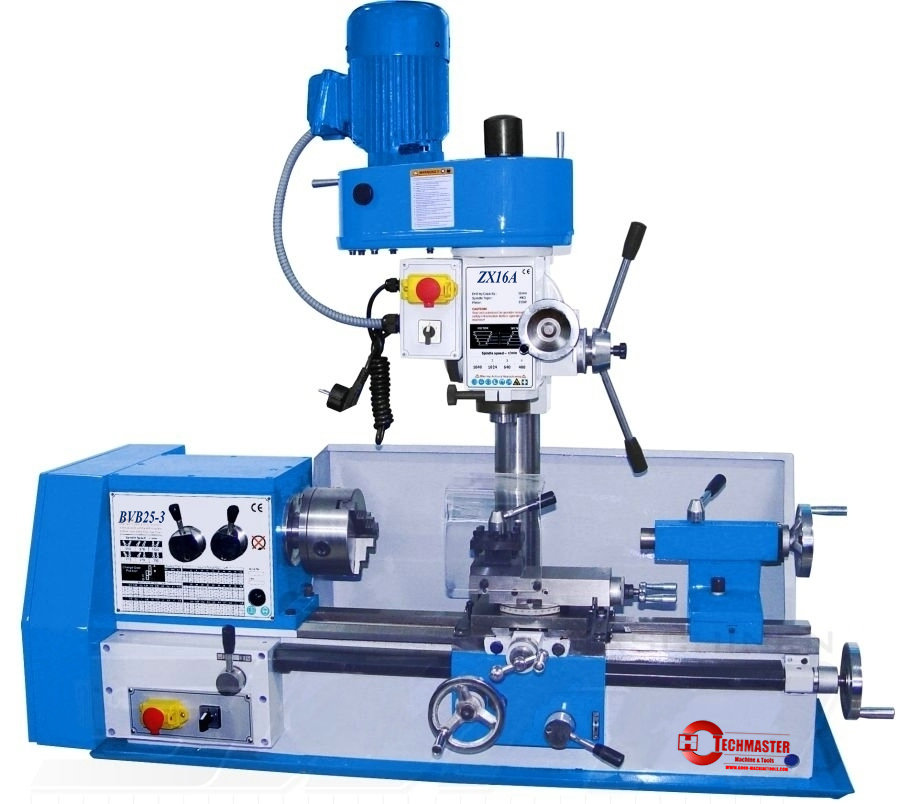

MODEL | BVB25-3/BVB25-3L |
Lathe | |
Distance between centers | 450/700 mm |
Swing over bed | 250 mm |
Taper of spindle bore | MT4 |
Spindle bore | 27 mm |
Range of spindle speeds | 115-1620 rpm |
Range of inch threads | 8-56 T.P.I |
Range of metric threads | 0.2-3.5 mm |
Travel of cross slide | 140 mm |
Taper of tailstock quill | MT3 |
Motor | 750W |
Milling/ Drilling | |
Taper of spindle bore | MT3 |
Spindle stroke | 80 mm |
Step of spindle speeds | 4 |
Range of spindle speeds | 400-1600 rpm |
Head stroke | 240 mm |
Head tilt | ±90° |
Motor | 550W |
Packing size | 1510x670x920 mm |
Net weight | 245 kg |
