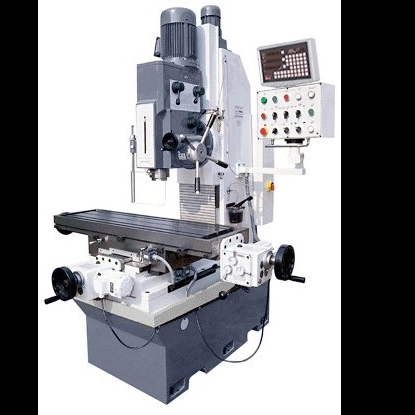

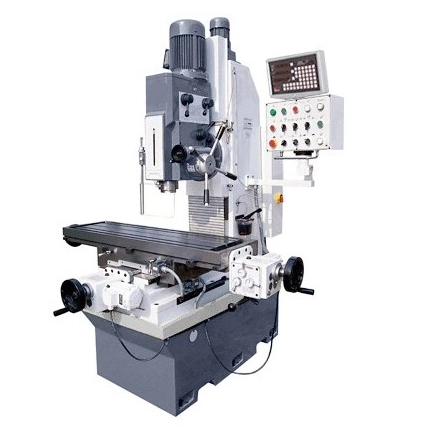

Bed milling machine ZX5150
Quantity: -
Bed milling machine ZX5150
Technical data
Technical parameters
TABLE SIZE
1500 x 360 mm
ARBOR HOLDER
ISO 40
ARBOR SPEED, VERTICAL
(16) 94 - 2256 rpm
CENTRE STROKE
180 mm
CENTRE FEED
0,1 / 0,15 / 0,3 mm/rotation
FEED DISTANCE LONGITUDINAL (X)
800 mm
FEED CROSS DISTANCE (Y)
360 mm
FEED DISTANCE VERTICAL (Z)
500 mm
ARBOR/COLUMN SPACING
370 mm
TILT SPINDLE TAPER
-45° to +45°
ARBOR/TABLE SPACING
110 - 610 mm
FEED LONGITUDINAL/CROSS
(8) 24 - 720 mm/min.
MOTOR POWER S1 / S6
1.5 / 2.4 kW
DIMENSIONS
1770 x 1800 x 2320 mm
WEIGHT
1400 kg
Scope of delivery
- Drill chuck with arbor
- Adapter ISO 40/MK 4,ISO 40/MK 3, ISO 40/MK 2
- Milling arbor ISO 40/32 mm
- Digital indicator of 3 axes position
- Flood coolant system
- Central lubrication
- Halogen lamp
- Milling cutter lifting motor
- Guard
