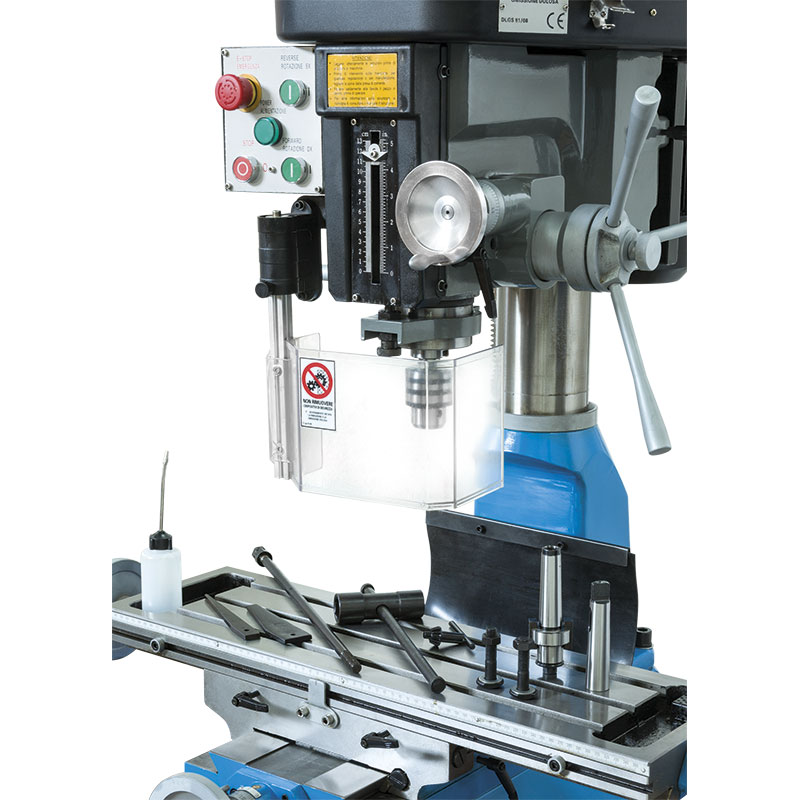

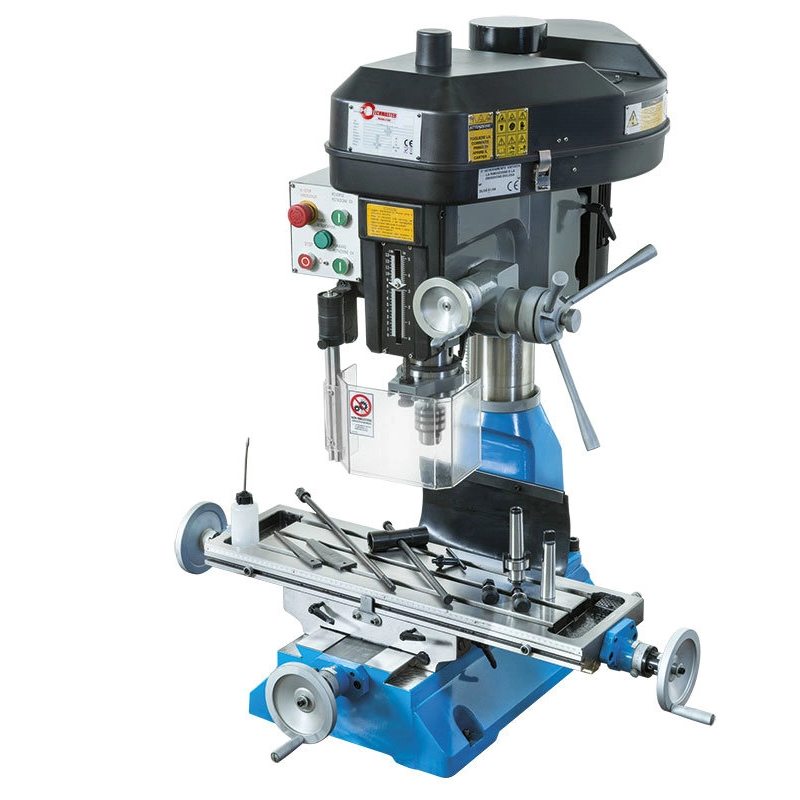

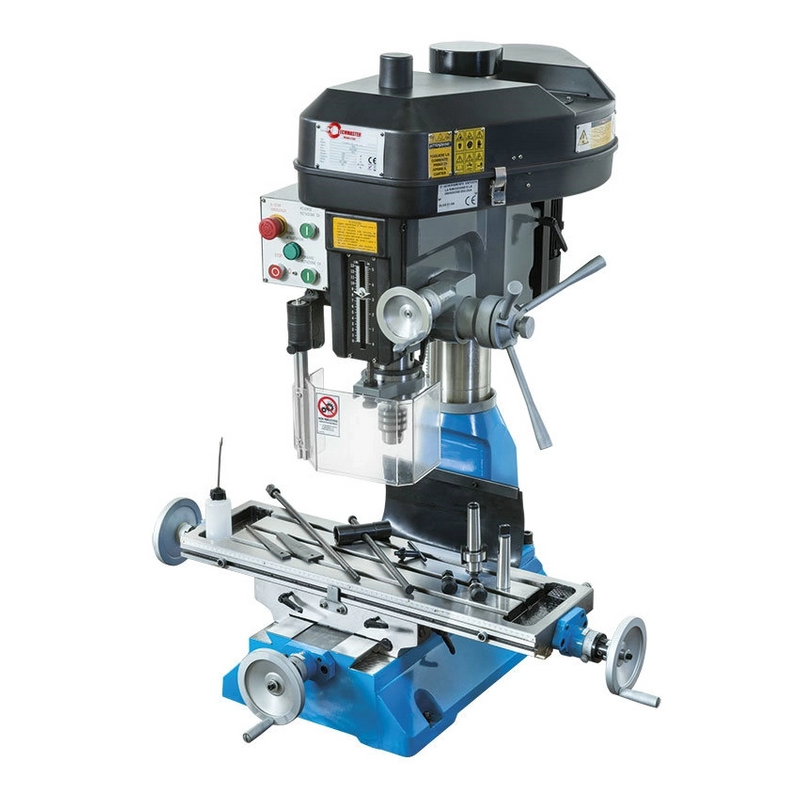

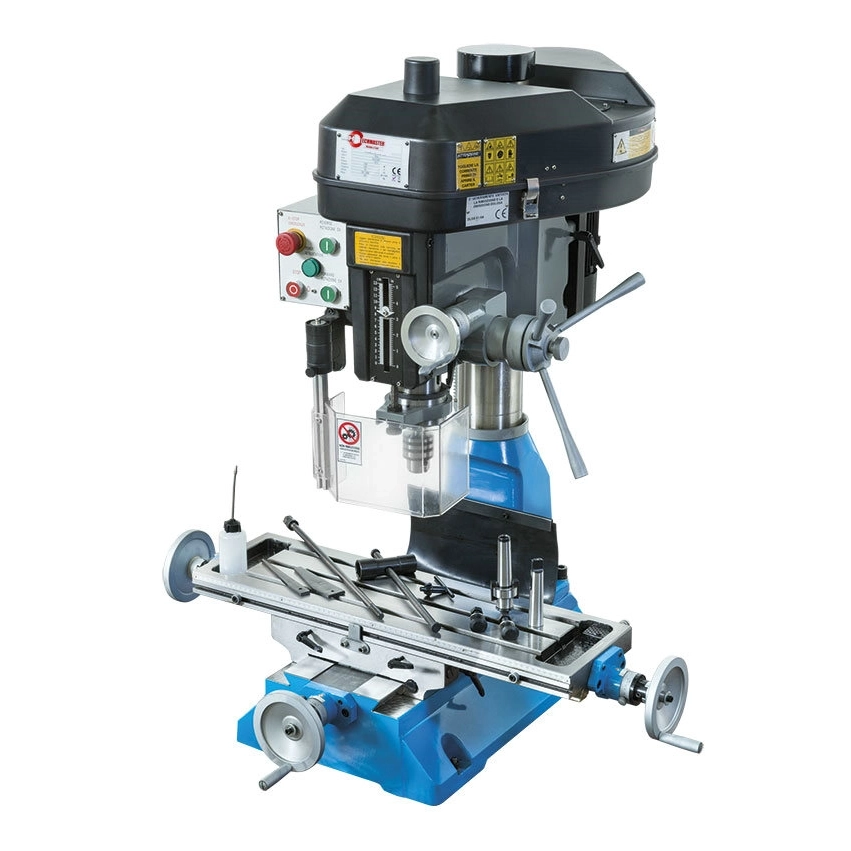

Belt Drive Bench Drilling&Milling Machine (BF30B)

Quantity:
  • BF30B


Product Description

BF30B
FEATURES:

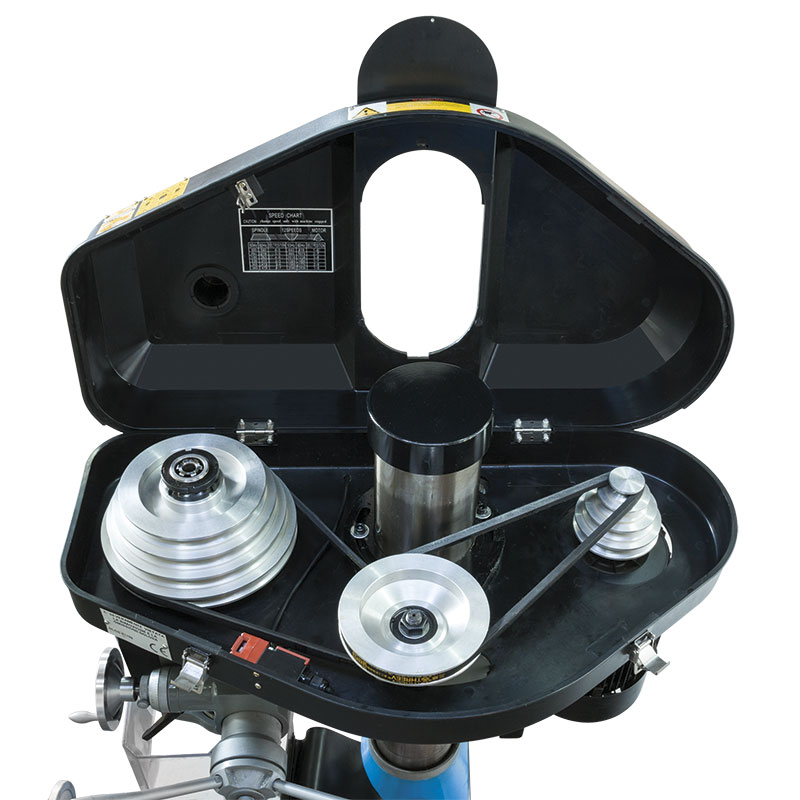

Belt drive spindle running in low noise
Quick spindle feeding hand lever
Micro spindle feed hand wheel
Fine down feed is engaged by clutch-type mechanism
Easy-to-use depth stop
Heavy-duty, 12-speed tapered roller bearing spindle

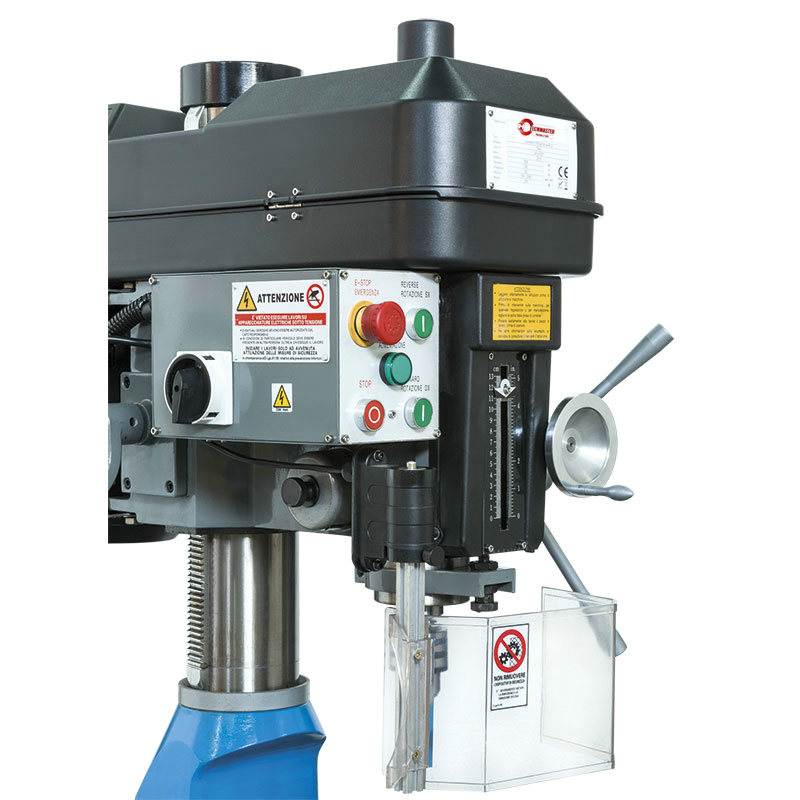

Forward/Reversing switch with emergency stop

OPTIONAL ACCESSORIES:
Halogen Lamp 24V/ 50W
Cabinet Stand with Chip Tray
Work Table Travel X Power Table Feed
Spindle Protection Guard with Switch on/off
Coolant System with extra coolant tank and electrical connection

Technical Data
Model BF30B
Drilling Capacity in Iron 30 mm
Drilling Capacity in Steel 20mm
End Milling Capacity in Steel 20 mm
Face Milling Capacity in Steel 76 mm
Dist. Spindle to Column 170 mm
Max. Dist. Spindle to Work Table 440 mm
Spindle Taper MT 3
Spindle Speed 100 - 2080 rpm
Spindle Quill Travel 120 mm
Column Diameter 115 mm
Work Table Size 730 x 210 mm
Work Table Travel X 500 mm
Work Table Travel Y 230 mm
T- Slot Size x pcs 14 mmx 3
Motor Power 1.5 Kw, 50 Hz
Net Weight 300 kg
Packing Size 760 x 950 x 1150mm
20ft container 42 pcs
