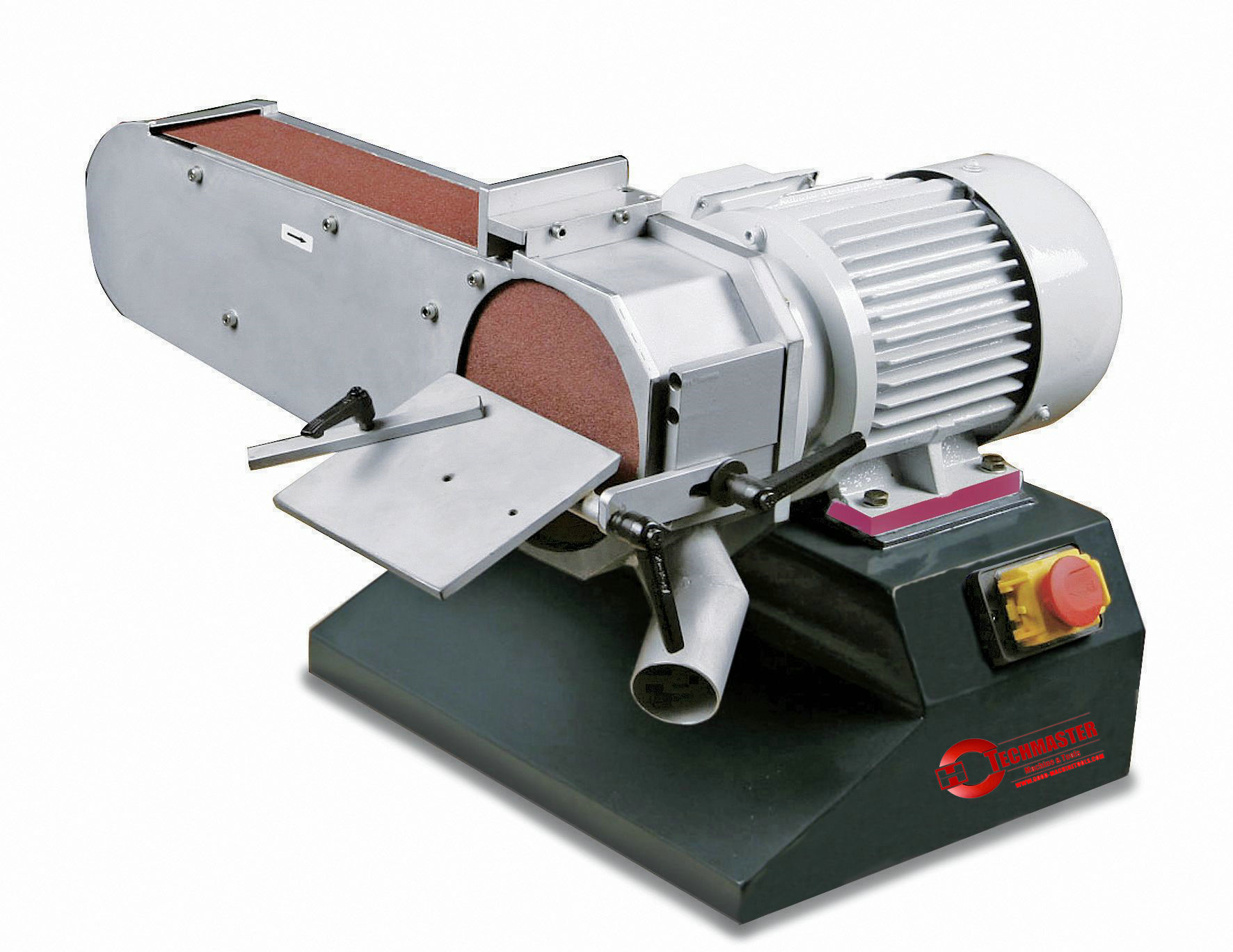

Belt and Disc Grinding Machine

Feature:
• Universal applicable by rotable grinding arm
• Sanding belt tension manually adjustable
• Magenetic switch with overload protection
• Switch with emergency stop button cover
• Powerful motor
• Sanding belt easily changeable
• Fine adjustment for parallel belt operation

Model No.	DBS 75
Motor power	1.1kw
Sanding belt size	1180x75mm
Belt speed	11m/s
Sanding disc size	Ф150
Disc speed	1450rpm
Table size	215x85mm
Tilting range	0-90°
Dust extraction outlet	46mm
Weight	65kg
