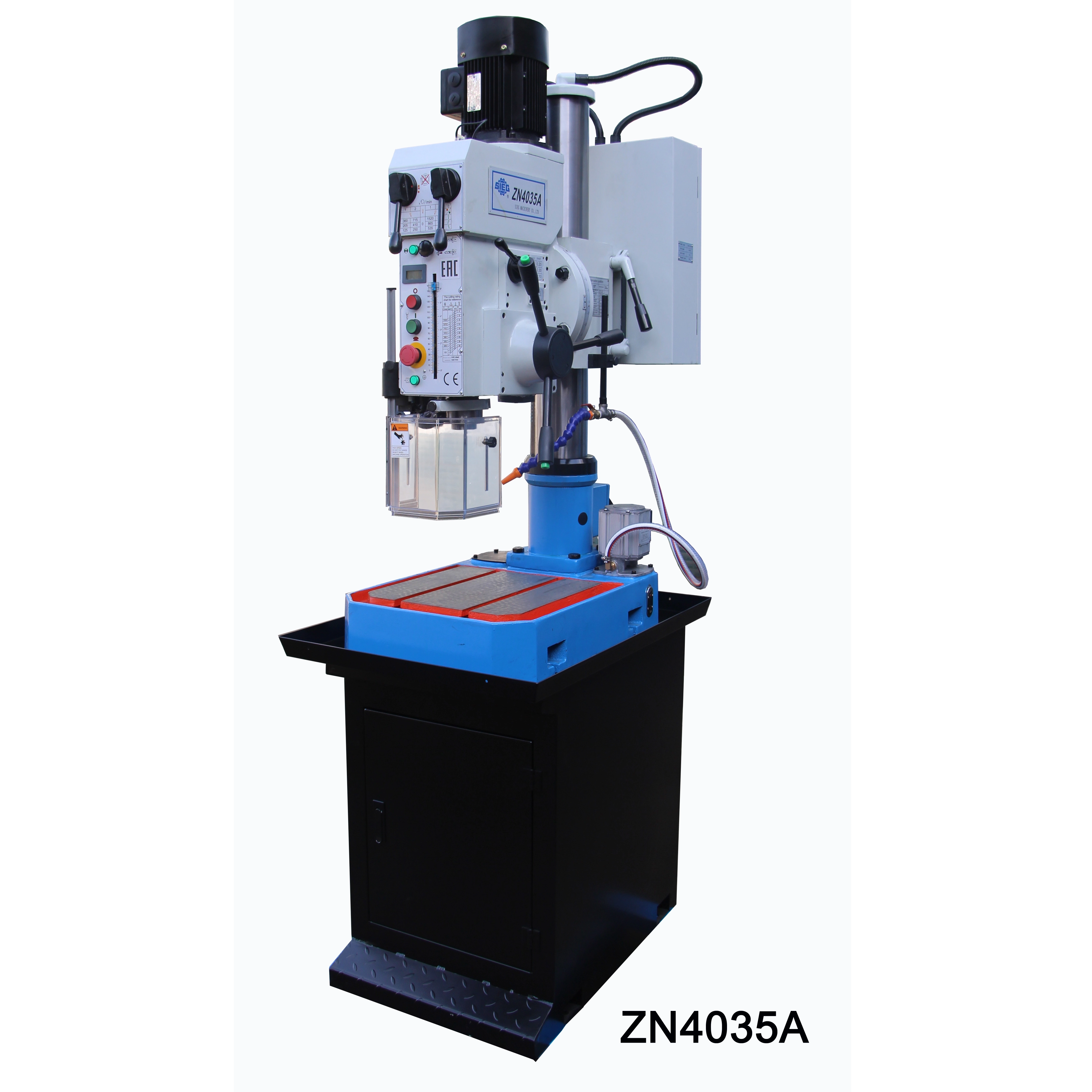

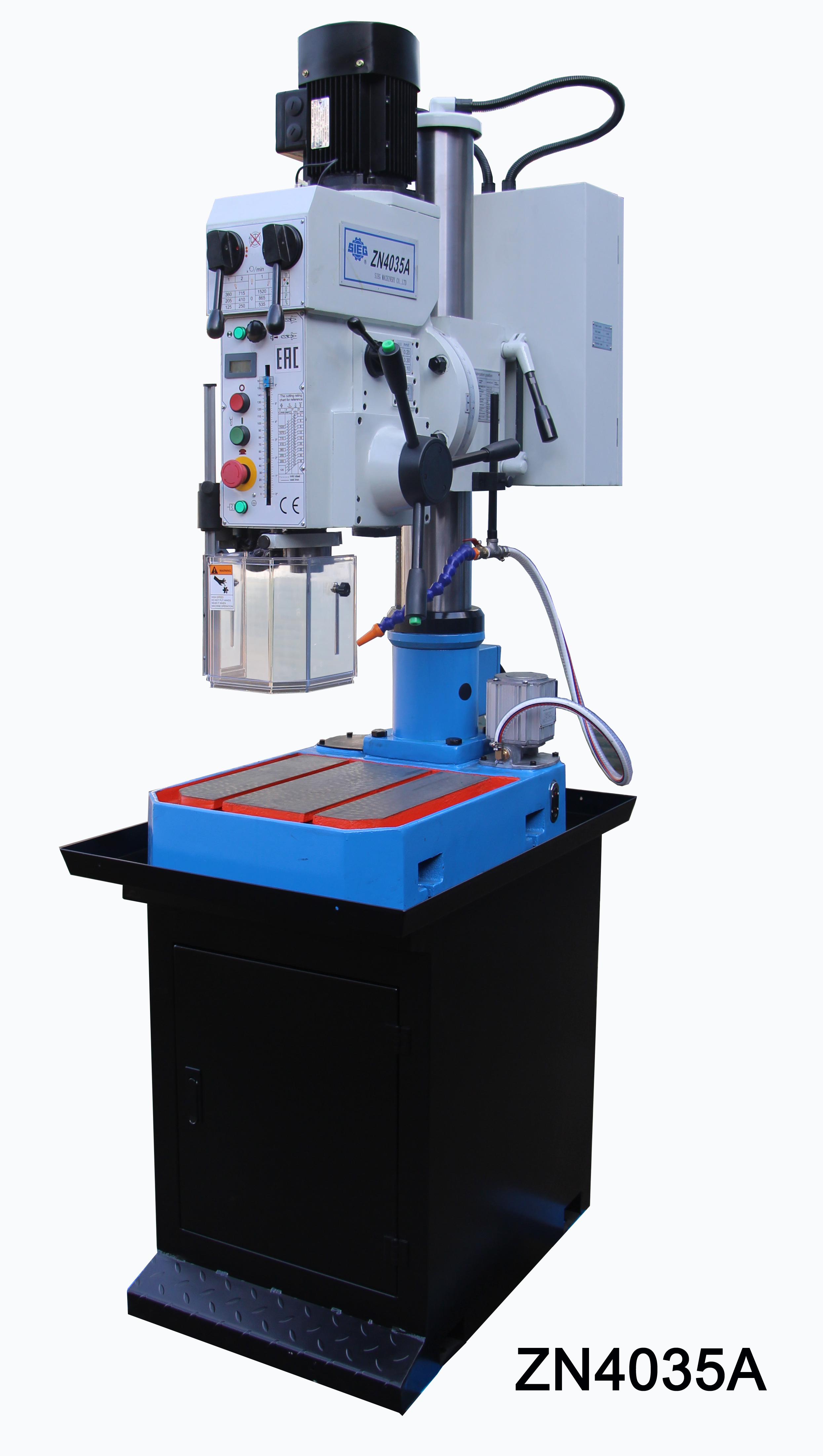

Bench Drill ZN4035A
Quantity: -
ZN4035A
TECHNICAL PARAMETERS
Accurate Performance in Drilling Milling and Tapping High Strength Construction Ideal for Model Maker & Repair Shops
Max. drilling diameter (steel) 35 mm Max. tapping diameter (steel) M22 mm Distance between spindle center line to the center line of column 320 mm Max. distance between spindle end to the surface of the worktable 655 mm Max. stroke of the spindle 155 mm Spindle taper M.T 4 Morse Number of speed steps of the spindle 12 Step Spindle speed range 125~3030 r/min Feed steps of the spindle 3 Step Feed range of the spindle 0.1,0.2,0.3 mm/r Max. stroke of spindle box 550 mm Rotation degree of spindlebox in horizontal plane ±45° degree Working area of the worktable of the base (L x W) 370×360 mm Numbers and width of the T slots for worktable of base 2-T14 mm Diameter of column φ120 mm Power and speed of the main motor 1.0/1.2 1440/2880 Kw,rpm Power and flow rate of the coolant pump motor 0.18/6 Kw,L/min Machine dimension (L x W x H) 810×460×1640 mm Net weight of the machine (Net weight) 405/375 Kg
