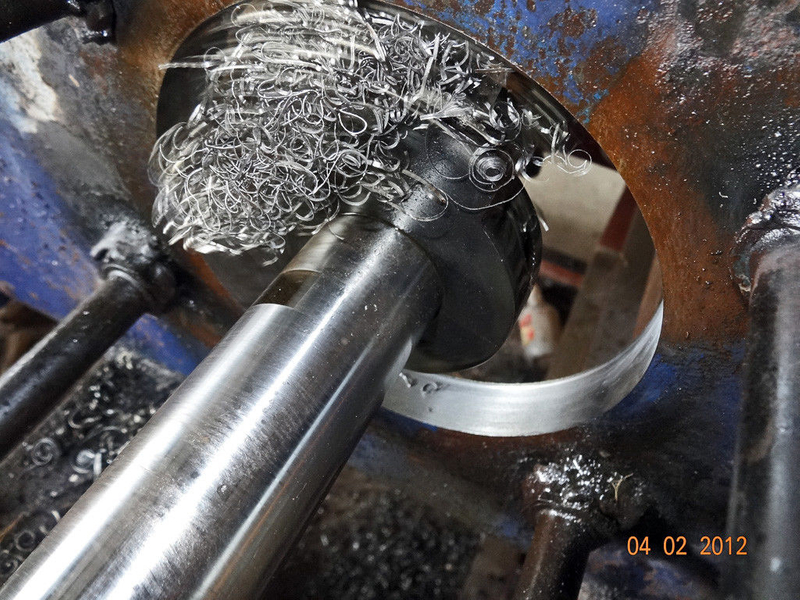

Boring Machine JRT40

Quantity:
  • JRT50



               High precision Portable Boring Machine Bore Range 55-250mm quick setup,reliable

Machine Performance:

JRT50 portable boring machine is powerful and mainly used for line boring, such as: repairing the inner wall of the pipes,crane rotary holes,stern shaft holes and rudder holes.

1.  Modular components make setup quick and easy
2.  Two electric motors make the machine easy to control
3.  Flexible and high quality design, aluminum alloy frame make the machine portable
4.  Optional facer tool make the machine more versatile
5.  Spherical bearing mounts system allow quick setup
6.  Gear box allow manual and automatic feed
7.  Drive power provide by a brushless DC motor, powerful and stable<o:p>

Specification

JRT50 portable boring machine specification(standard)<o:p>

Name<o:p>

Parameter<o:p>

Remarks<o:p>

Model<o:p>

JRT50<o:p>



Standard Boring bar diameter<o:p>

50mm×1500mm

Customizable<o:p>

Boring diameter<o:p>

55-250mm<o:p>



Power unit

Dc motor 1.5Kw



Rotating speed

0-100rpm(Varible speed )



Boring stroke

390mm



Axial feed speed

0-100mm/min(Varible speed )



Facing Diameter

60-Ф250mm





JRT50 Standard configuration list<o:p>

Name<o:p>



QTY

1<o:p>

Drive unit(Main body of the machine)

1 set<o:p>

2<o:p>

Boring bar (Ф50mmX1500mm)

1 pc<o:p>

3<o:p>

Bearing mounts bearing contained

2 pcs

4<o:p>

Bolts for welding(nuts contained)

8 pcs

5<o:p>

Tapered positioning block (Nylon)

4 pcs<o:p>

6<o:p>

Tool holder

3 pcs<o:p>

7<o:p>

Cutter tools

2 pcs<o:p>

8<o:p>

Other tools

1 pc<o:p>

9<o:p>

Operating manual

1 pc<o:p>



Facer tools (Optional)

Name

Boring Dia.

Facing Dia Swing Dia Feeding rate
per revolution

QTY

Facer(JRT50-D)

    <o:p>50mm

60-250mm 264mm

0.125mm

1 set  <o:p>

Bearing mounts for facer
(bearing contained)







2 sets

Tools

   <o:p>





1 pc
Cutter tools







1 pc


More products

Jierui Machine Portable Boring Machines

Item
Boring bar Diameter(MM)
Boring Diameter(mm)
Strok(mm)
Power
Feed Speed
JRT40
40*1500(customizable)
45*200
390
1.5kw
0-100(mm/min)

JRT50

 50*1500(customizable)

55*250
390
1.5kw
0-100(mm/min)
JRT60

              <o:p>         60*2000(customizable)

65*700

2.2kw
0-0.6mm/r

JRT90

90*3000(customizable)

95-900

Hydraulic/Servomotor 3KW
0-0.6mm/r

JRT110

110*3500(customizable)

180-1000

Hydraulic motor
0-0.6mm/r

JRT150

150*3500(customizable)

270-1800

Hydraulic motor
0-0.6mm/r

BB50

 50*1500 (customizable)

     55-350
400
2.2Kw electric moto
0-0.5mm/r

YK60

60*1500(customizable)

65-400
350
eibenstock  1.8KwGermany
