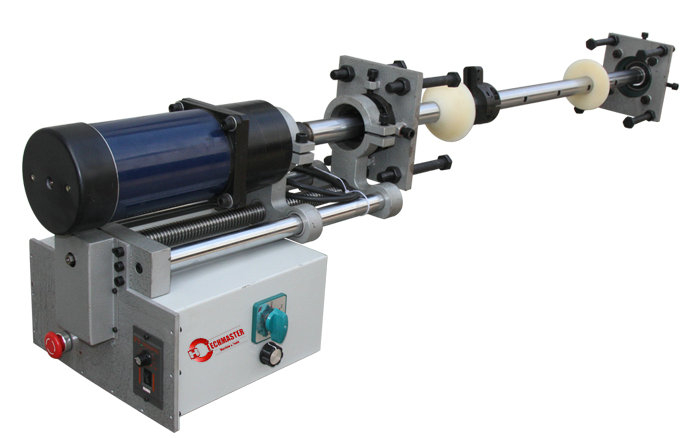

Quality Machine Tools
Modular components make setup quick and easy
Flexible and high quality design, aluminum alloy frame make the machine portable

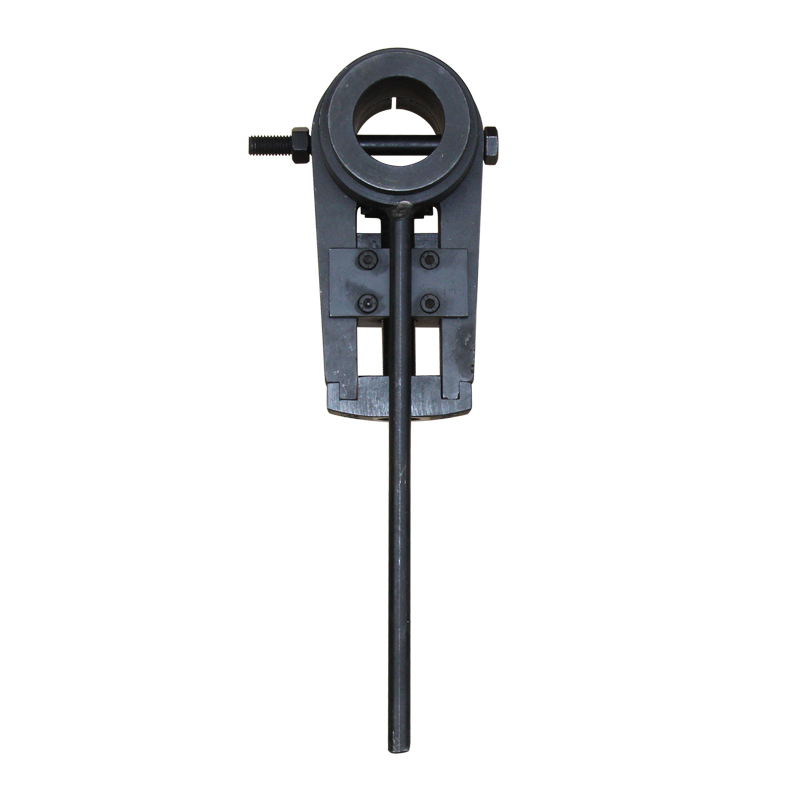

Optional facer tool make the machine more versabile

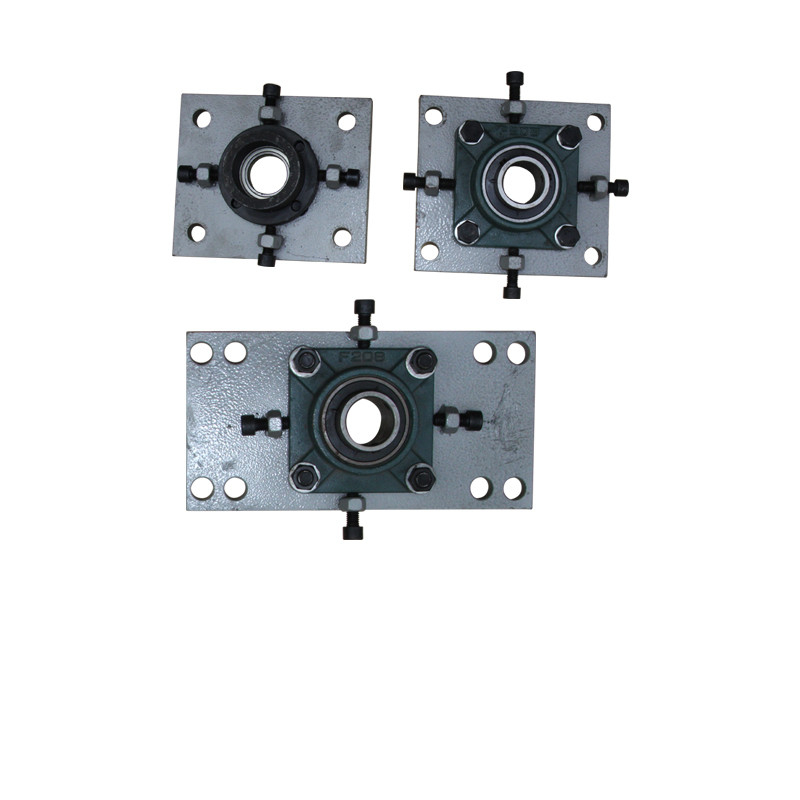

Spherical bearing mounts system allow quick setup
Gear box allow manual and automatic feed
Drive power provide by a brushless DC motor,powerful and stable
Could use on repairing the inner wall of the pipes,crane rotary holes,stern shaft holes and rudder holes and so on.
Specification | JRT40 |

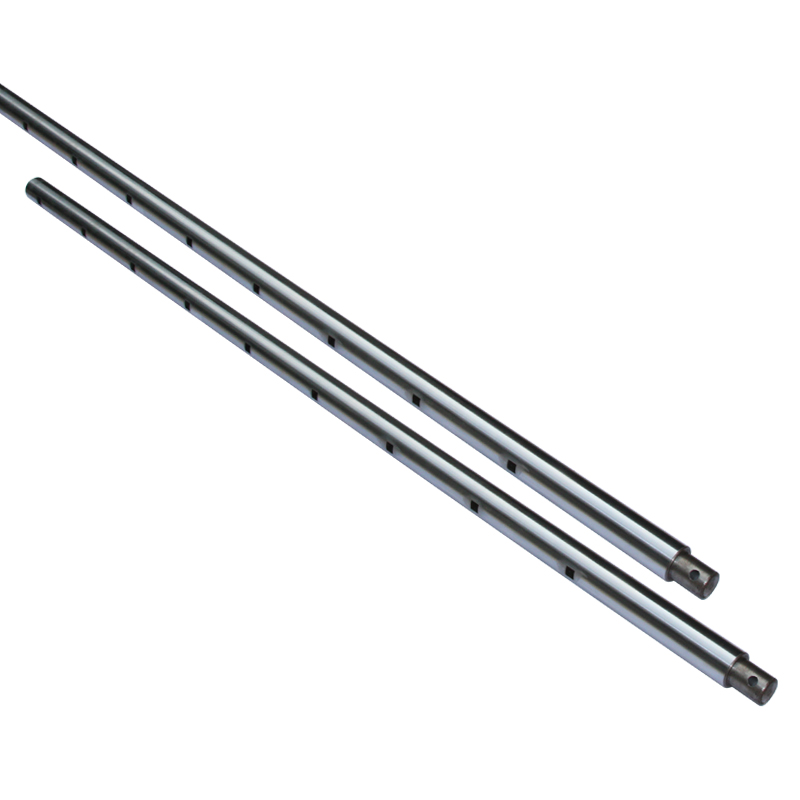

Boring bar dia.and length | dia.40X1500mm |
Boring dia.range | dia.45-200mm |
Facing dia. | dia. 50-260 |
Power unit | 1.2KW |
Boring bar rotate speed variable | 0-87rpm |
Axial feed per revolution variable | 0-0.6mm/r |
Axial feed travel | 390mm |
Machining hole face roughness | RA3.2 |
Machining hole roundness tolerance | ≤0.04mm |
