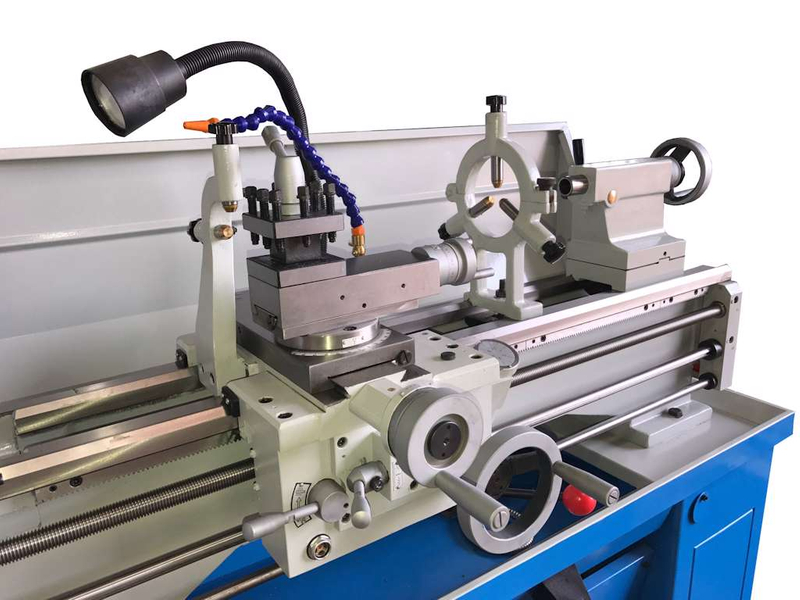

C0636N CUTTING LATHE
Quantity: -
TOKARKA UNIWERSALNA Z ODCZYTEM DLA 2 OSI 360 x 1000 mm przelot 52 mm
Distance between centers: 1000mm
Max Ø of spindle bore: 52mm
Spindle speed range: 70~2000rpm
Max swing Ø over bed: 360mm
Max swing Ø over saddle: 223mm
Travel of cross-slide: 160mm
Travel of top-slide: 95mm
Tailstock Taper: MT3
Power of main motor: 1.5kW 220V / 380V
Dimensions: 1930x900x1600mm
Gross Weight: 600kg
Standard Machine Accessories
178mm 3-jaw chuck (D5 Camlock)
4-jaw chuck (D5 Camlock)
Faceplate
Fixed Steady
Traveling Steady
Worklight
Coolant pump
Foot brake
Adjustable feed stopperDistance between centers: 1000mm
Max Ø of spindle bore: 52mm
Spindle speed range: 70~2000rpm
Max swing Ø over bed: 360mm
Max swing Ø over saddle: 223mm
Travel of cross-slide: 160mm
Travel of top-slide: 95mm
Tailstock Taper: MT3
Power of main motor: 1.5kW 220V / 380V
Dimensions: 1930x900x1600mm
Gross Weight: 600kg
Standard Machine Accessories
178mm 3-jaw chuck (D5 Camlock)
4-jaw chuck (D5 Camlock)
Faceplate
Fixed Steady
Traveling Steady
Worklight
Coolant pump
Foot brake
Adjustable feed stopper
